HOLLAND CP-730-S05745

The HOLLAND CP-730-S05745 is an extreme duty on/off-road coupler with a swivel mount housing.

Product information

The HOLLAND CP-730-S05745 is an on/off-road swivel mount coupler for use on military and extreme duty hauling equipment. Especially useful when frequent and automatic coupling is desired. The hooded guide directs the drawbar into the jaw and the jaw automatically closes and locks when the drawbar is inserted; Includes manually activated spring loaded lock-out pin to stop rotation. For severe off-road applications, reduce the capacities by 25% and use with a swivel-mount drawbar.

For maximum articulation, it is recommended to use a DB-1249-49 or DB-610-30 drawbar.

The CP-730-S05745 Coupler features:

Heat treated cast steel body for durability
Heat treated forged steel jaw for strength
Spring-loaded lock pin to stop rotation
Black Armour Corrosion Protection

Technical data

Max. Vertical Load:	20,000 lbs. (9,070 kg)
Max. Gross Trailer Wt.:	100,000 lbs. (45,360 kg)
Drawbar Eye Dimensions:	3” I.D. with 1.63” diameter section
Weight:	70 lbs. (32.7 kg)

Technologies

Black Armour® Corrosion Protection

Literature

View all

XL-PH20103SB_en-US, Technical Service Bulletin - Holland PH990 Inspection & Service Procedures

pdf / 561.31 KB

Haldex Original Parts: Aftermarket Policy and Procedure Manual

pdf / 2.25 MB

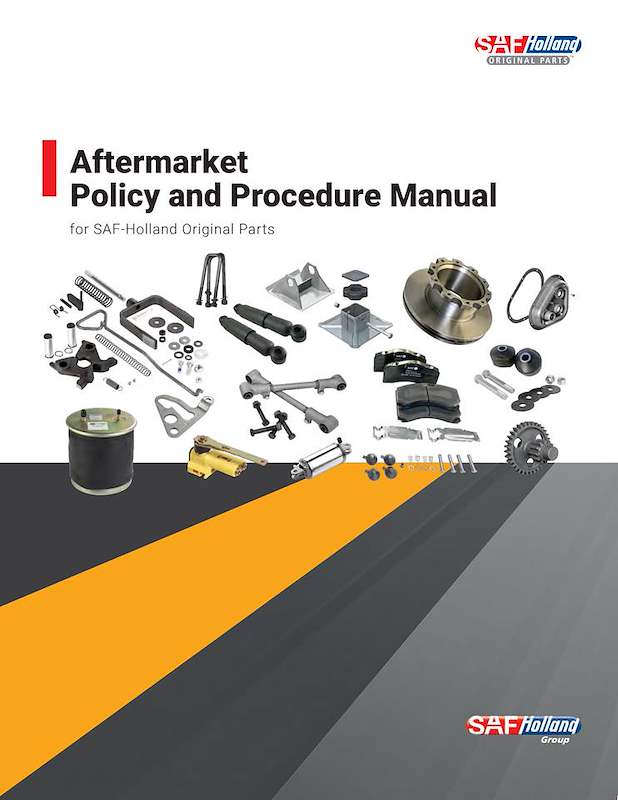

SAF-HOLLAND Original Parts: Aftermarket Policy and Procedure Manual

pdf / 1.13 MB

XL-SA20024UM-en-US Rev H, Service Manual INTEGRAL® Disc Brake Axles P89 Parallel Spindle with Precision Bearings

pdf / 11.81 MB

XL-SA20018UM-en-US Rev P, Service Manual P89 Disc Brake Axles

pdf / 11.87 MB

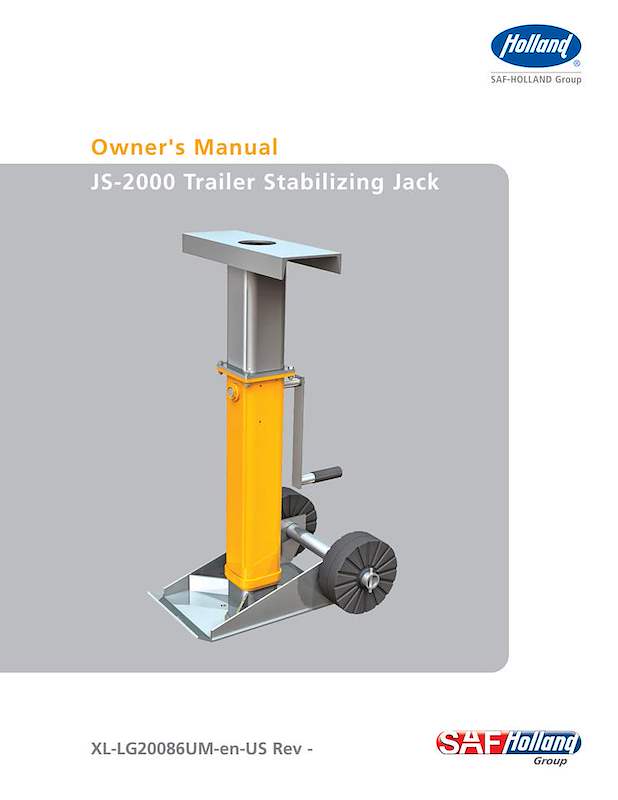

JS-2000 Trailer Stabilizing Jack Owner's Manual (XL-LG20086UM-en-US)

pdf / 3.00 MB

2025-11-19 Document Distribution Form (XL-AS20015BM-en-US).pdf

pdf / 522.91 KB

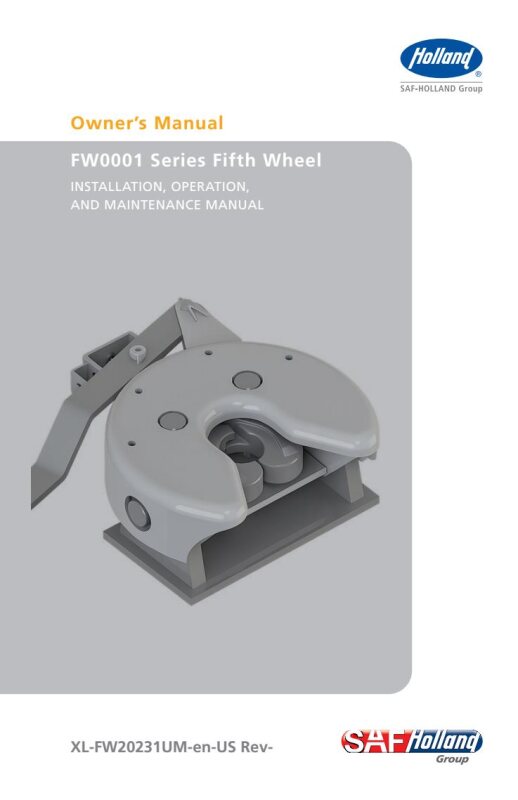

XL-FW20231UM-en-US Rev-_web.pdf

pdf / 10.25 MB

2025-11-19 Document Distribution Form (XL-AA20133BM-en-US).pdf

pdf / 522.89 KB

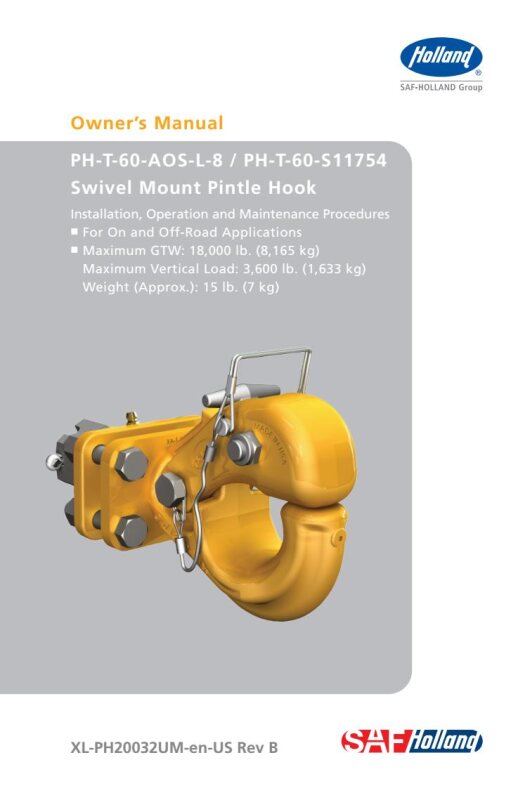

HOLLAND PH-T-60-AOS-L-8 Swivel Mount Pintle Hook Owner’s Manual

pdf / 2.86 MB

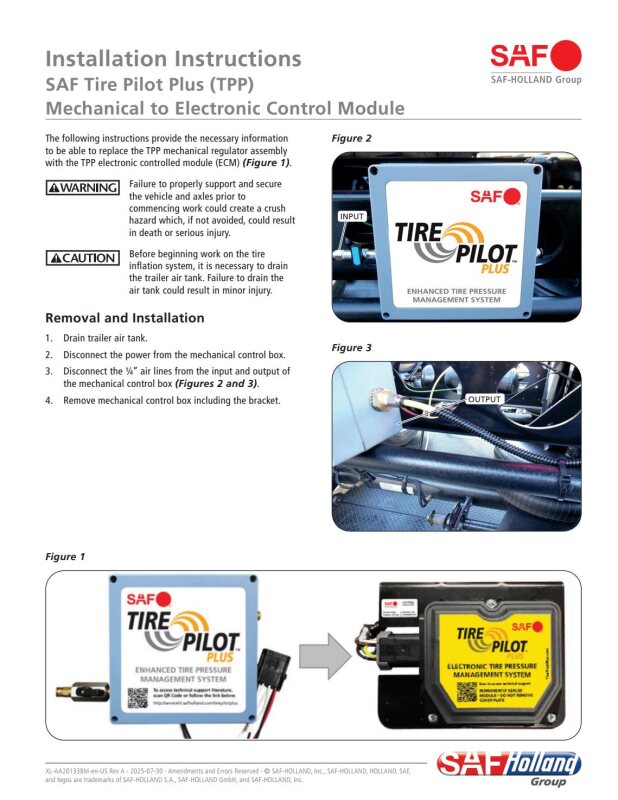

XL-AA20133BM-en-US Rev A Installation Instructions SAF Tire Pilot Plus (TPP) Mechanical to Electronic Control Module

pdf / 1.93 MB

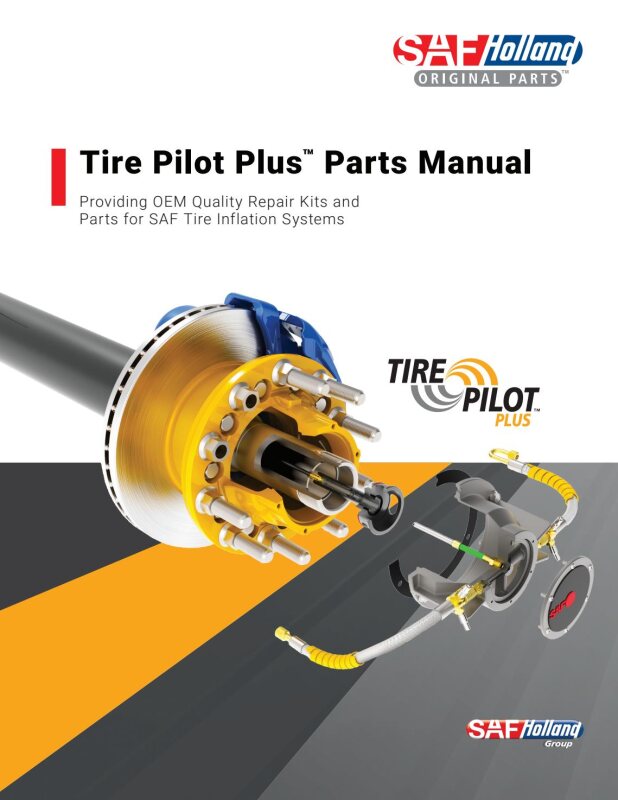

Tire Pilot Plus Parts Manual

pdf / 5.51 MB

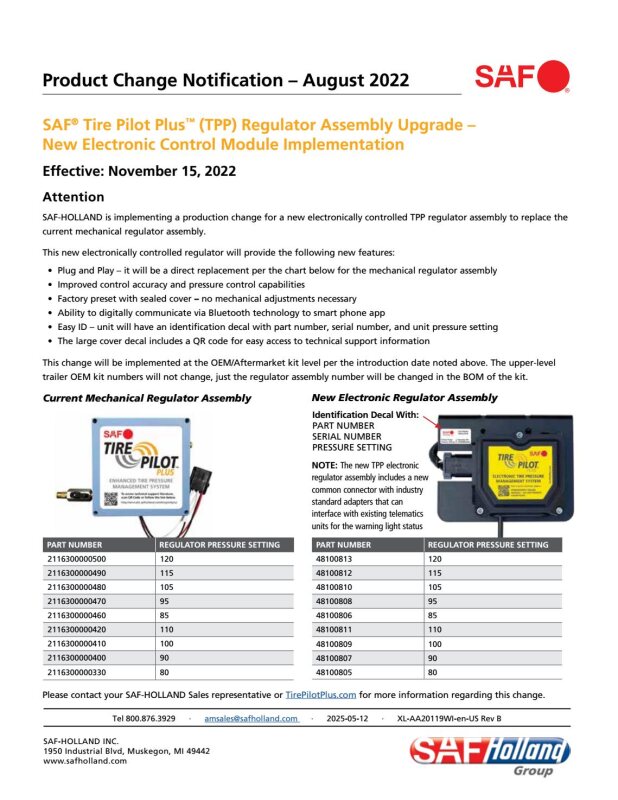

SAF Tire Pilot Plus Regulator Assembly Upgrade Bulletin

pdf / 103.61 KB

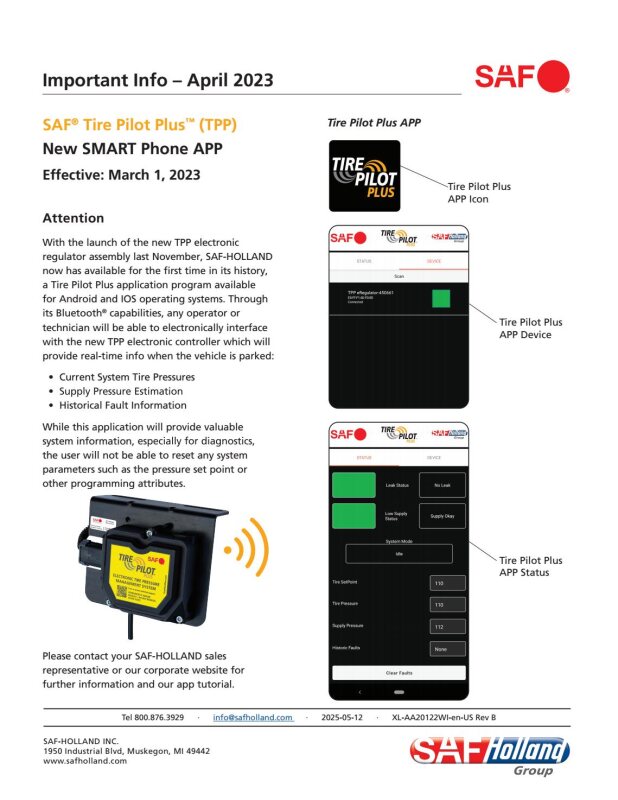

Tire Pilot Plus NEW Smartphone App Info

pdf / 4.42 MB

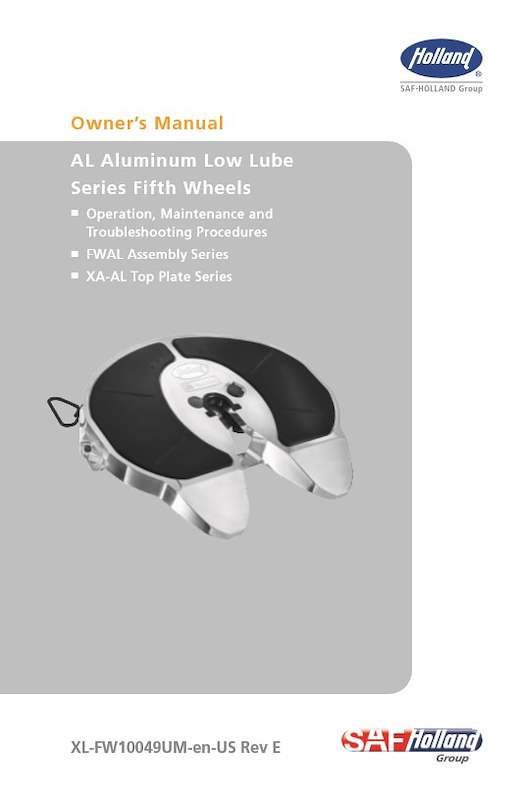

XL-FW10049UM-en-US Rev E.pdf

pdf / 2.24 MB

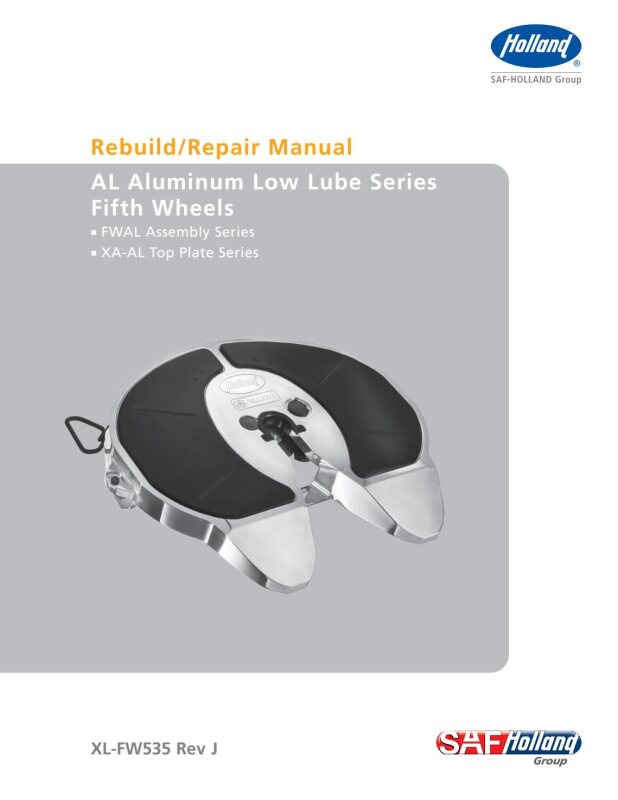

XL-FW535_RevJ.pdf

pdf / 6.45 MB

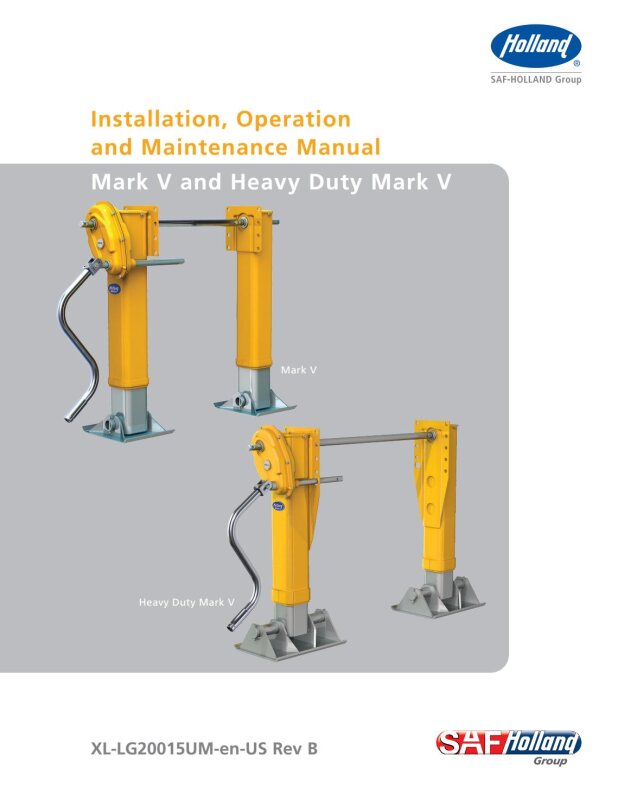

HOLLAND MARK V™ & MARK V™ HD Installation, Operation and Maintenance Manual

pdf / 4.38 MB

HOLLAND ATLAS Series Installation, Operation and Maintenance Manual

pdf / 2.59 MB

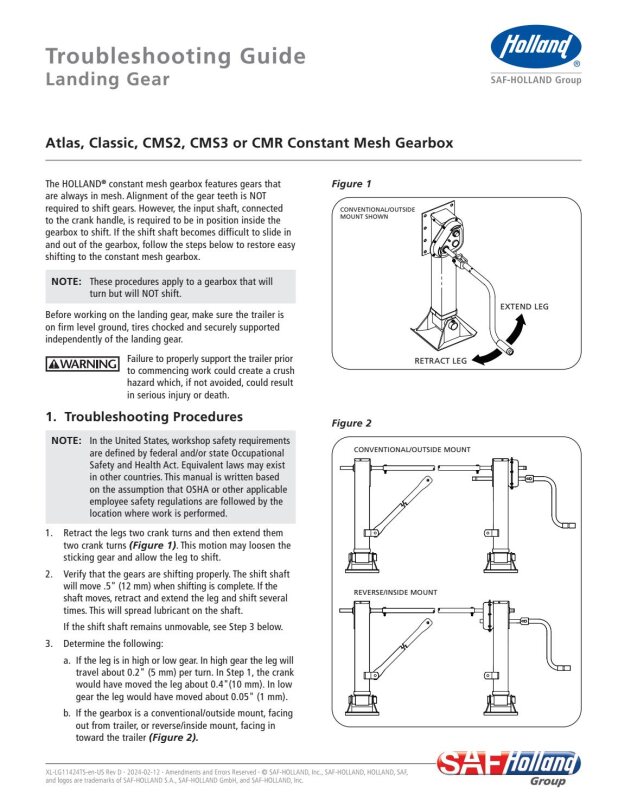

HOLLAND ATLAS, CLASSIC, CMS2, CMS3 & CMR Landing Gear Constant Mesh Gearbox Troubleshooting Guide

pdf / 533.50 KB

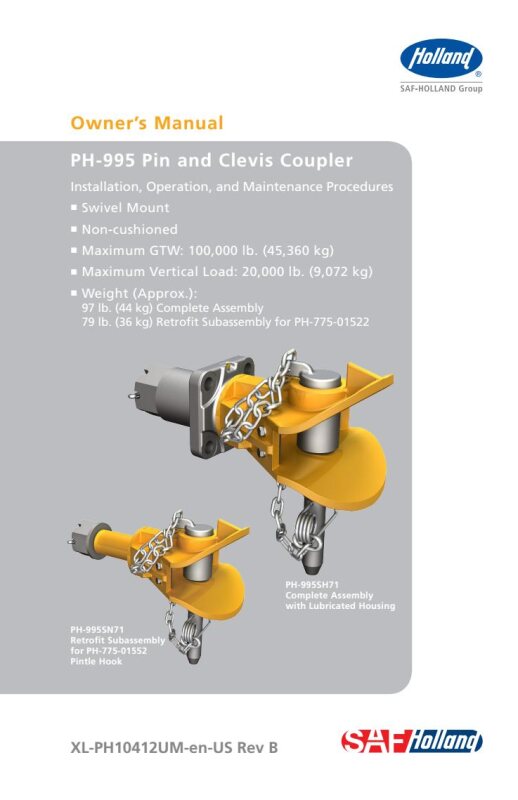

PH-995 Pin and Clevis Coupler Owner’s Manual

pdf / 2.83 MB

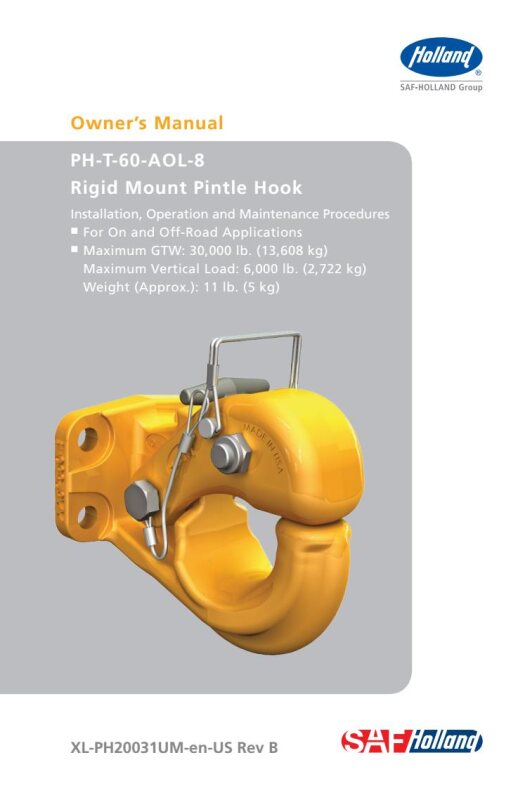

HOLLAND PH-T-60-AOL-8 Rigid Mount Pintle Hook Owner’s Manual

pdf / 1.58 MB

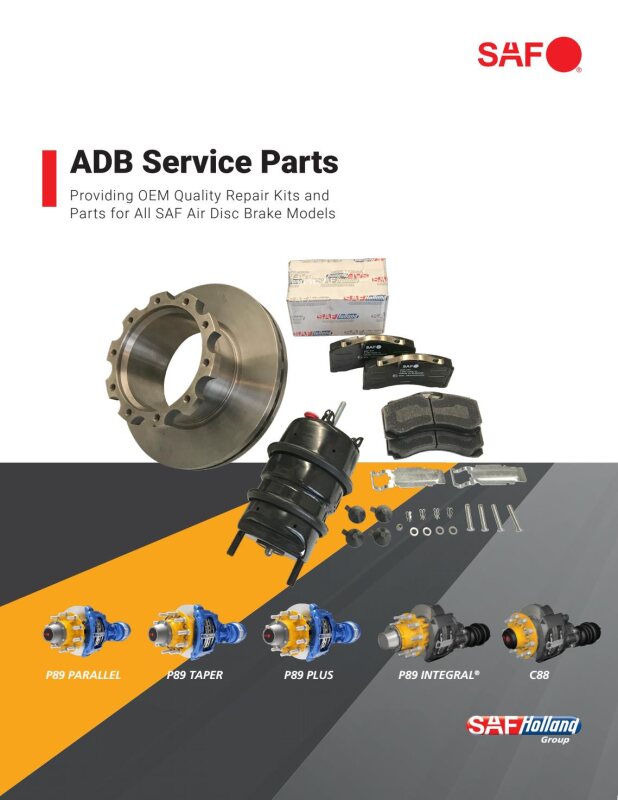

SAF Air Disc Brake Service Parts Manual

pdf / 6.14 MB

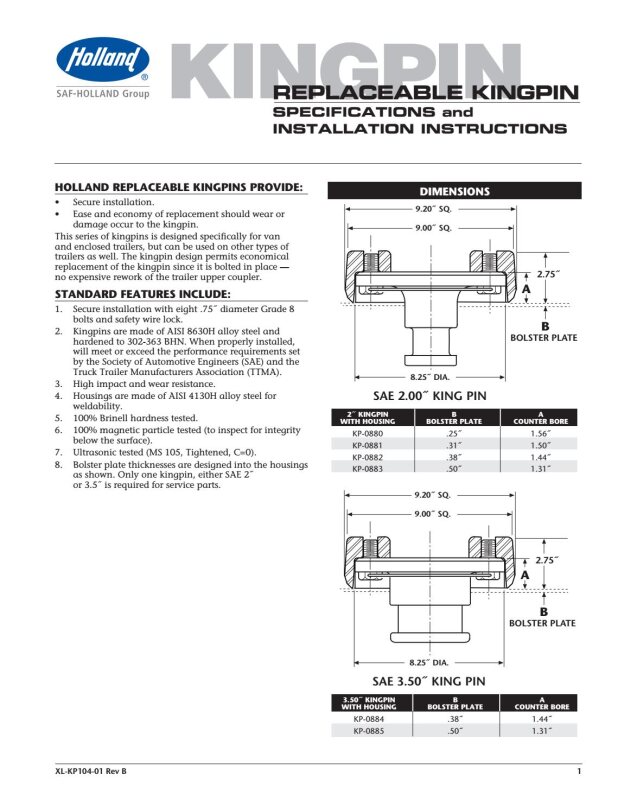

Replaceable Kingpin Specifications and Installation Instructions

pdf / 776.06 KB

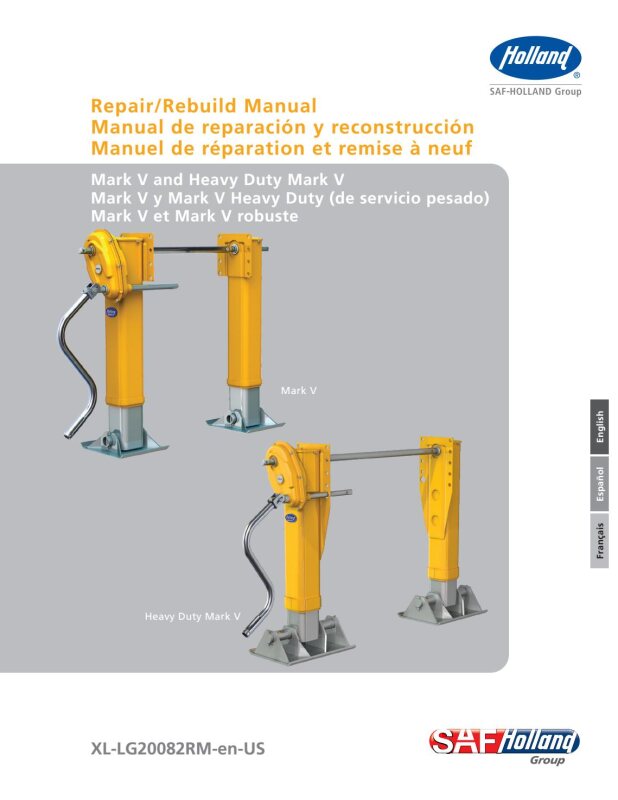

XL-LG20082RM-en-US_web.pdf

pdf / 7.01 MB

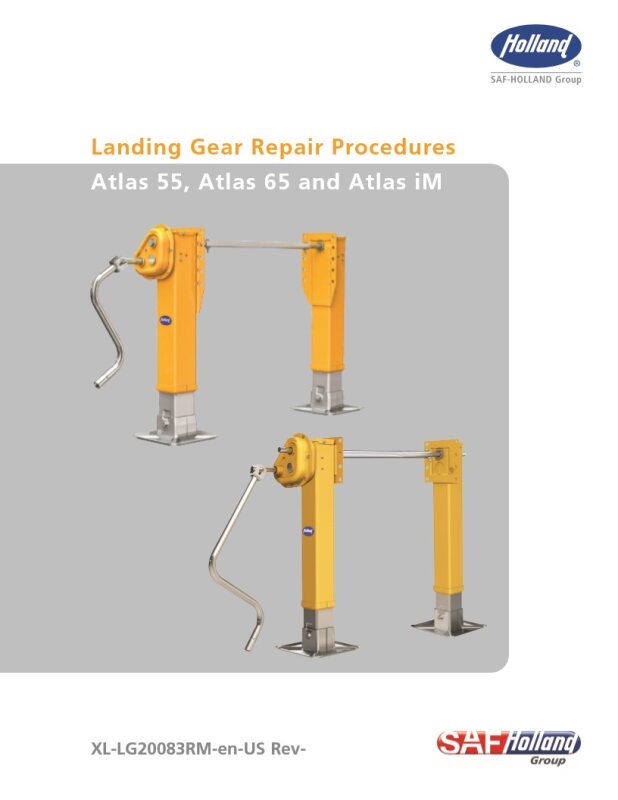

Landing Gear Repair Procedures Atlas 55, Atlas 65 and Atlas iM

pdf / 3.32 MB

Repair/Rebuild Manual - Repair/Rebuild Manual

pdf / 7.03 MB

HOLLAND FW35 Owner's Manual

pdf / 14.87 MB

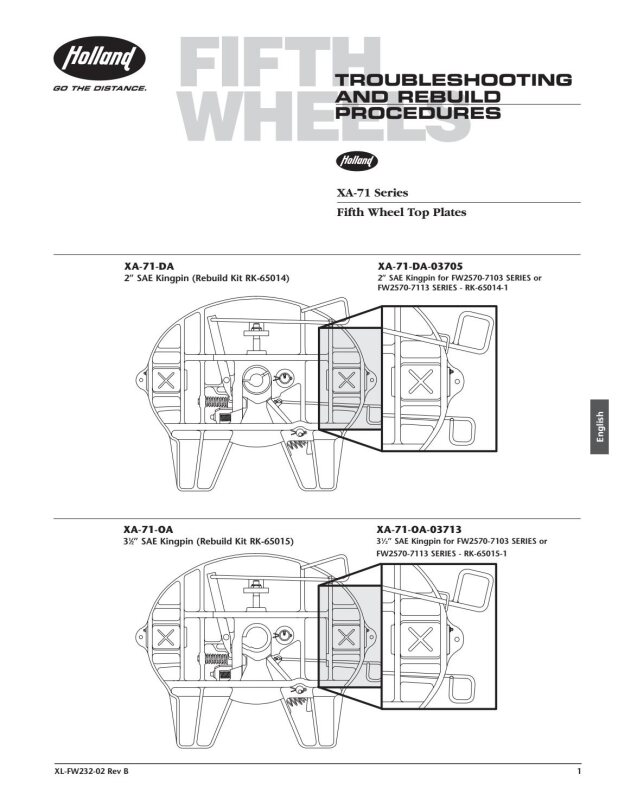

XL-FW232-02

pdf / 3.41 MB

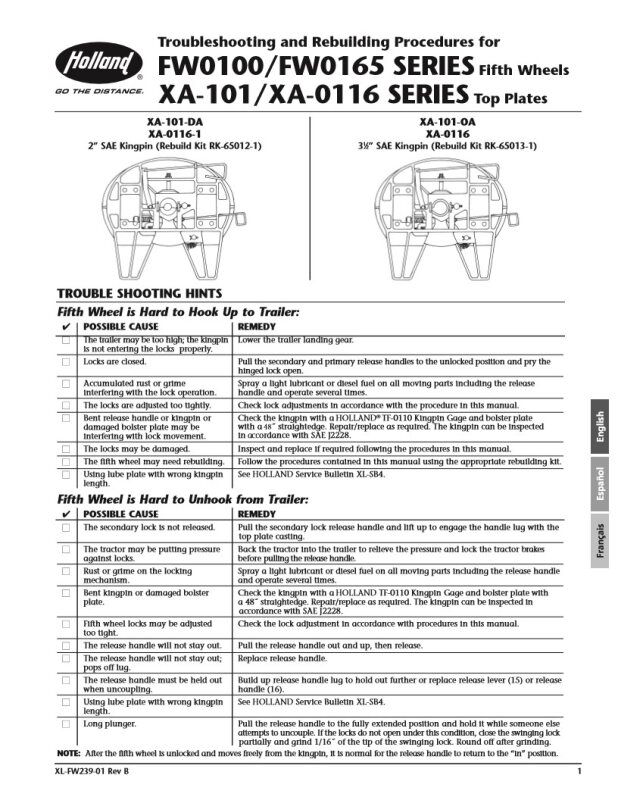

Holland FW0100/FW0165 Rebuild Procedures

pdf / 5.36 MB

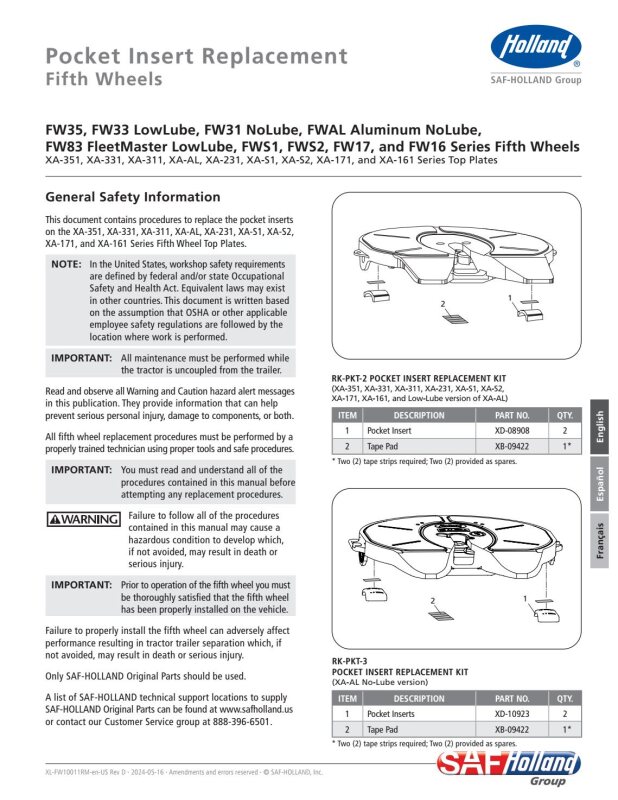

Holland Fifth Wheels - Pocket Insert Replacement Instructions

pdf / 1.41 MB

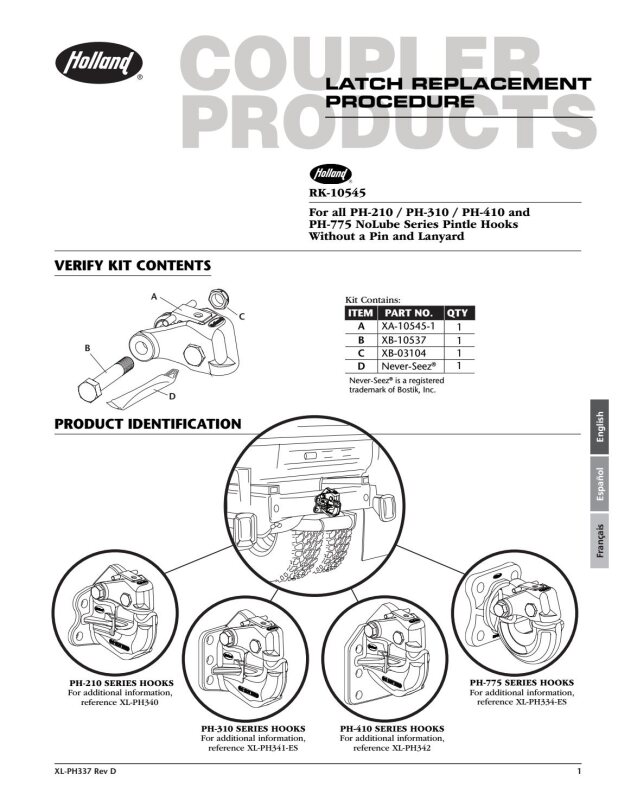

Holland Pintle Hooks - RK10545 Latch Replacement Procedures

pdf / 3.45 MB

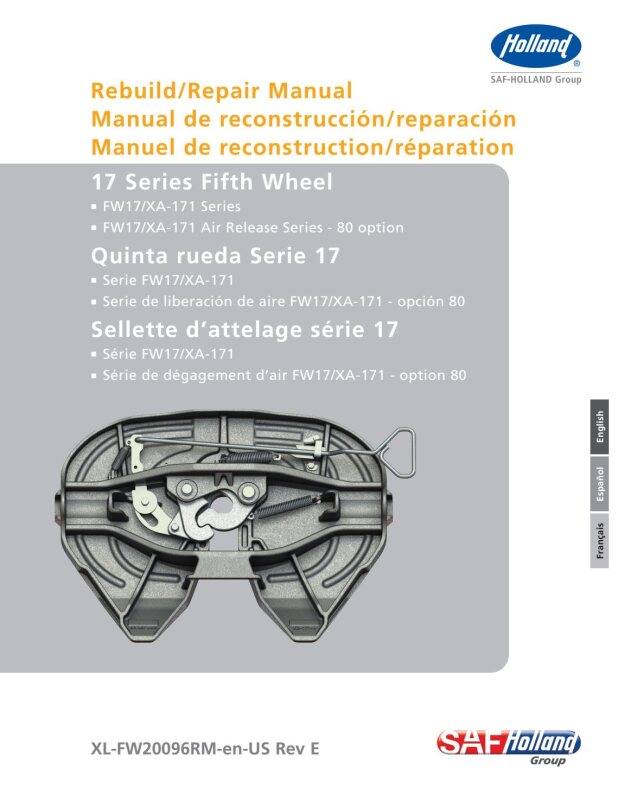

Holland FW17 Series Rebuild Manual

pdf / 8.69 MB

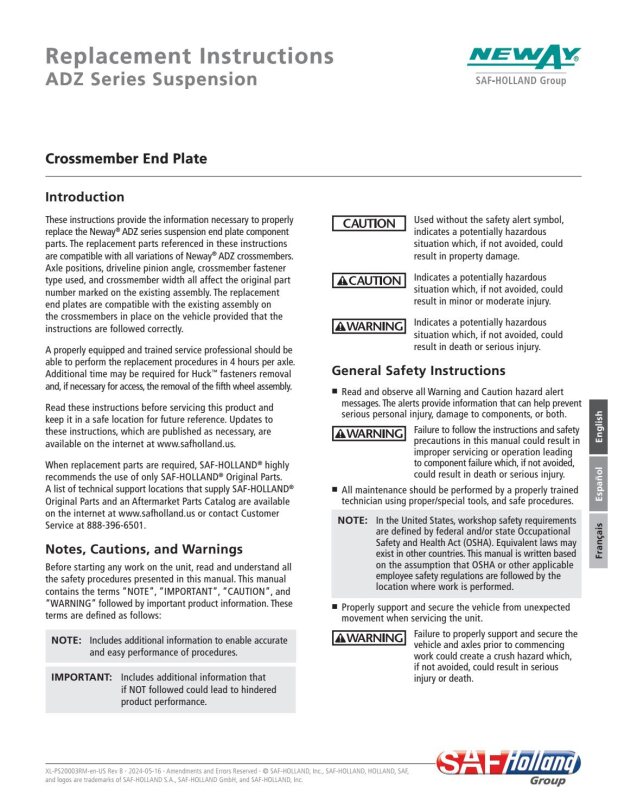

XL-PS20003RM-en-US Rev B.pdf

pdf / 11.55 MB

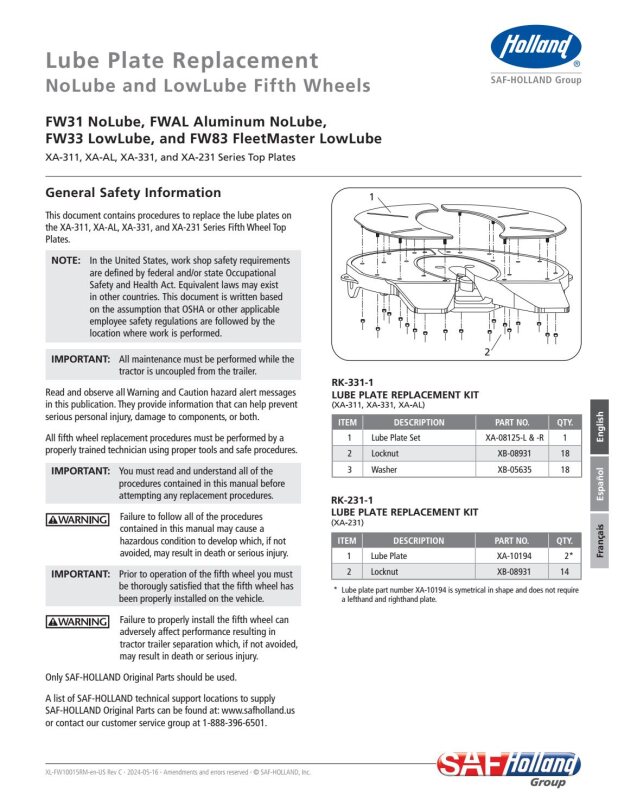

Holland Fifth Wheels - Lube Plate Replacement Instructions

pdf / 1.02 MB

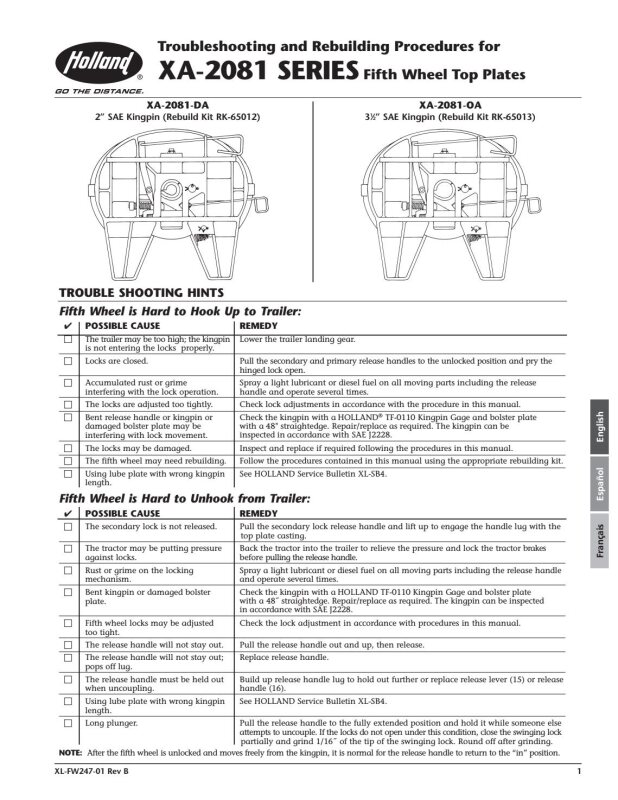

Holland XA-2081 Series Rebuild Procedures

pdf / 4.82 MB

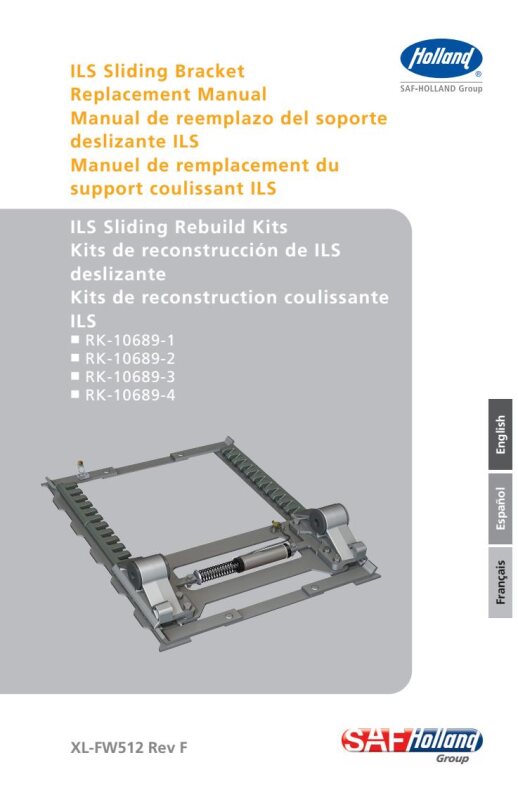

Holland ILS Bracket Replacement Manual

pdf / 1.64 MB

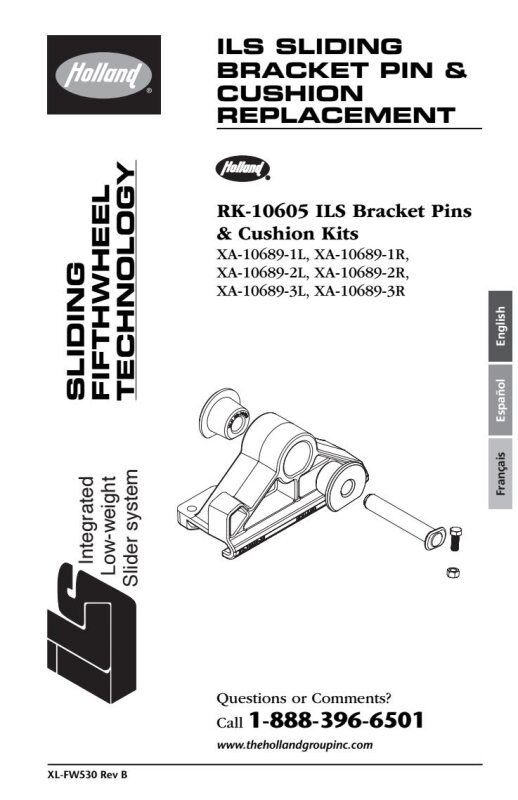

Holland ILS Bracket Pins & Cushions Replacement

pdf / 2.64 MB

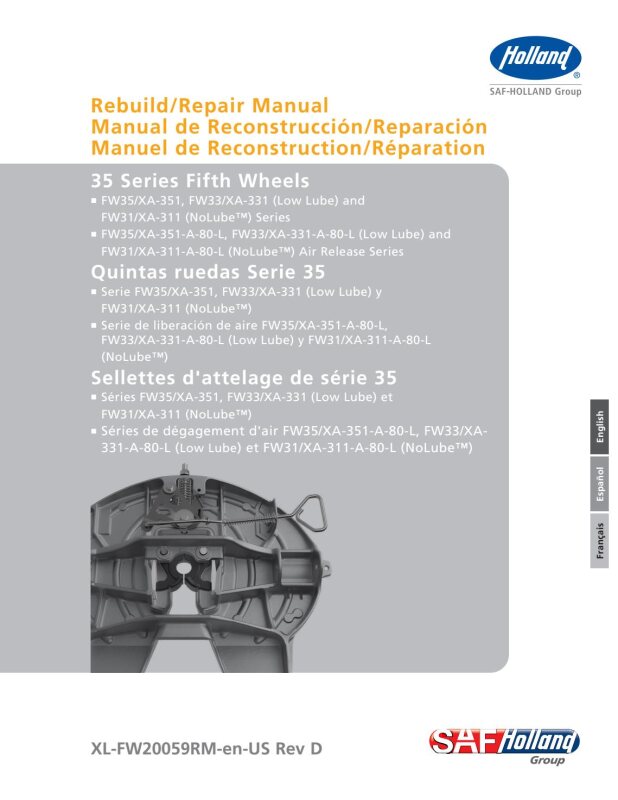

Holland FW35 Series Rebuild Manual

pdf / 14.92 MB

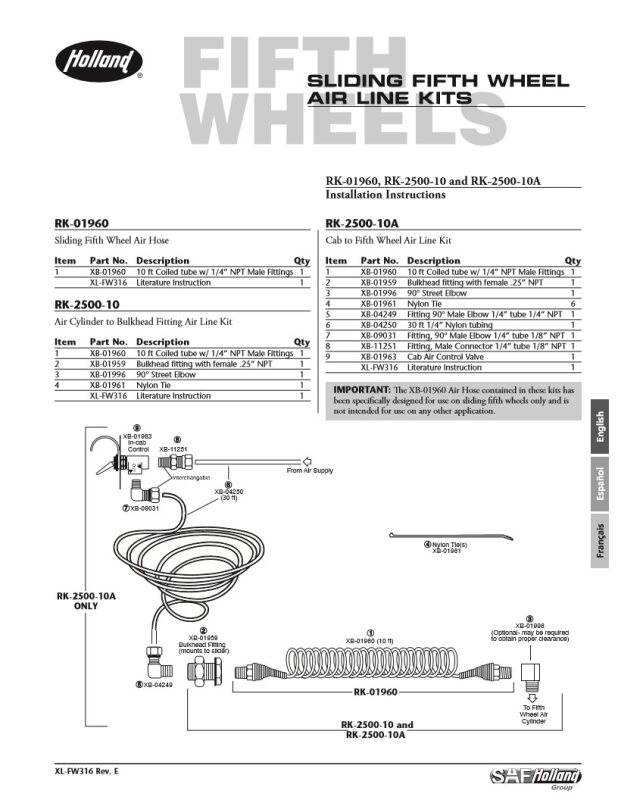

Holland Fifth Wheel Slider Air Line Kit Instructions

pdf / 2.95 MB

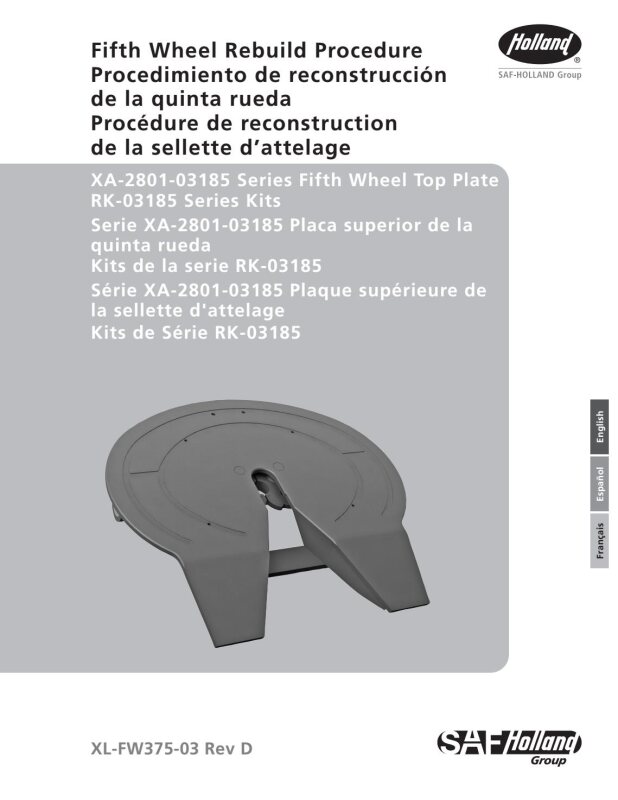

Holland XA-2801-03185 Rebuild Procedures

pdf / 2.75 MB

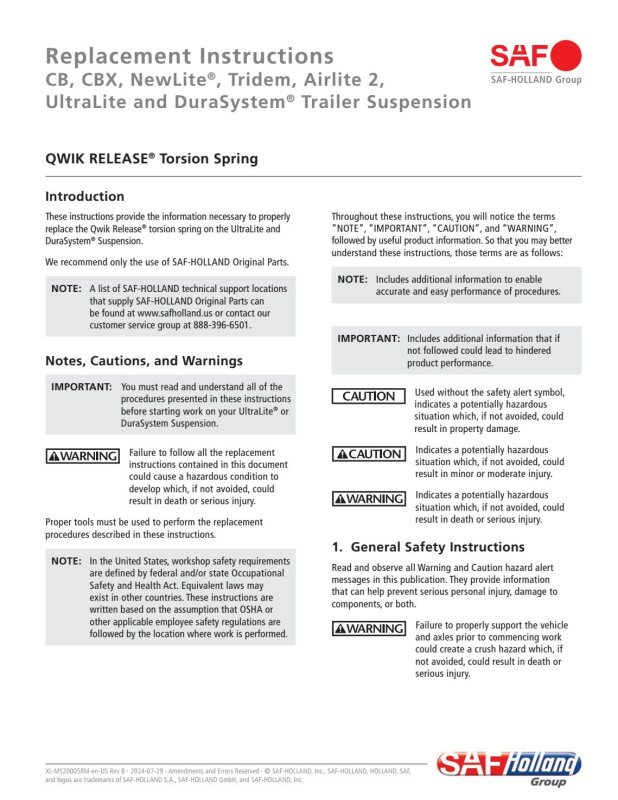

XL-MS20005RM-en-US_RevB_web.pdf

pdf / 678.50 KB

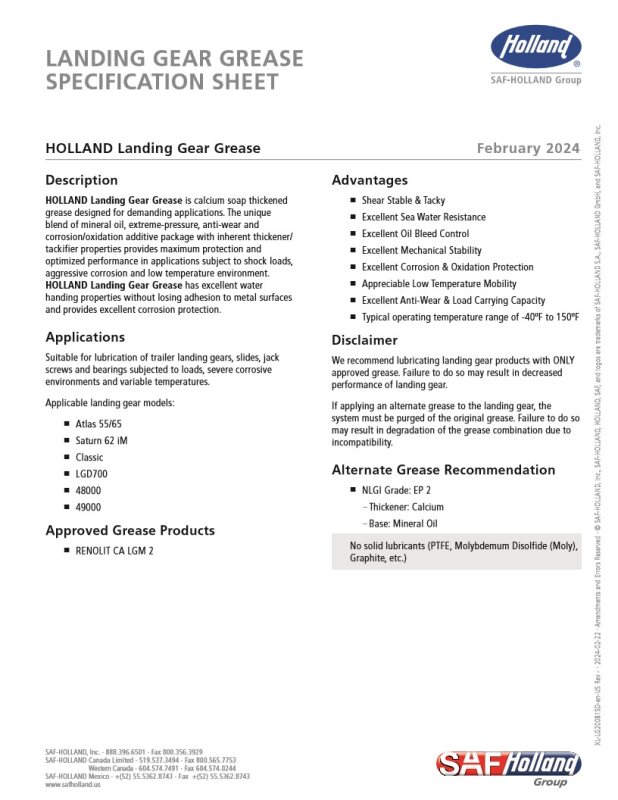

Landing Gear Grease Specification Sheet

pdf / 1.06 MB

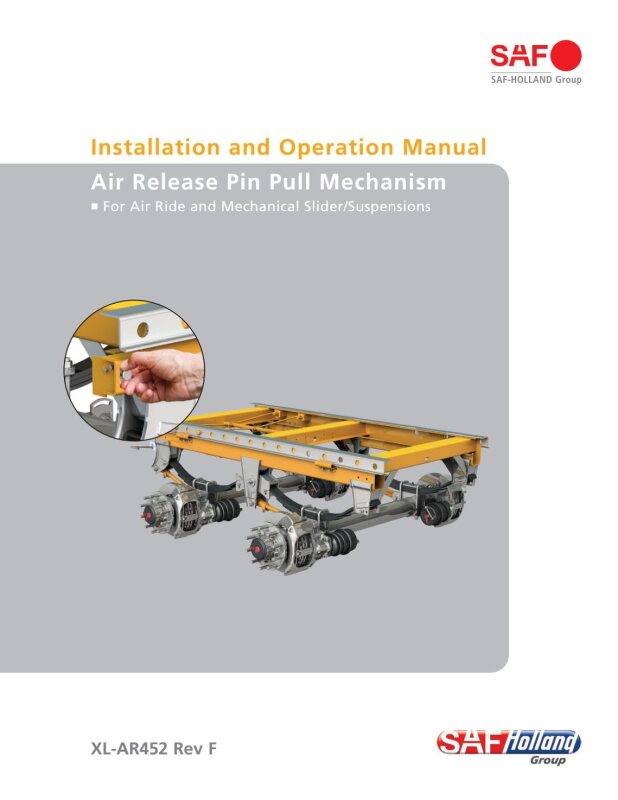

Air Release Pin Pull Mechanism Installation and Operation Manual

pdf / 1.55 MB

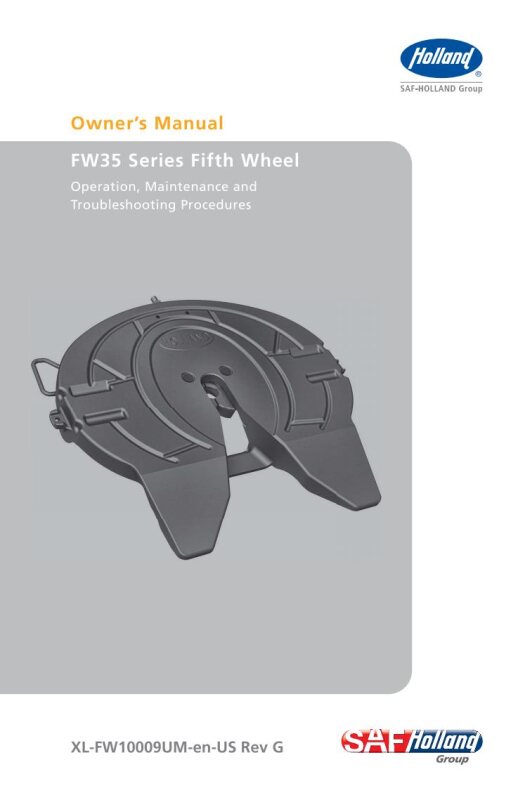

FW35 Series Fifth Wheel Owner's Manual (XL-FW10009UM-en-US_RevG)

pdf / 14.87 MB

XL-AA20132BM-en-US

pdf / 2.76 MB

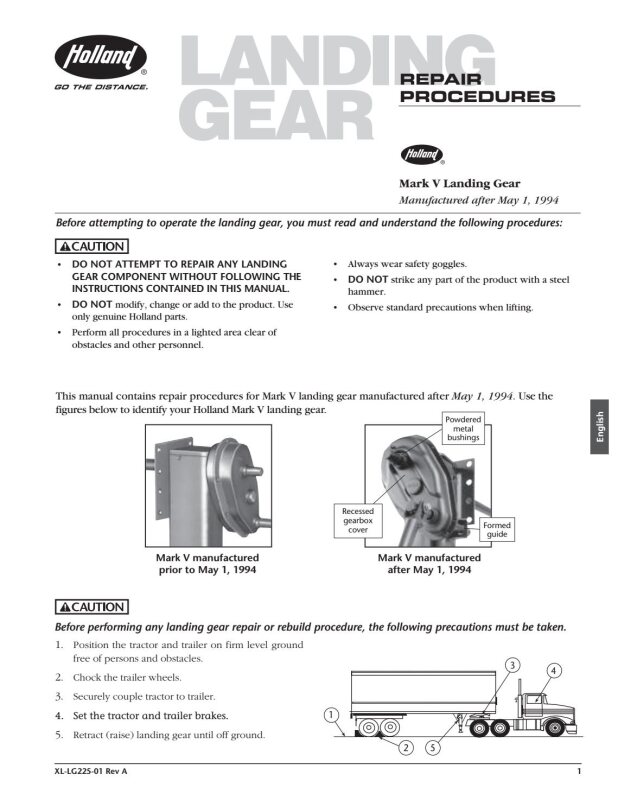

HOLLAND MARK V Landing Gear Repair Procedures

pdf / 1.88 MB

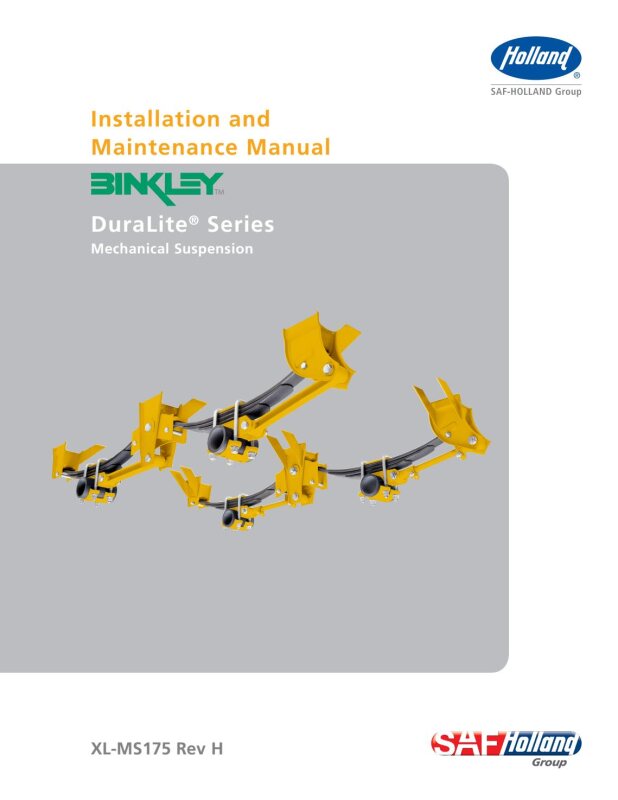

DuraLite Installation and Maintenance Manual

pdf / 1.50 MB

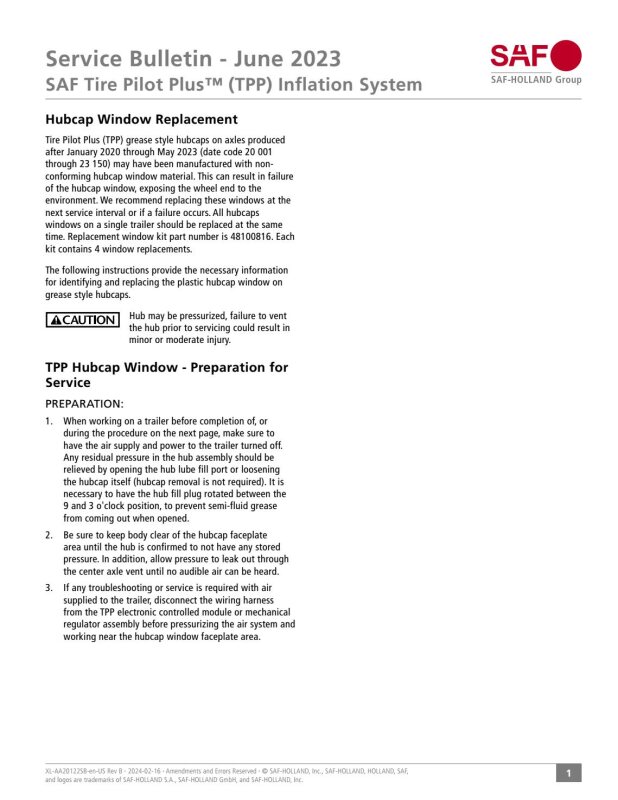

SAF Tire Pilot Plus Hubcap Window Replacement

pdf / 2.17 MB

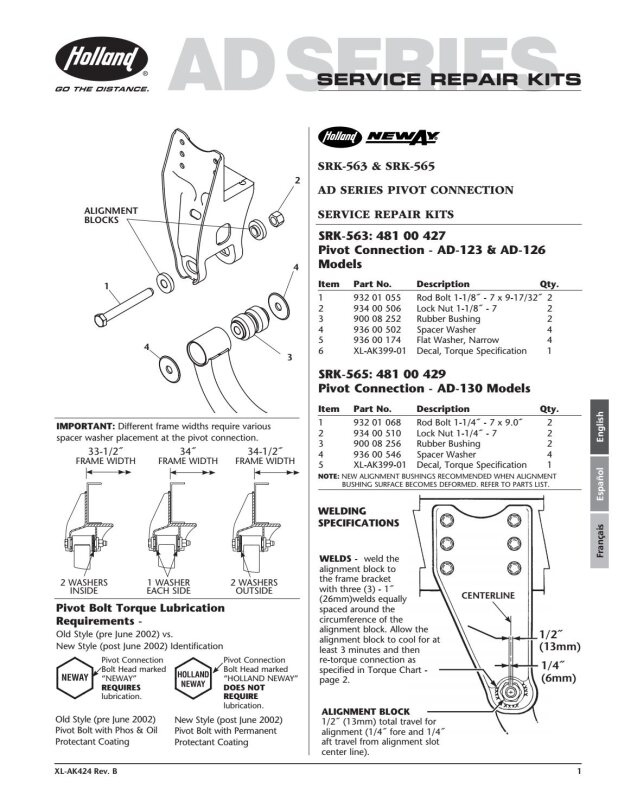

XL-AK424 Rev B.pdf

pdf / 456.83 KB

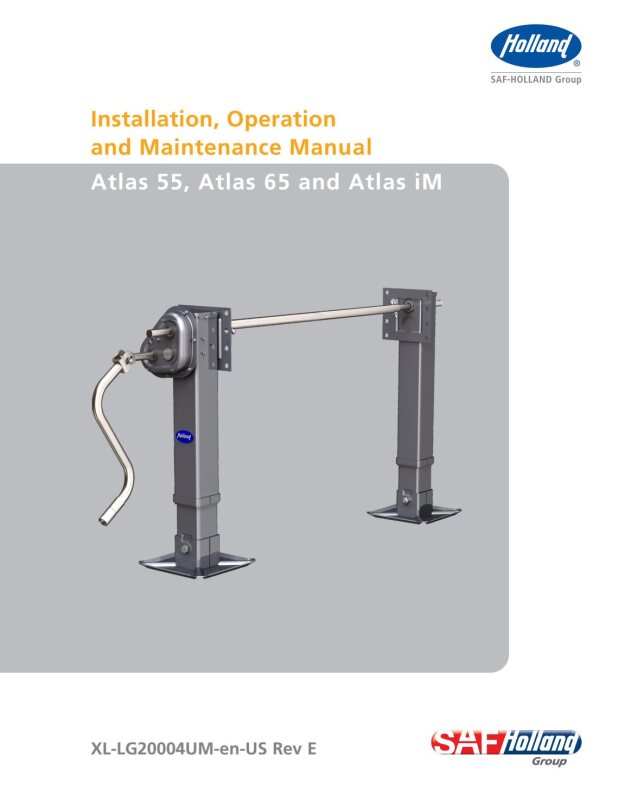

Installation, Operation and Maintenance Manual - Atlas 55, Atlas 65 and Atlas iM
