HOLLAND DB-045BW1

The HOLLAND DB-045BW1 Drawbar is a weld-on swivel drawbar designed for trailer and semi-double trailers towing applications.

Technical data





Max. Vertical Load: 9,000 lbs. (4,082 kg)
Max. Gross Trailer Weight: 45,000 lbs. (20,411 kg)
Drawbar Eye Dimensions: 2.38” with 1.63” diameter section
Weight: 38 lbs. (17.2 kg)



Product information

The HOLLAND DB-045BW1 Weld-On Swivel Drawbar is used on straight tongue or hinged tongue trailers, semi-double trailers. Approved for on/off-road towing applications. For severe off-road applications, reduce published capacities by 25% and use with rigid-mount coupling.

The DB-045BW1 Drawbar features:

  • Forged, heat treated one-piece steel
  • Eye I.D. induction hardened for wear resistance
  • Tested in accordance with SAE J847
  • Robust steel block sleeve with grease fitting
  • Black Armour Corrosion Protection

Technologies

Black Armour® Corrosion Protection Learn more
Black Armour® Corrosion Protection Learn more

Literature

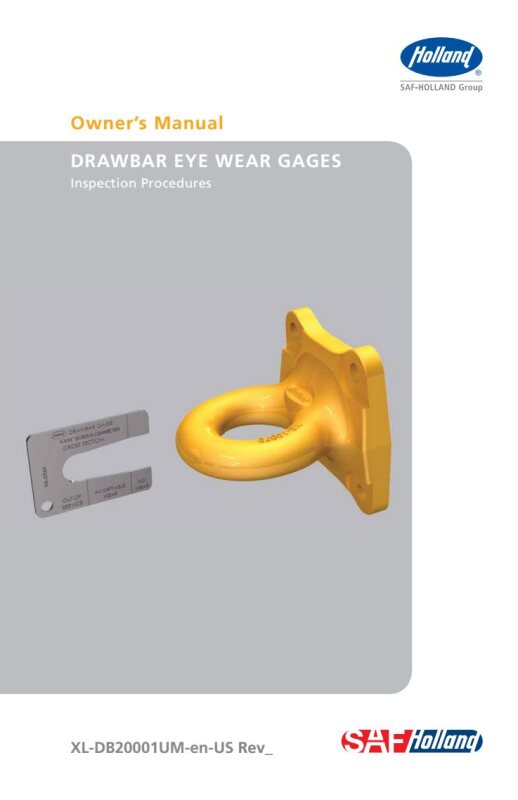

Drawbar Gauge Owner's Manual
PDF / 928.61 KB

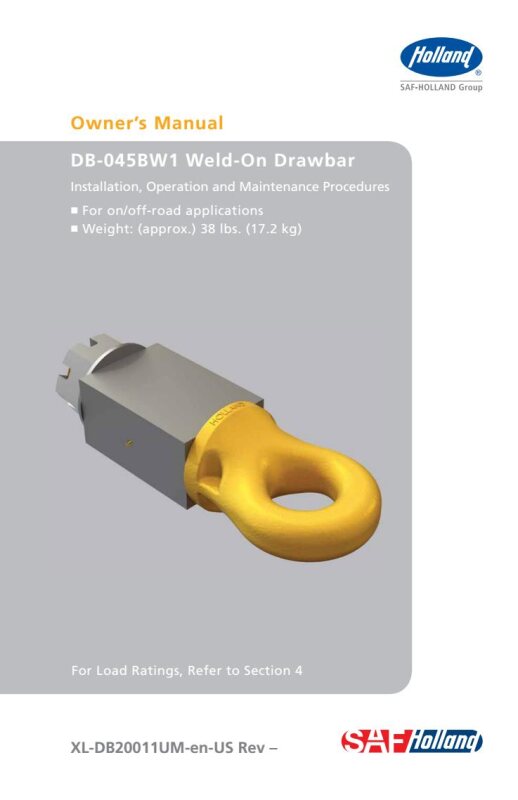

DB-045BW1 Owners Manual
PDF / 338.23 KB
Holland Couplings - Pintle Hooks and Drawbars
PDF / 6.29 MB
HOLLAND Coupling Products Warranty US & Canada
PDF / 96.35 KB
HOLLAND Coupling Products Selection Guide
PDF / 16.39 MB
