HOLLAND DB-060FQ1

The HOLLAND DB-060FQ1 Rigid-Mount Bolt-On Drawbar is designed for trailer and semi-double trailers towing applications; 40k, 60k and 100k models available.

Technical data





Max. Vertical Load: 15,000 lbs. (6,804 kg)
Max. Gross Trailer Weight: 60,000 lbs. (27,216 kg)
Drawbar Eye Dimensions: 3” I.D. with 1.63” diameter section
Weight: 19 lbs. (8.6 kg)



Product information

The HOLLAND DB-060FQ1 Rigid-Mount Bolt-On Drawbar is used on trailers, semi-double trailers. Approved for on/off-road towing applications. For severe off-road applications, reduce published capacities by 25% and use with swivel-mount coupling.

The DB-060FQ1 Drawbar features:

  • Forged, heat treated one-piece steel
  • Eye I.D. induction hardened for wear resistance
  • 2.5” Eye I.D. model available with 40,000 lbs. rating (DB-040DQ1)
  • 3” Eye I.D. model available with 100,000 lbs. rating (DB-100FQ1)
  • Tested in accordance with SAE J847
  • Black Armour Corrosion Protection

Recommended use

Technologies

Black Armour® Corrosion Protection Learn more
Black Armour® Corrosion Protection Learn more

Literature

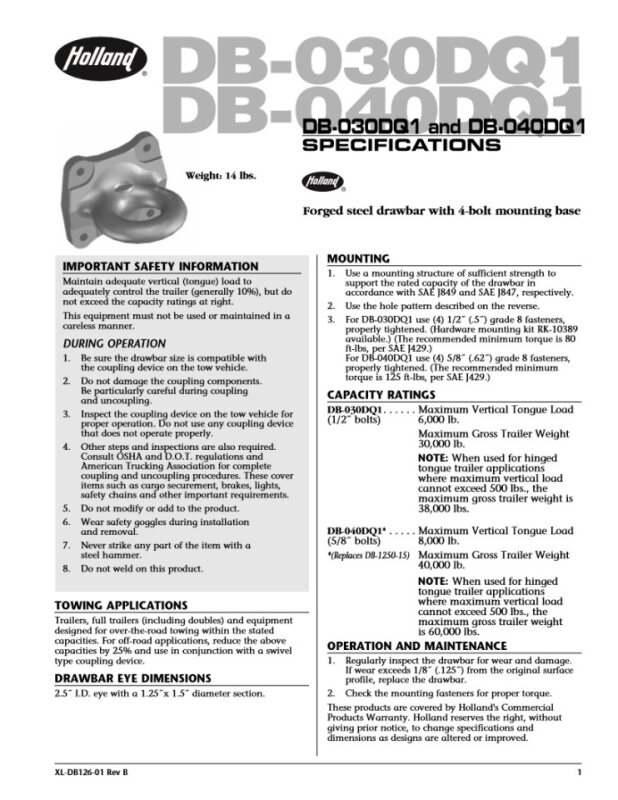

Owners Manual / DB-040DQ1, DB-060FQ1, DB-100FQ1
PDF / 484.33 KB
Drawbar Gauge Owner's Manual
PDF / 928.61 KB
HOLLAND Coupling Products Warranty US & Canada
PDF / 96.35 KB
Pintle Hook Drawbar Special
PDF / 334.98 KB
HOLLAND Coupling Products Selection Guide
PDF / 16.39 MB
