HOLLAND DB-1400

The HOLLAND DB-1400 Weld-On Rigid Drawbar is designed for trailer and semi-double trailers towing applications.

Technical data





Max. Vertical Load: 18,000 lbs. (8,164 kg)
Max. Gross Trailer Weight: 90,000 lbs. (40,823 kg)
Drawbar Eye Dimensions: 2.38” I.D. with 1.63” diameter section
Weight: 14 lbs. (6.35 kg)



Product information

The HOLLAND DB-1400 Weld-On Rigid Drawbar is used on straight tongue or hinged tongue trailers, semi-double trailers. Approved for on/off-road towing applications. For severe off-road applications, reduce published capacities by 25% and use with swivel-mount coupling.

The DB-1400 Drawbar features:

  • Forged, heat treated one-piece steel
  • Eye I.D. induction hardened for wear resistance
  • Tested in accordance with SAE J847
  • Black Armour Corrosion Protection

Technologies

Black Armour® Corrosion Protection Learn more
Black Armour® Corrosion Protection Learn more

Literature

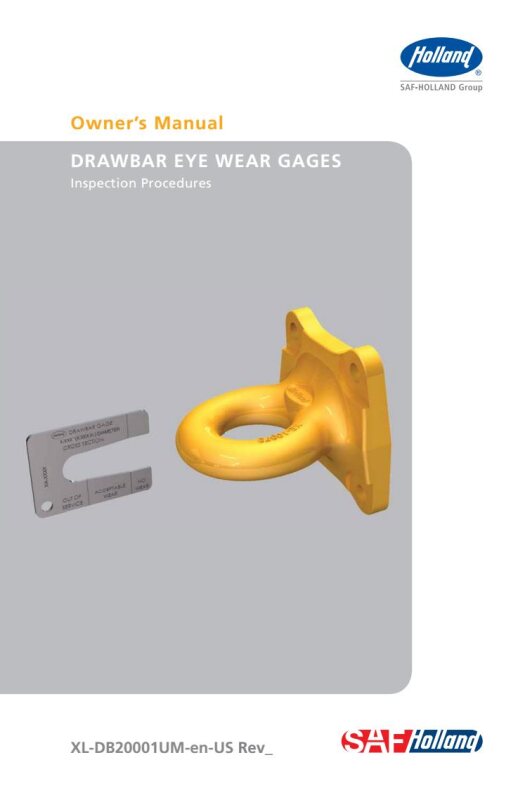

Drawbar Gauge Owner's Manual
PDF / 928.61 KB
HOLLAND Coupling Products Warranty US & Canada
PDF / 96.35 KB
HOLLAND Coupling Products Selection Guide
PDF / 16.39 MB
