HOLLAND DB-1407

The HOLLAND DB-1407 Bolt-On Swivel Drawbar is designed for trailer and semi-double trailers towing applications.

Technical data





Max. Vertical Load: 16,000 lbs. (7,258 kg)
Max. Gross Trailer Weight: 85,000 lbs. (38,556 kg)
Drawbar Eye Dimensions: 2.38” I.D. with 1.56” diameter section
Weight: 24 lbs. (10.9 kg)



Product information

The HOLLAND DB-1407 Bolt-On Swivel Drawbar is used on trailers, semi-double trailers. Approved for on/off-road applications. For severe off-road applications, reduce the published capacities by 25% and use with a rigid-mount coupling.

The DB-1407 Drawbar features:

  • Forged, heat treated one piece steel
  • Eye I.D. induction hardened for wear resistance
  • Tested in accordance with SAE J847
  • Three shaft lengths available
  • Black Armour Corrosion Protection

Technologies

Black Armour® Corrosion Protection Learn more
Black Armour® Corrosion Protection Learn more

Literature

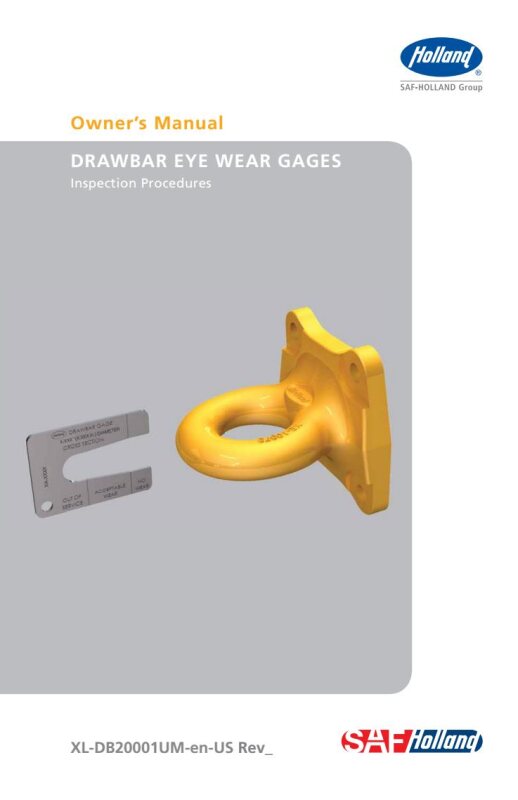

Drawbar Gauge Owner's Manual
PDF / 928.61 KB

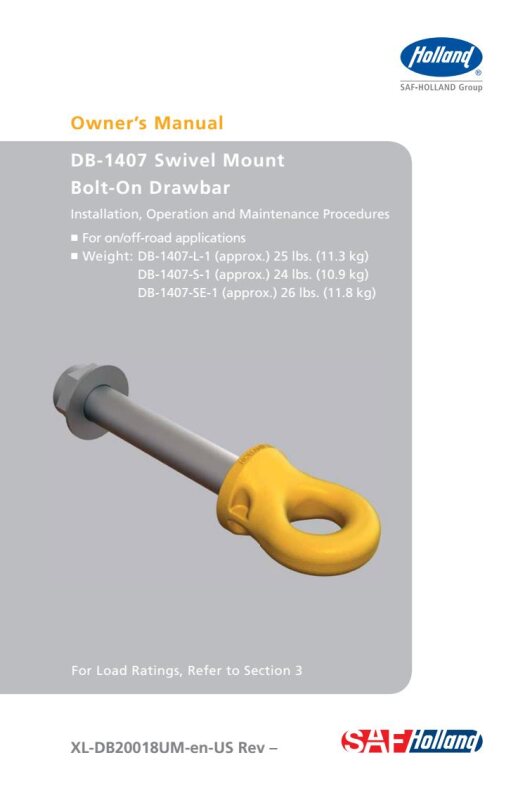

Owners Manual - DB-1407 Bolt On
PDF / 344.61 KB

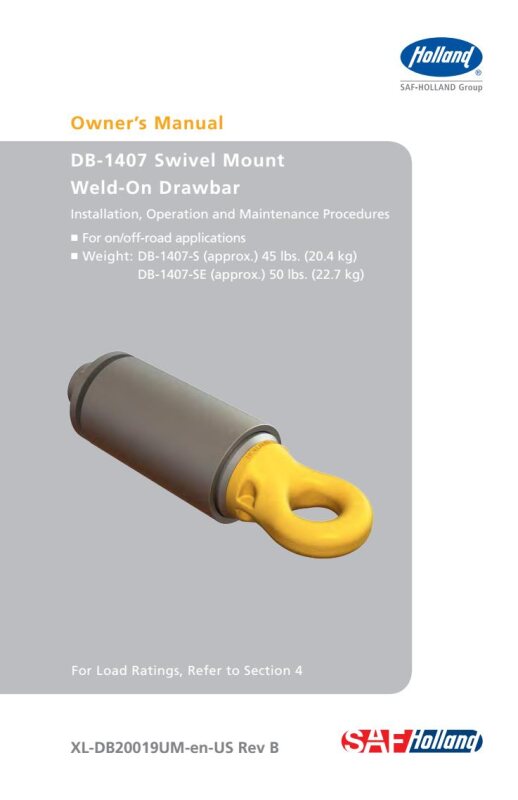

Owner's Manual - DB-1407 Swivel Mount Weld-On Drawbar
PDF / 1.30 MB
HOLLAND Coupling Products Warranty US & Canada
PDF / 96.35 KB
HOLLAND Coupling Products Selection Guide
PDF / 16.39 MB
