HOLLAND PH-T-60-AOL-8

The HOLLAND PH-T-60-AOL-8 Rigid Mount Pintle Hook is designed for medium duty on/off-road towing applications.

Technical data





Max. Vertical Load: 6,000 lbs. (2,720 kg)
Max. Gross Trailer Weight: 30,000 lbs. (13,610 kg)
Drawbar Eye Dimensions: 2” - 3” (50.8 - 76.2 mm)  I.D. with 1.25” - 1.63” (31.7 - 41,4 mm) diameter section
ADR D-Value Rating: 35 kN (CRN 26465)
Weight: 11 lbs. (5 kg)



Product information

The HOLLAND PH-T-60-AOL-8 Pintle Hook was specifically designed for medium duty on/off-road towing applications. For off-road applications, reduce the maximum capacities by 25% and use with a swivel-mount drawbar.

The PH-T-60-AOL-8 Pintle Hook features:

  • Heat treated body and latch for increased strength
  • Designed for maximum articulation and reduced wear
  • Black Armour Corrosion Protection

Recommended use

Technologies

Black Armour® Corrosion Protection Learn more
Black Armour® Corrosion Protection Learn more

Literature

Document Thumbnail

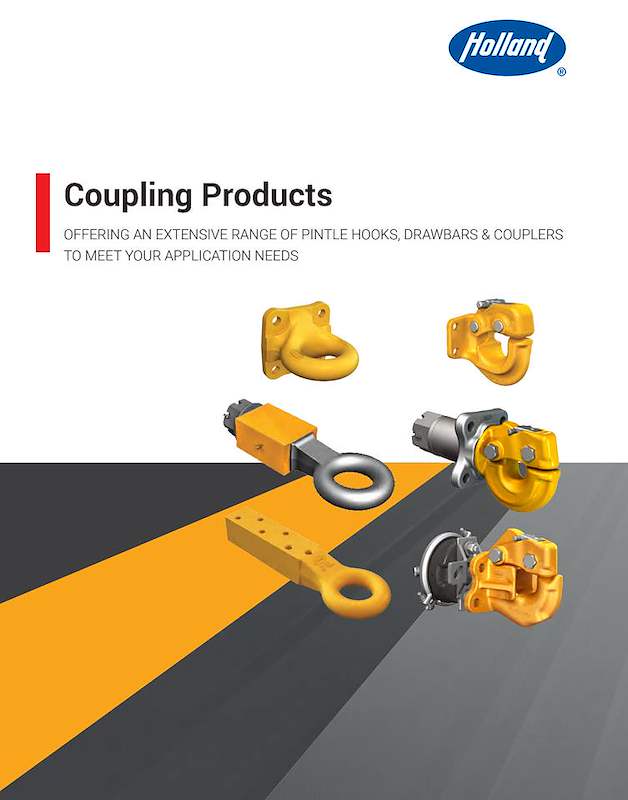

HOLLAND Coupling Products Selection Guide
PDF / 29.17 MB
Document Thumbnail
HOLLAND COUPLING PRODUCTS
PDF / 887.64 KB
Document Thumbnail
SAF-HOLLAND Black Armour Sales Brochure
PDF / 792.31 KB
Document Thumbnail
HOLLAND Ground Support Equipment Selection Guide Brochure
PDF / 1.94 MB
Document Thumbnail

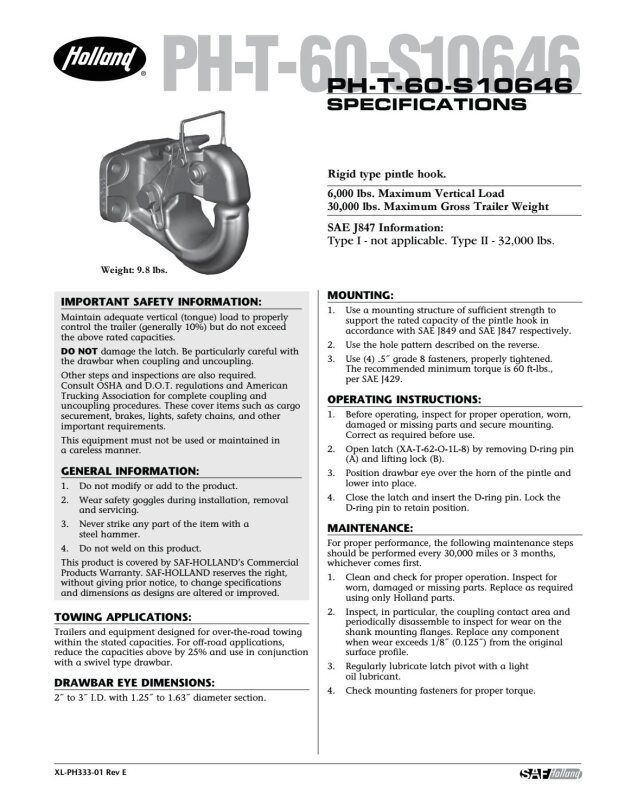

Holland PH-T-60-S10646 Specifications Sheet
