SAF CBX25

The SAF CBX25 Top Mount Fixed Frame Air Suspension Series delivers a versatile range of lightweight, durable models for on/off-highway, vocational specialty and heavy haul trailer applications.

Technical data





Capacity 10 tonnes (10,000 kg)
Ride Heights 385 – 445 mm, Optional 345-385mm and 460-525mm
Standard Axle Track 1840 mm (optional 2040 mm)



Product information

The SAF CBX25 Series offers 10 t capacity models for vocational specialty and multi-axle trailers. The durable cast steel trailing arm features a compact design for lower overall system weight and greater trailer application adaptability.

The CBX25 Series features:

  • SwingAlign™ for fast and accurate axle alignment
  • Multi-functional pivot bushing with exterior void design
  • Optional SAF D88 Air Disc Brakes
  • Optional PosiLift™ lift axle system
  • 146 mm diameter robust round axle

Recommended use

Technologies

SwingAlign Learn more
TIRE PILOT Plus Learn more
P89 Series Air Disc Brakes Learn more
SwingAlign Learn more
TIRE PILOT Plus Learn more
P89 Series Air Disc Brakes Learn more

Literature

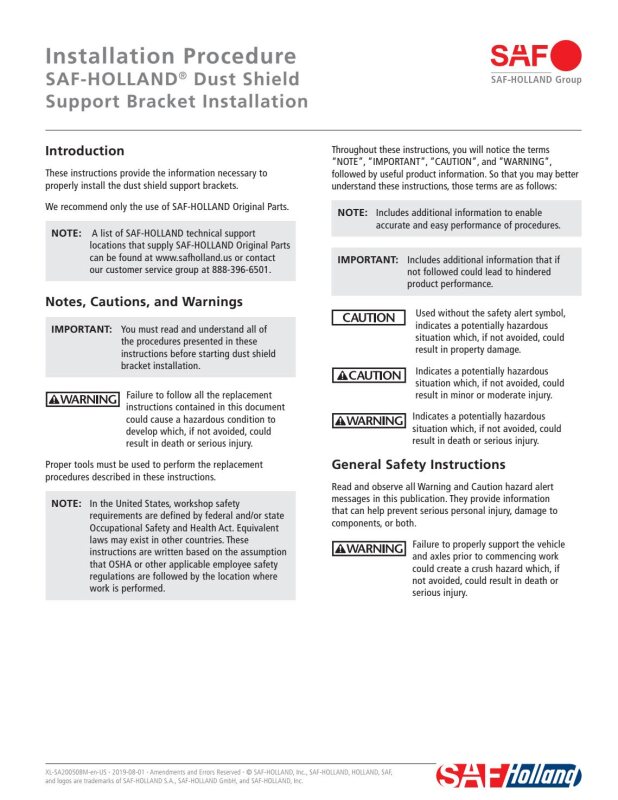

Installation Procedure - Dust Shield Support Bracket Installation
PDF / 805.55 KB
Air Disc Brakes - Service Parts
PDF / 2.97 MB
SAF P89 Disc Brake Axles Service Manual
PDF / 3.78 MB

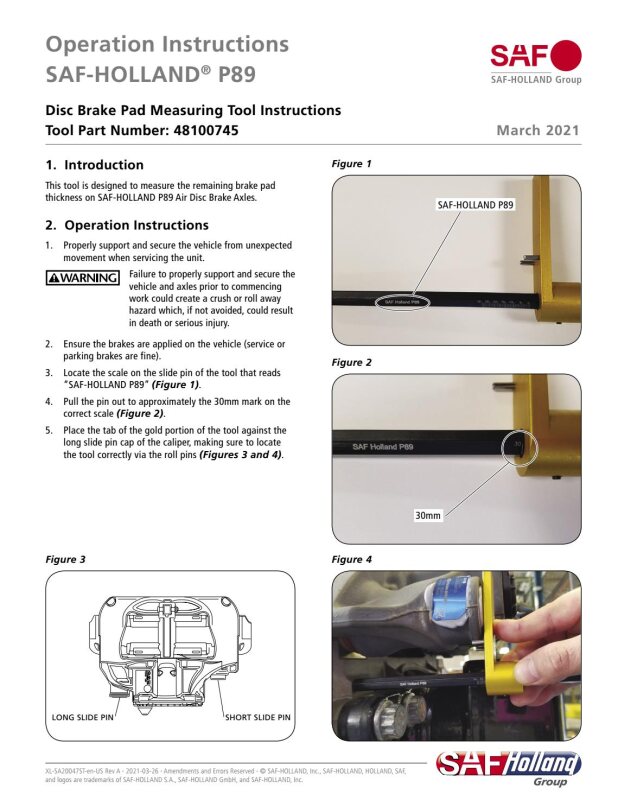

SAF Disc Brake Pad Measuring Tool Operation Instructions
PDF / 2.50 MB
Air Ride Suspension and Axle System US and Canada Commercial Warranty
PDF / 126.77 KB
Air Ride Suspension and Axle System US and Canada Commercial Warranty
PDF / 98.96 KB
