Product information
The V.ORLANDI OC40F drawbar eye series allows at least:
-
± 90° steering angle and ± 20° vertical oscillation, if coupled with a DIN 74051 standard coupling
-
± 70° steering angle and ± 20° vertical oscillation, if coupled with a DIN 11029 standard coupling
The main features consist of the following:
-
Homologated according to the ADR & ECE-R55 standard as class “S” in accordance with DIN 74054 & DIN 11026
-
Forged drawbar eye, strong and durable without risk of cracks and defects in the material
-
Long service life wear bushings, easily replaceable if required
-
These drawbar eyes can be mounted on the trailer by using screws
Technical data
| Flange size: | 100x110 mm |
| D-Value: | 125 – 130 kN |
| DC-Value: | 99 - 100 kN |
| S-Load (Mass load): | 1000 – 2000 kg |
| V-Value: | 40 – 55,2 kN |
| Weight: | 10.7 – 11.8 kg |

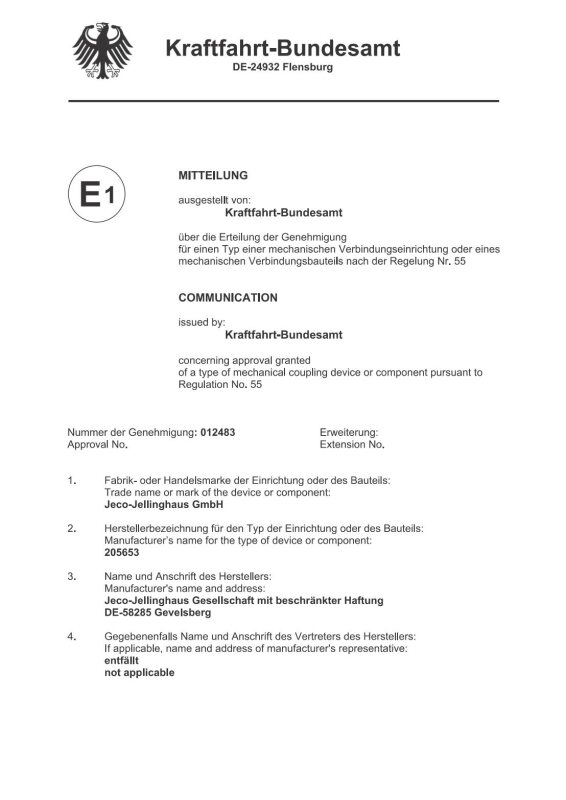

| Homologation: | CRN 50509; ECE R55 (Class S) |
| Drawbar eye standard: | DIN 74054 / DIN 11026 ECE R55 (Class S) |
