HOLLAND PH-210

The HOLLAND PH-210 Rigid-Mount Pintle Hook is designed for trailers and semi-trailers in doubles and triples towing applications.

Technical data





Max. Vertical Load: 18,000 lbs. (8,165 kg)
Max. Gross Trailer Weight: 90,000 lbs. (40,824 kg)
Drawbar Eye Dimensions: 2.38” - 3” I.D. with 1.25” - 1.63” diameter section
Weight: 38 lbs. (17.2 kg)



Product information

The HOLLAND PH-210 is an Air Cushioned Pintle Hook designed for trailers and semi-trailers in doubles and triples towing applications. Approved for on/off road applications. For severe off-road applications, reduce the above maximum capacities by 25% and use with a swivel-mount drawbar.

The PH-210 Pintle Hook features:

  • FastLatch™
  • Heat treated body and latch for increased strength
  • Air cushioned snubber reduces wear and provides shock absorption
  • Operable with or without the air chamber
  • Complies with NOM-0350-SCT-2-2010 Safety Specifications/Test Methods
  • Available with tethered lock pin (see literature for exact part number)
  • Black Armour Corrosion Protection

Technologies

Black Armour® Corrosion Protection Learn more
FastLatch™ Learn more
Black Armour® Corrosion Protection Learn more
FastLatch™ Learn more

Literature

View all
Product Change Notification - Air Cushion PH 2-Holoe/Air Chamber Bracket Design Update
PDF / 1.02 MB
HOLLAND Coupling Products Selection Guide
PDF / 16.39 MB
RK-12063 Replacement D-Clip Instruction
PDF / 322.12 KB
HOLLAND Coupling Products Warranty US & Canada
PDF / 96.35 KB

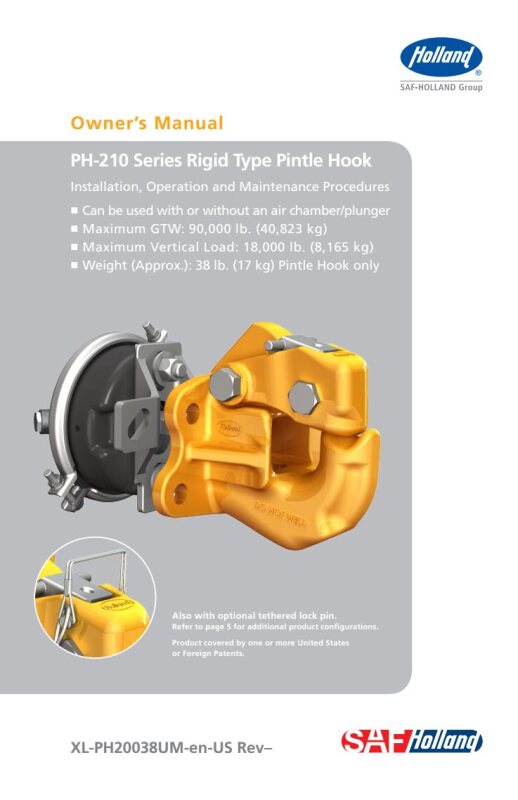

PH-210 Owner's Manual
PDF / 1.80 MB
Pintle Hook Wear Gage Operating Instructions
PDF / 2.11 MB
RK-10545 Latch Replacement Kit - Procedures for all PH-210/PH-310/PH-410 and PH-775 NoLube Series Pintle Hooks without a Pin and LanyardXL-PH337
PDF / 529.66 KB

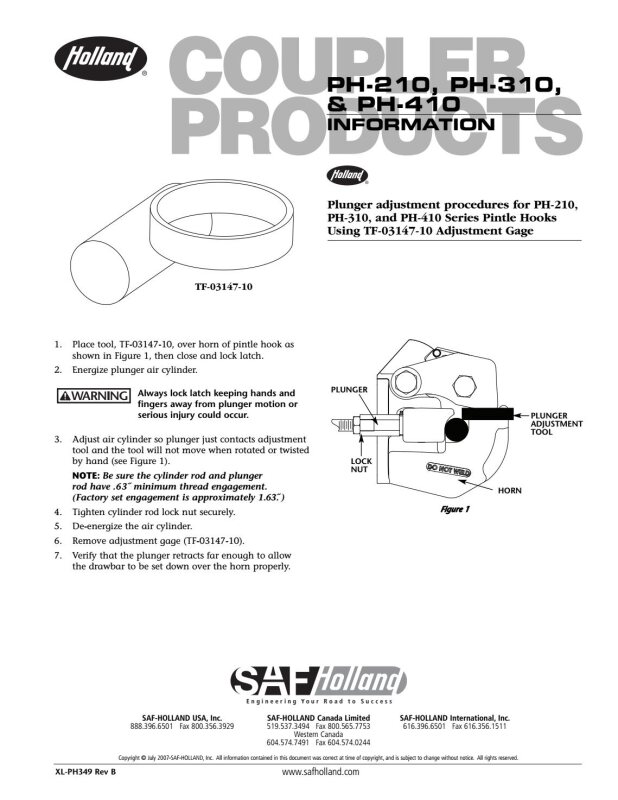

TF-03147-10 Adjustment Gage - Pintle Hook Plunger Adjustment Procedures for: PH-210, PH-310, and PH-410
PDF / 196.76 KB

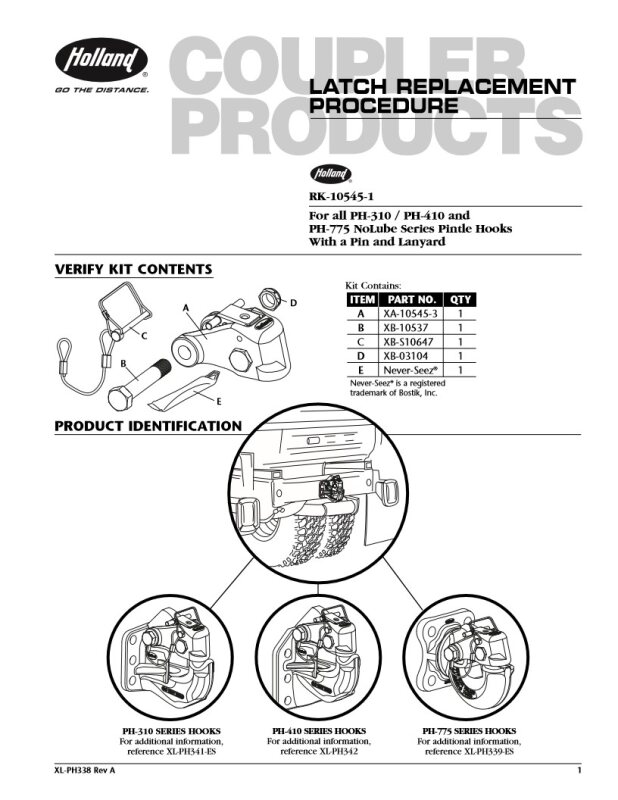

RK-10545-1 Latch Replacement Kit - Procedures for all PH-310/PH-410 and PH775 NoLube Series Pintle Hooks With a Pin and Lanyard
PDF / 553.21 KB
PH-210 Series Pintle Hook (with an air operated plunger) Specifications
PDF / 352.33 KB
Drawbar Guides Installation Instructions
PDF / 135.85 KB
Service Report (Claim Form) for the United States and Canada
PDF / 2.07 MB
