HOLLAND PH-550

The HOLLAND PH-550 Rigid Mount Pintle Hook is designed for trailers and semi-trailers in doubles and triples towing applications.

Technical data





Max. Vertical Load: 25,000 lbs. (11,340 kg)
Max. Gross Trailer Weight: 100,000 lbs. (45,360 kg)
Drawbar Eye Dimensions: 2.38” - 3” I.D. with a 1.63” - 1.75” diameter section
Weight: 47 lbs. (21.3 kg)



Product information

The HOLLAND PH-550 is an Air Cushioned Pintle Hook designed for trailers and semi-trailers in doubles and triples towing applications; Must be used with the air chamber and plunger. Approved for on/off-road applications. For severe off-road applications, reduce the above maximum capacities by 25% use a rigid-mount drawbar.

The PH-550 Pintle Hook features:

  • Heat treated body and latch for increased strength
  • Air cushioned snubber reduces wear and provides shock absorption
  • Complies with NOM-0350-SCT-2-2010 Safety Specifications/Test Methods
  • Secondary lock pin
  • Adjustable plunger
  • Black Armour Corrosion Protection

Technologies

Black Armour® Corrosion Protection Learn more
Black Armour® Corrosion Protection Learn more

Literature

HOLLAND Coupling Products Warranty US & Canada
PDF / 96.35 KB
Pintle Hook Drawbar Special
PDF / 334.98 KB
Product Change Notification - Air Cushion PH 2-Holoe/Air Chamber Bracket Design Update
PDF / 1.02 MB
HOLLAND Coupling Products Selection Guide
PDF / 16.39 MB
TF-03147 Adjustment Gage Information for PH-200,300, 400 & 550 Series Pintle Hooks
PDF / 44.52 KB
Pintle Hook Wear Gage Operating Instructions
PDF / 2.11 MB

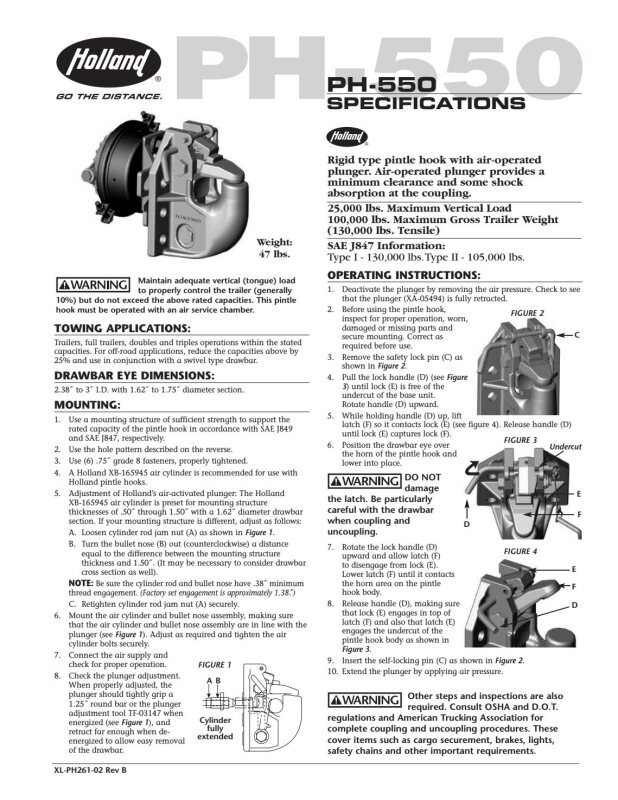

PH-550 Specifications
PDF / 345.36 KB
