HOLLAND PH-990ST71

The HOLLAND PH-990ST71 Swivel Mount Pin Coupler is designed for extreme duty trucks, trailers, semi-trailers and doubles towing applications. Used for on/off road applications, where a large amount of articulation is required.

Technical data





Max. Vertical Load: 3,000 lbs. (1,360 kg)
Max. Gross Trailer Wt.: 100,000 lbs. (45,359 kg)
Drawbar Eye Dimensions: 3” ID with 1.63” diameter section
Weight: 160 lbs. (72.57 kg)



Product information

The HOLLAND PH-990ST71 is an under-frame mount, pin coupler with a “fish mouth” style head and integrated rubber cushions for shock absorption at the coupling. Swivel action provides torsional relief for off road towing applications, where a large amount of articulation is required. Use ONLY in conjunction with a non-swivel drawbar. For severe off-road applications, reduce the above capacities by 25%.

The PH-990ST71 Coupler features:

  • Heat treated body and clevis pin for durability
  • Replaceable wear plates in “fish mouth” to minimize drawbar movement
  • Rubber cushions provide shock absorption
  • Black Armour Corrosion Protection

Technologies

Black Armour® Corrosion Protection Learn more
Black Armour® Corrosion Protection Learn more

Literature

Vocational Products Sales Brochure
PDF / 1.98 MB
HOLLAND Coupling Products Warranty US & Canada
PDF / 96.35 KB
HOLLAND Coupling Products Selection Guide
PDF / 16.39 MB
PH-990ST71 Specifications
PDF / 313.60 KB
PH-990ST71 Inspection & Rebuild Procedures (replaces PH-T-990)
PDF / 603.53 KB

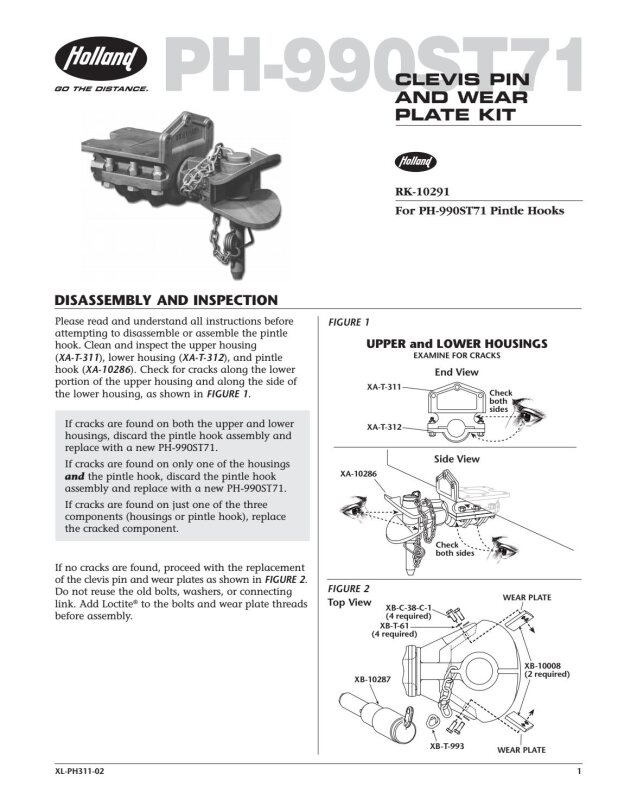

Clevis and Wear Plate Kit - Instructions for PH-990ST71 Pintle Hook
PDF / 323.33 KB
