V.ORLANDI E525

The V.ORLANDI E525 series is a 50mm automatic drawbar coupling, which is designed for steering drawbar trailers and central axle trailers. This coupling series is homologated according to ECE standard, is easy to handle and can be maintained very fast and is cost efficient. All E525 couplings can be equipped  with various sensor and remote options.

Technical data





Flange size 160x100 mm
D-Value 130 - 200 kN
DC-Value 83 – 135 kN
S-Load (Mass load) 1000 – 2500 kg
V-Value 29 – 75 kN
Weight 43 kg
Homologation ECE R55 (Class C50-X)
Drawbar eye standard DIN 74053; ECE R55 (Class D)



Product information

The V.ORLANDI E525 series is composed by a rigid coupling, which allows a ± 105° steering angle and ± 20° vertical oscillation of the drawbar eye.

The main features consist of the following:

  • The E525 coupling stands out for ease weight and dimension in comparison to its competitors, it weighs less than 43 kg and has total length of 443 mm.
  • The pin can be opened at any angle between the truck and the trailer This series can be used for a wide range of application and for several markets.
  • It offers an automatic closing and manual opening mechanism.
  • This series is homologated acc. to ECE-R55 standard as class “C50-X”and can be equipped with manual or pneumatic remote opening system as well as several sensor indicators.
  • For special applications, a steel bell mouth is available.
  • Wear plate available as steel or optional as nylon version
  • The opening lever can be ordered mounted either upwards or downwards.

Recommended use

Technologies

Rigid Technology Learn more
Pin Release Technology Learn more
Sensor Technology Learn more
Plug & Play Technology Learn more
Steel Technology Learn more
Rigid Technology Learn more
Pin Release Technology Learn more
Sensor Technology Learn more
Plug & Play Technology Learn more
Steel Technology Learn more

Literature

Certificate UK - V.ORLANDI E525_E505 SERIES_TYPE E505
PDF / 237.42 KB

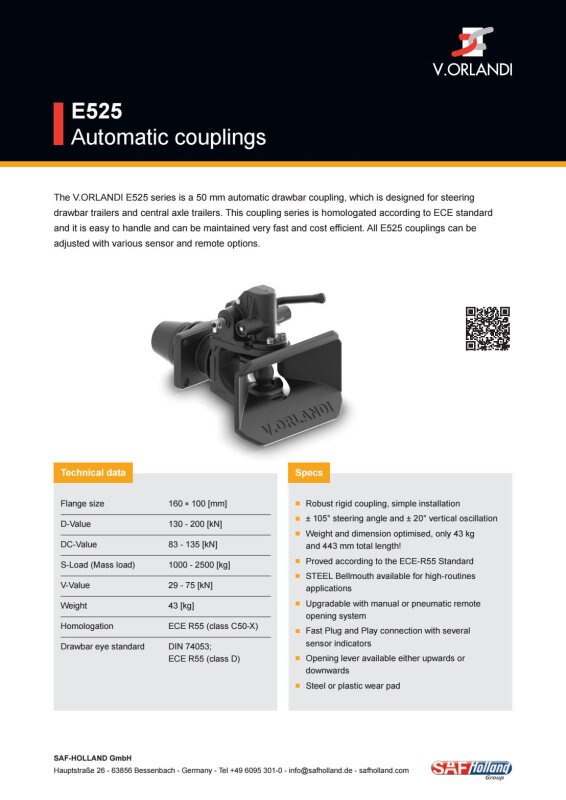

Technical Data - E525
PDF / 511.32 KB
Installation and Operating Instructions - V.ORLANDI E525
PDF / 2.11 MB
