Product information
The V.ORLANDI OC68R drawbar eye series allows at least ± 90° steering angle and ± 20° vertical oscillation if coupled with a BNA NF R41-101 standard coupling.
This drawbar eye must be mounted using squared bracket (V.ORLANDI part number RO00059, RO00060, RO00061, RO00062) welded on the trailer and can be replaced by removing the nut.
The main features consist of the following:
-

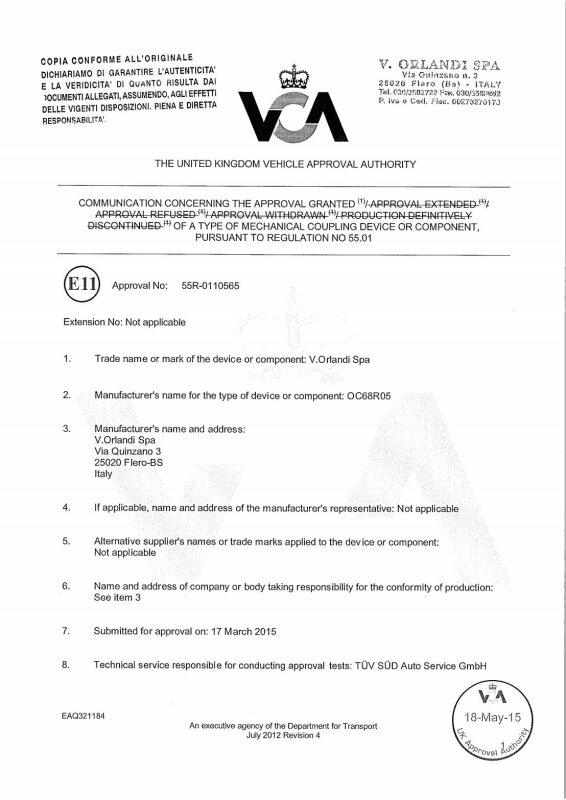

Homologated according to ECE-R55 standard as class “S” in accordance with BNA NF R41-102.
-
Forged drawbar eye, strong and durable without risk of cracks and defects in the material
-
Long service life wear bushings, easily replaceable if required
Technical data
| Flange size: | Square bracket 80X80/90x90/100X100/110X100 mm |
| D-Value: | 160 - 200 kN |
| DC-Value: | 120 - 160 kN |
| S-Load (Mass load): | 1000 kg |
| V-Value: | 60 - 140 kN |
| Weight: | 17.5 – 25 kg |
| Homologation: | ECE R55 (Class S) |
| Drawbar eye standard: | BNA NF R41-102; ECE R55 (Class S) |
