HOLLAND DB-1249-49

The HOLLAND DB-1249-49 Bolt-On Swivel Drawbar is used on straight tongue or hinged tongue trailers, and is designed for trailers and semi-double trailers towing applications.

Technical data





Max. Vertical Load: 9,000 lbs. (4,082 kg)
Max. Gross Trailer Weight: 45,000 lbs. (20,411 kg)
Drawbar Eye Dimensions: 3” I.D. with 1.63” diameter section
Weight: 24 lbs. (10.9 kg)



Product information

The HOLLAND DB-1249-49 Bolt-On Swivel Drawbar is used on straight tongue or hinged tongue trailers, and semi-double trailers towing applications. Approved for on/off-road towing applications. For severe off-road applications, reduce published capacities by 25% and use with rigid-mount coupling.

The DB-1249-49 Drawbar features:

  • Forged, heat treated one-piece steel eye and shaft
  • Eye I.D. induction hardened for wear resistance
  • Tested in accordance with SAE J847
  • Black Armour Corrosion Protection

Technologies

Black Armour® Corrosion Protection Learn more
Black Armour® Corrosion Protection Learn more

Literature

Drawbar Gauge Owner's Manual
PDF / 928.61 KB
HOLLAND Coupling Products Warranty US & Canada
PDF / 96.35 KB

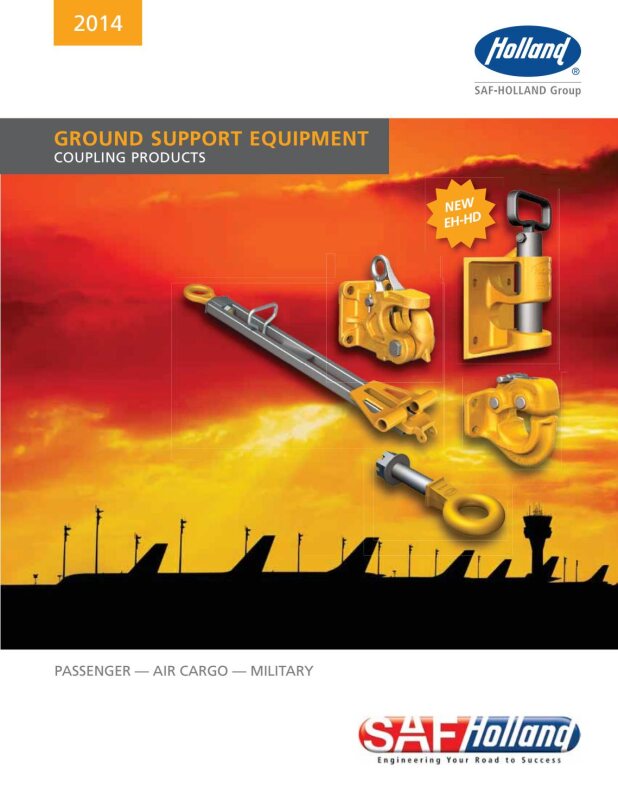

HOLLAND Ground Support Equipment Selection Guide Brochure
