HOLLAND PH-30RP41

The HOLLAND PH-30RP41 Rigid Mount Pintle Hook is designed for medium duty on/off-road towing applications.

Product information

The HOLLAND PH-30RP41 Pintle Hook was specifically designed for medium duty on/off-road towing applications. For off-road applications, reduce the maximum capacities by 25% and use with a swivel-mount drawbar.

The PH-30RP41 Pintle Hook features:

  • FastLatch™
  • Heat treated body and latch for increased strength
  • Available with a tethered lock pin (PH-30RP51)
  • Black Armour Corrosion Protection
Technical data
Max. Vertical Load: 6,000 lbs. (2,720 kg)
Max. Gross Trailer Weight: 30,000 lbs. (13,610 kg)
Drawbar Eye Dimensions: 2.38” - 3” I.D. with 1.25” - 1.63” diameter section
Weight: 8.4 lbs. (4.2 kg)
Literature
View all
Document Thumbnail
HOLLAND Coupling Products Selection Guide
PDF / 29.17 MB
Document Thumbnail
HOLLAND COUPLING PRODUCTS
PDF / 887.64 KB
Document Thumbnail
SAF-HOLLAND Black Armour Sales Brochure
PDF / 792.31 KB
Document Thumbnail
HOLLAND Ground Support Equipment Selection Guide Brochure
PDF / 1.94 MB
Document Thumbnail

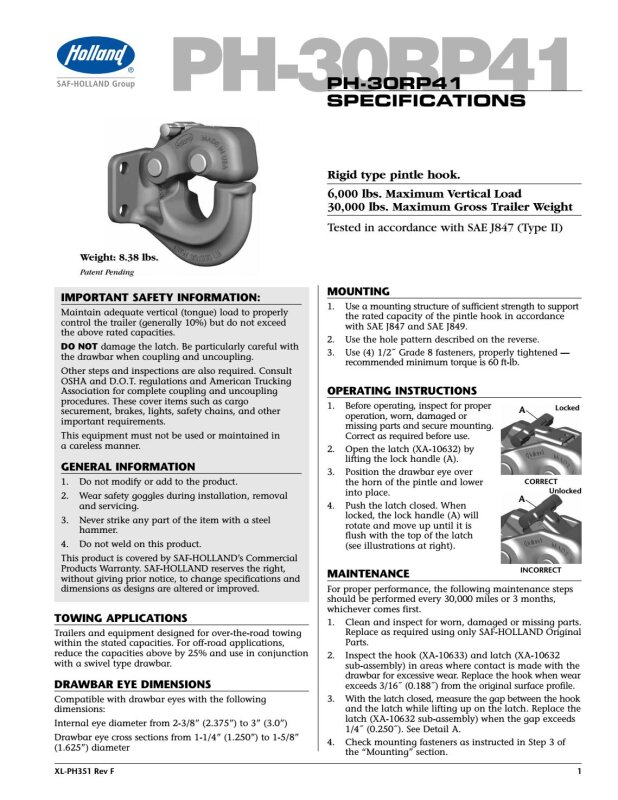

HOLLAND PH-30RP41 Rigid Pintle Hook Spec Sheet
PDF / 337.44 KB
Document Thumbnail
PM204A and PM252A Pintle Mounts Specifications
PDF / 308.41 KB
