HOLLAND PH-400

The HOLLAND PH-400 Rigid-Mount Pintle Hook is designed for trailers and semi-trailers in doubles and triples towing applications. Used for on/off-road applications.

Technical data





Max. Vertical Load: 20,000 lbs. (9,070 kg)
Max. Gross Trailer Weight: 100,000 lbs. (45,360 kg)
Drawbar Eye Dimensions: 2.38” - 3” I.D. with 1.25” - 1.63” diameter section
Weight: 48 lbs. (21.8 kg)



Product information

The HOLLAND PH-400 is an Air Cushioned Pintle Hook designed for trailers and semi-trailers in doubles and triples towing applications. For severe off-road applications, reduce the above maximum capacities by 25% and use with a swivel-mount drawbar.

The PH-400 Pintle Hook features:

  • Heat treated body and latch for increased strength
  • Air cushioned snubber to reduce wear and provide shock absorption
  • Operable with or without air chamber
  • Ten-hole mounting plate

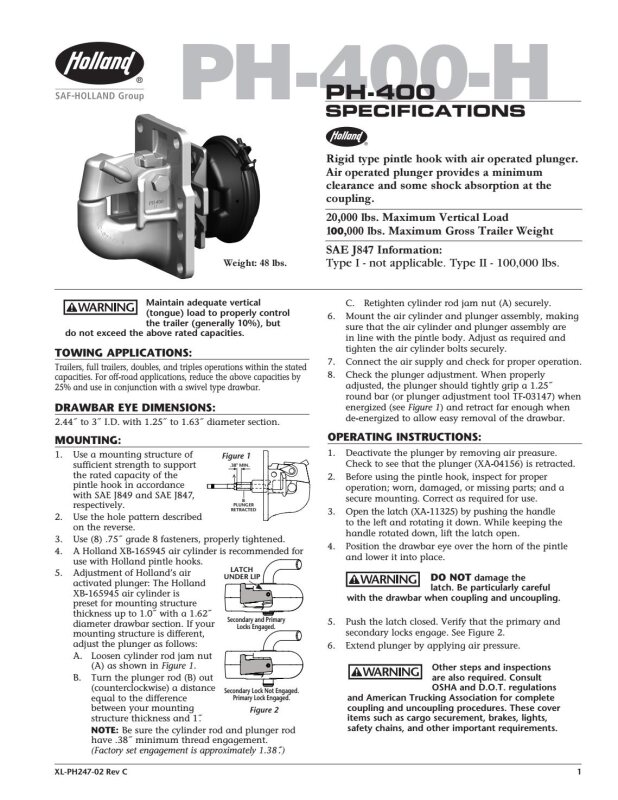

  • Eight-hole mounting plate model available (PH-400-H), reference technical specifications guide
  • Complies with NOM-0350-SCT-2-2010 Safety Specifications/Test Methods
  • Black Armour Corrosion Protection

Recommended use

Technologies

Black Armour® Corrosion Protection Learn more
Black Armour® Corrosion Protection Learn more

Literature

Document Thumbnail

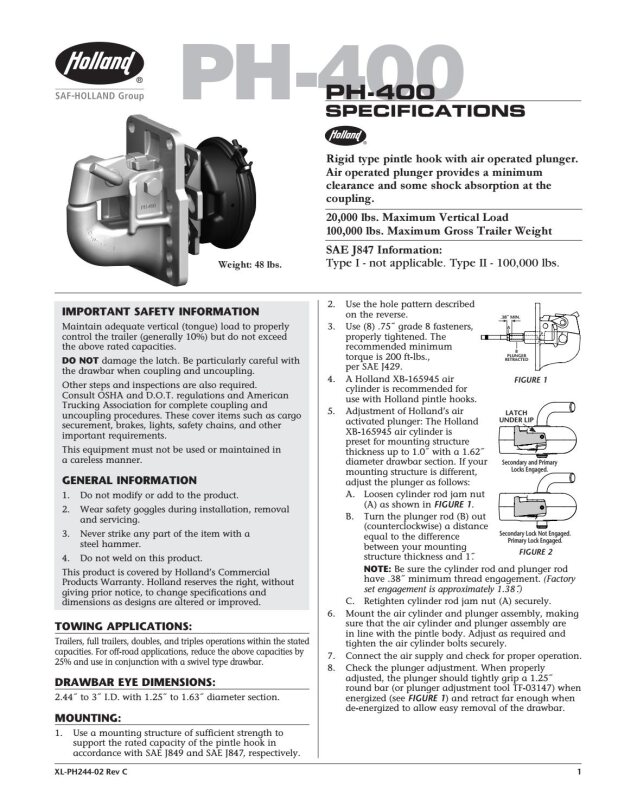

SAF-HOLLAND Original Parts Quick Parts Reference Guide
PDF / 25.59 MB
