HOLLAND PH-405

The HOLLAND PH-405 is an Austenitic Manganese Steel Alloy Rigid-Mount Pintle Hook designed for on/off-road trailers and semi-trailers in doubles and triples towing applications.

Product information

The HOLLAND PH-405 is an Air Cushioned Pintle Hook designed for trailers and semi-trailers in doubles and triples operations. The austenitic manganese material properties provide enhanced wear resistance. Approved for on/off road applications. For severe off-road applications, reduce the above maximum capacities by 25% and use with a swivel-mount drawbar.

The PH-405 Pintle Hook features:

  • FastLatch™
  • Robust body with reinforced horn design for maximum strength
  • The hook 'work hardens' at contact surfaces with the drawbar eye
  • Operable with or without the air chamber
  • Air cushioned snubber reduces wear and provides shock absorption
  • Complies with NOM-0350-SCT-2-2010 Safety Specifications/Test Methods
  • Available with tethered lock pin (see literature for exact part number)
  • Black Armour Corrosion Protection
Technical data
Max. Vertical Load: 20,000 lbs. (9,070 kg)
Max. Gross Trailer Weight: 100,000 lbs. (45,360 kg)
Drawbar Eye Dimensions: 2.375” I.D. with 1.63” diameter section
Weight: 34.3 lbs. (15.6 kg)
Literature
View all
Document Thumbnail
Vocational Products Sales Brochure
PDF / 1.51 MB
Document Thumbnail
HOLLAND Coupling Products Selection Guide
PDF / 29.17 MB
Document Thumbnail

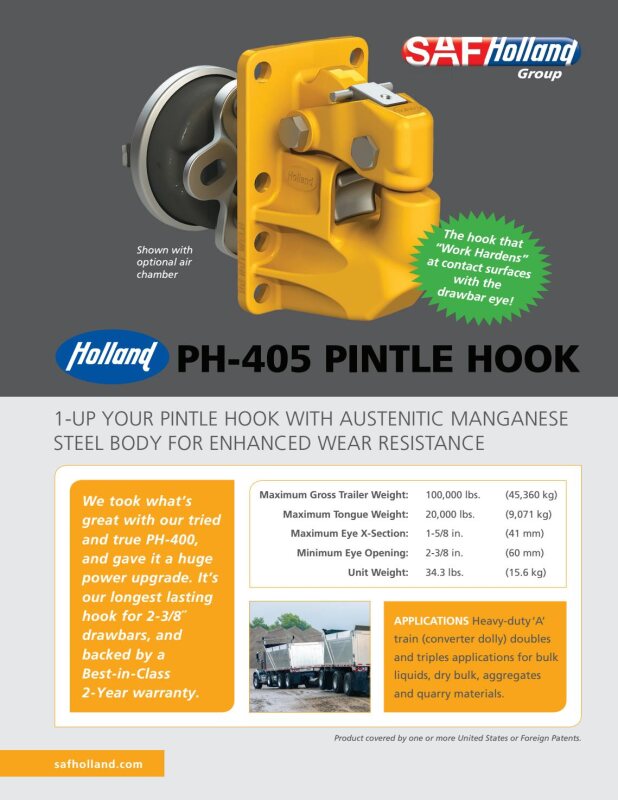

HOLLAND PH-405 Pintle Hook Sales Flyer
