Technical data
| Max. Vertical Load: | 20,000 lbs. (9,070 kg) |
| Max. Gross Trailer Weight: | 100,000 lbs. (45,360 kg) |
| Drawbar Eye Dimensions: | 3” I.D. with 1.63” diameter section |
| Weight: | 57 lbs. (25.8 kg) |
Product information
The HOLLAND PH-775SL11 Pintle Hook is designed for heavy-duty on/off-road construction towing applications where a significant amount of articulation is required. For severe off-road applications, reduce the above maximum capacities by 25% and use with a rigid mount drawbar.
The PH-775SL11 (NoLube™) Pintle Hook features:
- FastLatch™
- NoLube™ technology for low maintenance
- Heat treated body and latch for strength
- One-piece sealed housing keeps contaminants out
- Complies with NOM-0350-SCT-2-2010 Safety Specifications/Test Methods

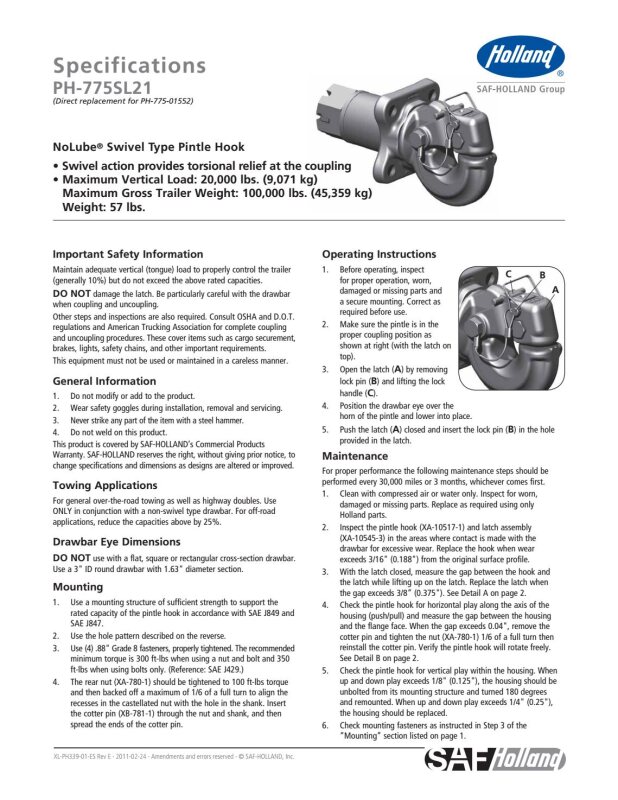

- Available with tethered lock pin (PH-775SL21)
- Black Armour Corrosion Protection
