HOLLAND SDS Kompensator®

The HOLLAND Severe-Duty Slider (SDS) Kompensator® System is used for operating on rough or uneven terrain. The unique Kompensator® cradle design provides front-to-rear and side-to-side top plate oscillation, and is ideal for hauling trailers with high center of gravity loads such as tank trailers.

Product information

The HOLLAND SDS Kompensator® Fifth Wheel Mounting System provides side-to-side oscillation, relieving the twisting force between the tractor and trailer. Use with the FW33, FW35 or the FW70 top plate for moderate or severe-duty applications.

The SDS Kompensator® Fifth Wheel Mounting System features:

Inboard or outboard mounting systems with Kompensator®
Multiple slider travels for weight distribution and swing clearance
Visual plunger lock indicators
13” mounting height models only
200k maximum drawbar pull capacity
In-cab air slide release control

Technical data

Maximum Vertical Load	up to 70,000 lbs. (32,000 kg)
Maximum Drawbar Pull	up to 200,000 lbs. (91,000 kg)

Technologies

KOMPENSATOR® Mounting System

Literature

View all

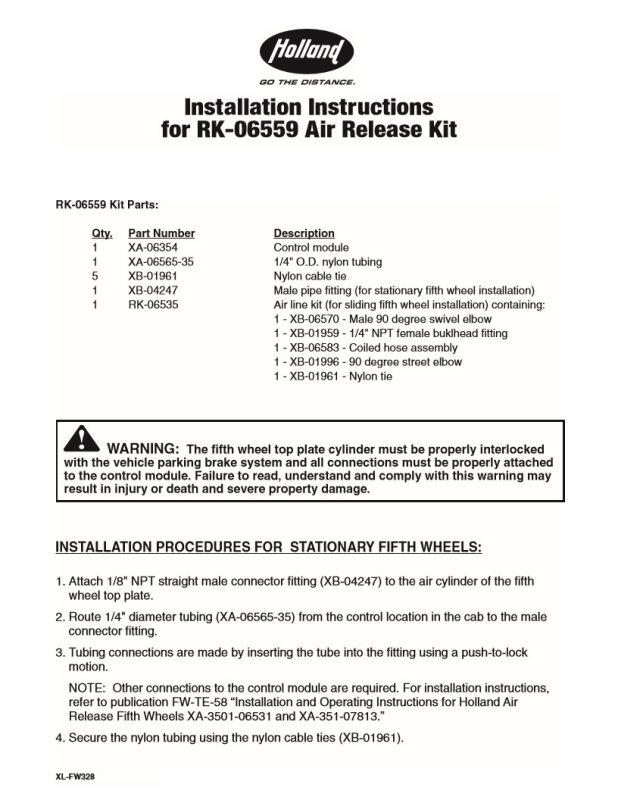

HOLLAND Sliding Fifth Wheels Air Line Kit Instructions

PDF / 231.89 KB

Interested? Get in contact.
