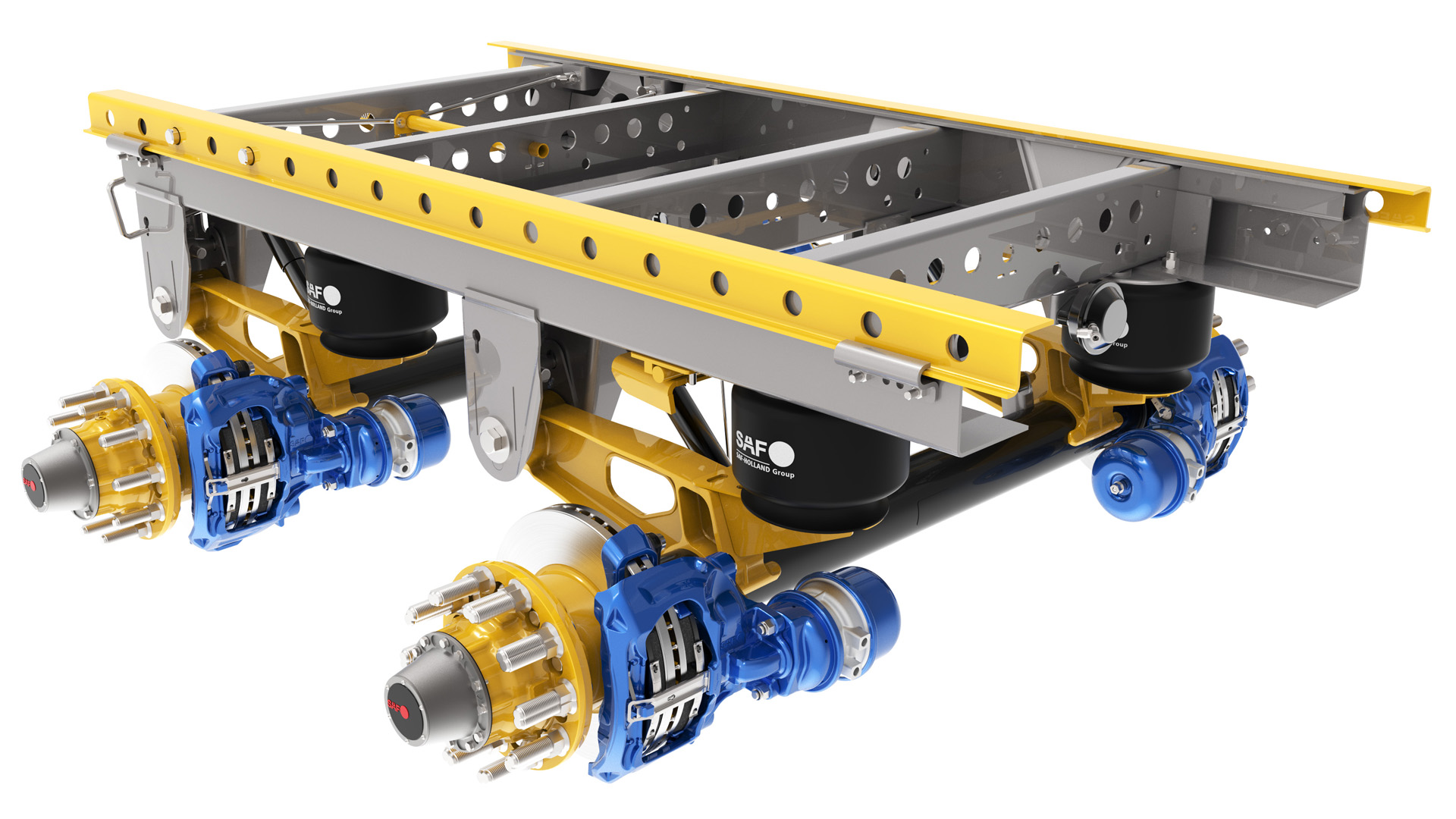

SAF CBX46

The SAF CBX46 Sliding Frame Air Suspension is one of the lightest and toughest extra capacity tandem slider solutions available for on/off highway van and reefer applications.

Product inquiry

Product information

The SAF CBX46 Sliding Frame Air Suspension with a reinforced slider subframe and cast steel trailing arm suspension design provides added robustness to meet the demand for extra capacity in van and reefer trailer applications.

The CBX46 Air Sliding Suspension features:

SwingAlign™ for Fast and Accurate Axle Alignment
Multi-Functional Pivot Bushing with Exterior Void Design
Optional P89™ PSP7 or P89 Plus™ Air Disc Brakes
Optional SC5 Dressed Drum Wheel End Package with 5-Year Warranty
Optional Air Release Pin-Pull System for Easy Slider Subframe Repositioning
PosiLok™ to Minimize Dock Walk and Suspension Squat
Optional Tire Pilot Plus™ Tire Inflation System
5.75” Diameter Robust Round Axle
Black Armour® Corrosion Protection
Featuring Haldex Calipers and Actuators

Technical data

Capacity:	46,000 lbs. (20.8 t)
Ride Heights:	16” / 16.5” / 17”
Standard Slider Width:	48” (optional 42” and 54”)
Standard Axle Track:	77.5” (optional 71.5”, 81.5” and 83.5”)
