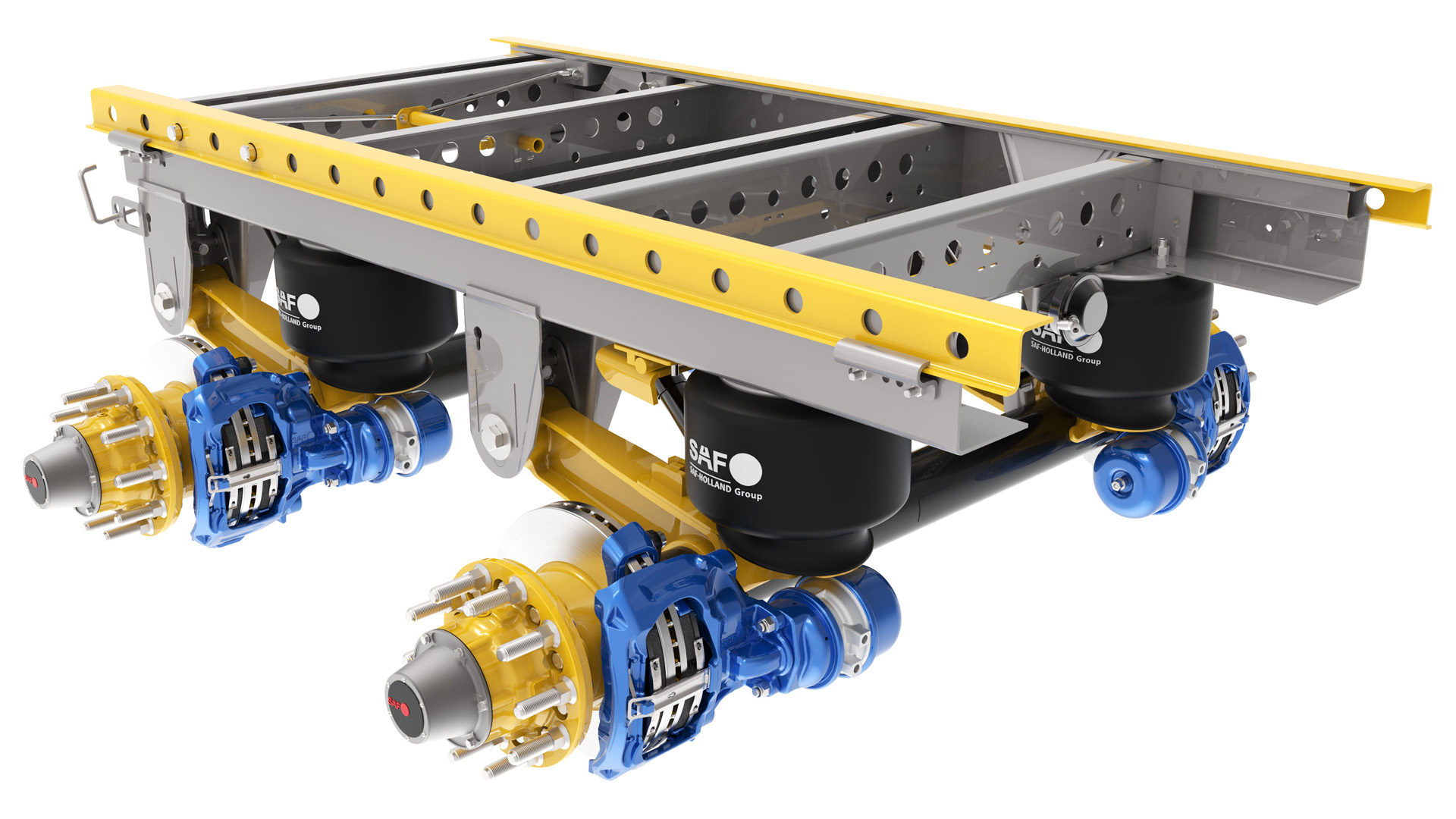

SAF CBX50

The SAF CBX50 Sliding Frame Air Suspension is the lightest and toughest 50k capacity rated, heavy-duty tandem slider solution available for on/off highway and secondary road hauling.

Product information

The SAF CBX50 Sliding Frame Air Suspension is a heavy-duty slider air system featuring a reinforced slider sub-frame with two additional crossmembers and cast steel suspension trailing arms. The CBX50 is the most robust and structurally rigid, 50K capacity slider on the market.

The CBX50 Air Sliding Suspension features:

SwingAlign™ for fast and accurate axle alignment
Multi-functional pivot bushing with exterior void design
Optional P89™ or P89 Plus™ Air Disc Brakes
Optional SC5 Dressed Drum Wheel End package with 5-Year Warranty
Optional air operated pin pull release for easy slider sub-frame repositioning
Optional Tire Pilot Plus™ Tire Inflation System
PosiLok™ to minimize dock walk and suspension squat
5.75” diameter robust round axle
Black Armour® Corrosion Protection

Technical data

Capacity:	50,000 lbs. (22.7 t)
Ride Heights:	16” / 16.5” / 17”
Standard Slider Width:	48” (optional 42” and 54”)
Standard Axle Track:	77.5” (optional 71.5”, 81.5” and 83.5”)
