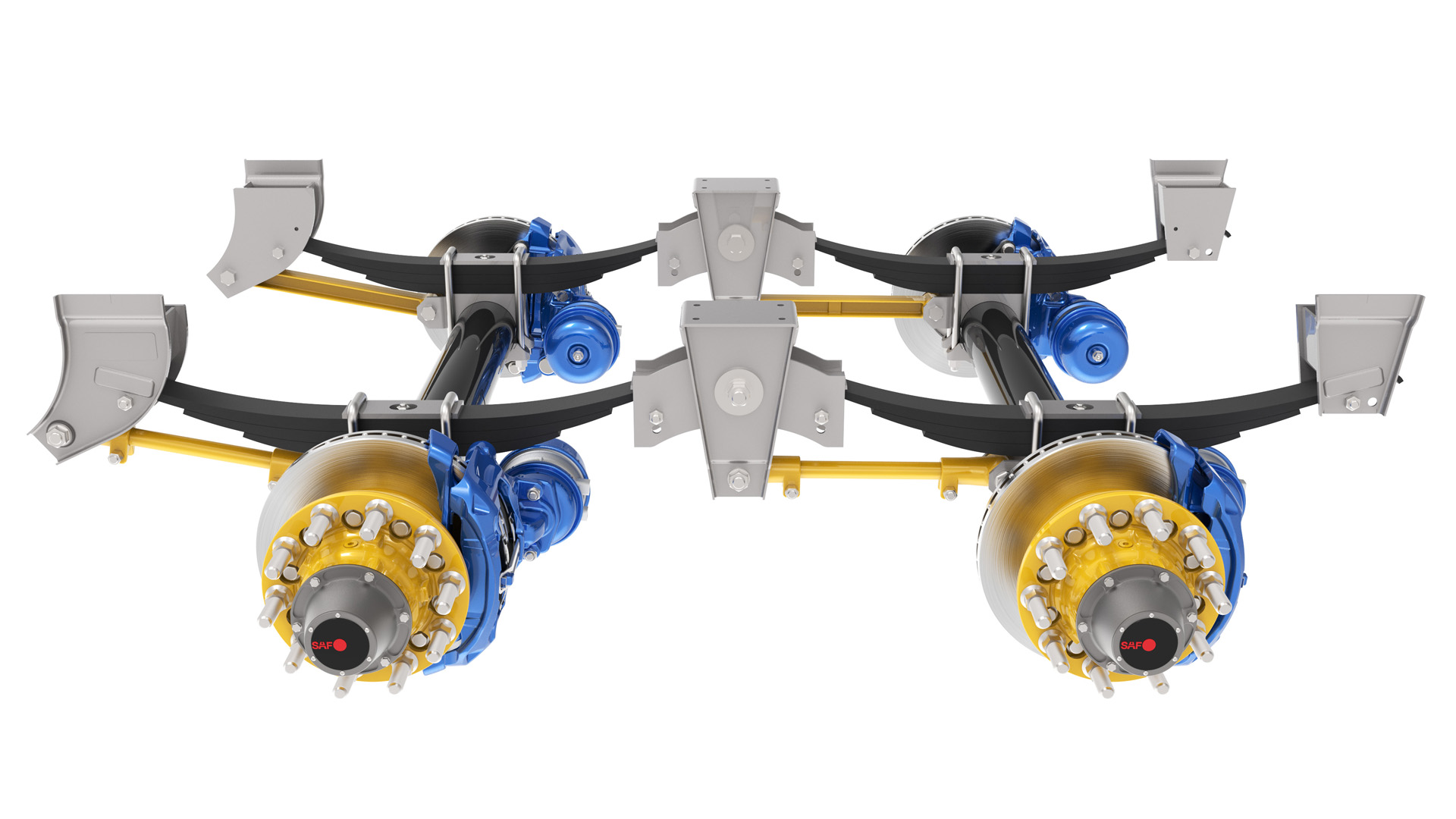

SAF DLX DURALITE®

The SAF DLX Duralite® Fixed Frame Mechanical Suspension and Axle System is a proven original Binkley design and delivers durability, weight savings and low maintenance. Available in multi-axle configurations for fixed frame vocational trailer applications.

Product information

The SAF DLX Duralite Fixed Frame Mechanical Suspension delivers durability and proven performance, all in a lightweight system with single, tandem and tridem axle configurations. Up to 25k per axle capacity with properly specified leaf springs. Multiple mounting bracket styles available to fit your vocational trailer application requirements.

The DLX Duralite Fixed Frame Mechanical Suspension features:

Optional P89™ or P89 Plus™ Air Disc Brakes
Optional SC5 Dressed Drum Wheel End package with 5-Year Warranty
Optional Tire Pilot Plus™ Tire Inflation System
5.75” diameter robust round axle
Multiple frame bracket mounting styles
Black Armour® Corrosion Protection

Technical data

Capacity:	25,000 lbs. (11.3 t) per axle
Ride Heights:	13.25” - 18.5”
Standard Axle Track:	71.5” and 77.5”

Technologies

P89 Series Air Disc Brakes

SC5 Dressed Drum Brake Wheel Ends

TIRE PILOT Plus

Black Armour® Corrosion Protection
