HOLLAND SK-S 36.20H

The height-adjustable HOLLAND SK-S 36.20H lifting fifth wheel made of spheroidal graphite cast iron is specially designed for the flexible use of mega-tractor units.

Product information

The height-adjustable fifth wheel HOLLAND SK-S 36.20H with the variable fifth wheel height allows the alternate transport of mega and standard semi-trailers on 2-axle low liner tractor units.

The main features are:

  • Pneumatic height adjustment with little effort for the operator
  • Convenient single hand operation with integrated locking device
  • Easy to service due to simple clearance adjustment and low-maintenance bearings
  • Approved for forced steering
  • Optional with RECOLUBE: automatic central lubrication for MAN tractors
Technical data
Lock size: 2"
Imposed Load: 15,000 kg
Overall heights: 167 mm
Stroke: + 100 / 150 / 200 mm

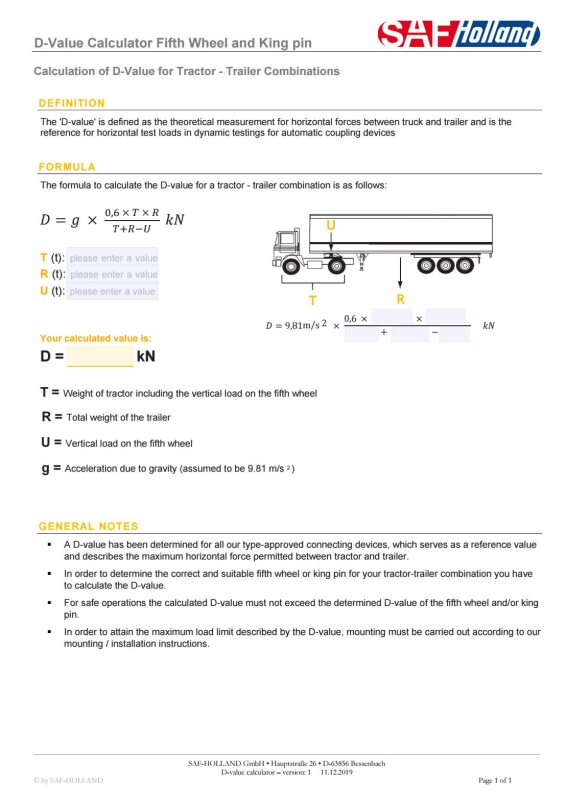

D-Value: 110 kN
ECE Test no.: E11 55R-01 1381
