Technical data
| Lock size: | 2" |
| Imposed Load: | 15,000 kg |
| Overall heights: | 167 mm |
| Stroke: | + 100 / 150 / 200 mm |

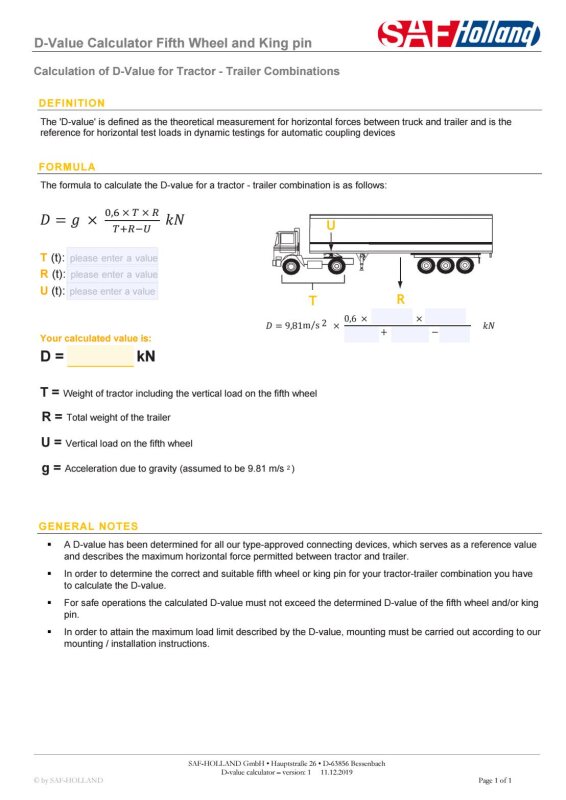

| D-Value: | 110 kN |
| ECE Test no.: | E11 55R-01 1381 |
Product information
The height-adjustable fifth wheel HOLLAND SK-S 36.20H with the variable fifth wheel height allows the alternate transport of mega and standard semi-trailers on 2-axle low liner tractor units.
The main features are:
- Pneumatic height adjustment with little effort for the operator
- Convenient single hand operation with integrated locking device
- Easy to service due to simple clearance adjustment and low-maintenance bearings
- Approved for forced steering
- Optional with RECOLUBE: automatic central lubrication for MAN tractors
Technologies

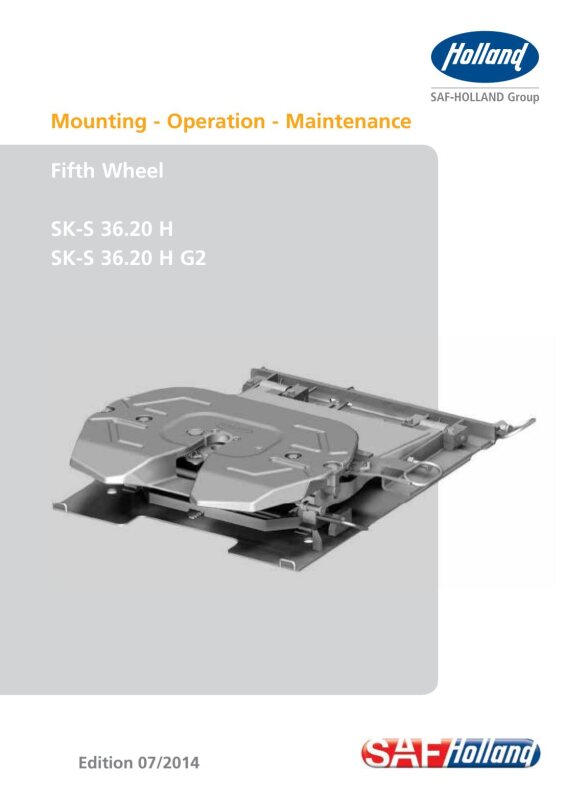

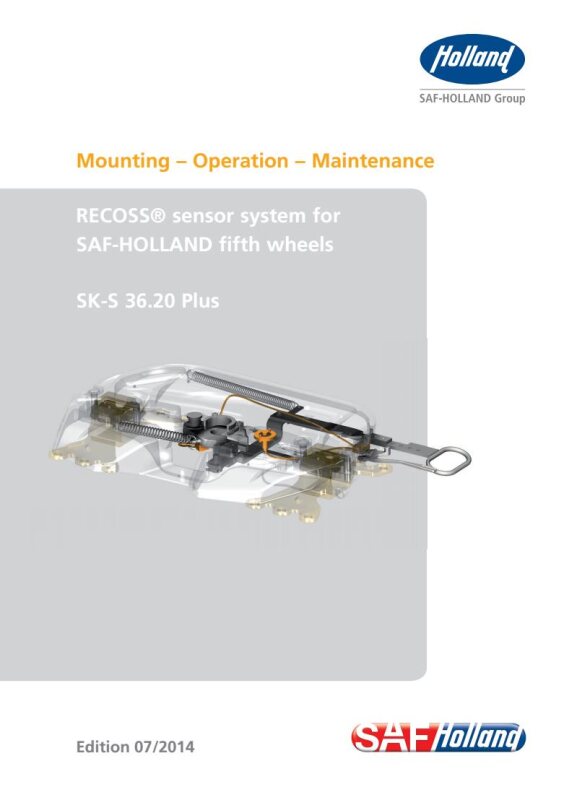

Literature
