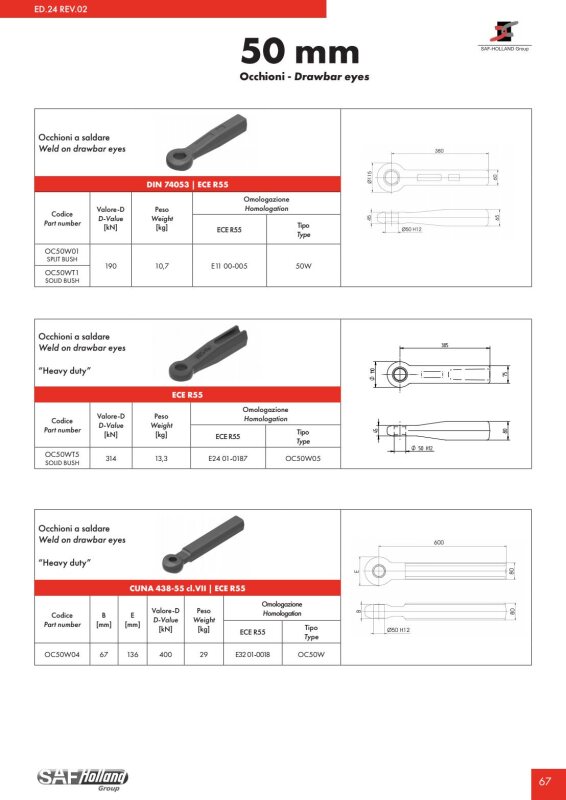

V.ORLANDI OC50W

The V.ORLANDI OC50W series is a Ø 50 mm weldable drawbar eye, which is designed for steered drawbar trailers and central axle trailers. This drawbar eye is homologated according to ADR & ECE R55 standard. This drawbar eyes are available for standard and heavy-duty applications.

Product information

The V.ORLANDI OC50W drawbar eye series allows at least:

± 90° steering angle and ± 20° vertical oscillation if coupled with a ECE R55 class “C50” standard coupling in accordance with DIN 74052 standard coupling.

± 95° steering angle and ± 22° vertical oscillation if coupled with a coupling in accordance with CUNA 138-55 cl. VII standard.

This series is homologated according to ADR & ECE-R55 standard as class “D50” or “S” in accordance with DIN 74054 or CUNA 438-55 cl. VII.

These drawbar eyes are forged in a controlled process that makes the steel durable and strong while also eliminating the risk of cracks or defects in the material.

The wear bushings have a long service life and can be easily replaced using a hydraulic press.

This drawbar eye can be mounted on the trailer by welding.

Technical data

Flange size:
D-Value:	190 – 400 kN
DC-Value:	90 kN
S-Load (Mass load):	1000 kg
V-Value:	30 kN
Weight:	10.7 – 29 kg
Homologation:	CRN 37469; CRN 37468; CRN 46332; ECE R55 (Class D50, S)
Drawbar eye standard:	DIN 74054; ECE R55 (Class D50, S); CUNA 438-55; ECE R55 (Class S)
