V.ORLANDI GA38
The V.ORLANDI GA38 series is a small and light 40mm semi-automatic drawbar coupling, which is designed for steering drawbar trailers and central axle trailers.
This coupling series is homologated according to ECE R55 or 94/20/CE and CRN standard and it is easy to handle and can be maintained very fast and cost efficient.
Technical data
| Flange size | 83x56 / 120x55 mm |
| D-Value | 30 kN |
| DC-Value | 30 kN |
| S-Load (Mass load) | 350 kg |
| V-Value | 18 kN |
| Weight | 5.8 - 6 kg |
| Homologation | ECE R55 (class S) |
| Drawbar eye standard | DIN 74054; ECE R55 (class S) |
Product information
The V.ORLANDI GA38 coupling series are semi-automatic drawbar couplings that allow up to 90° steering angle and up to ± 25° vertical oscillation. It is widely used for towing small trailers in the Van and Bus sector.
The main features consist of the following:
- All couplings in that series have a manual opening and an automatic closing mechanism.
- All GA38 couplings are homologated according to ECE R55 and 94/20/CE standard as “class S” as well as CRN.
- The opening lever can be ordered mounted either upwards or downwards.
Recommended use
Technologies
Rigid Technology
Learn more
Lever Release Technology
Learn more

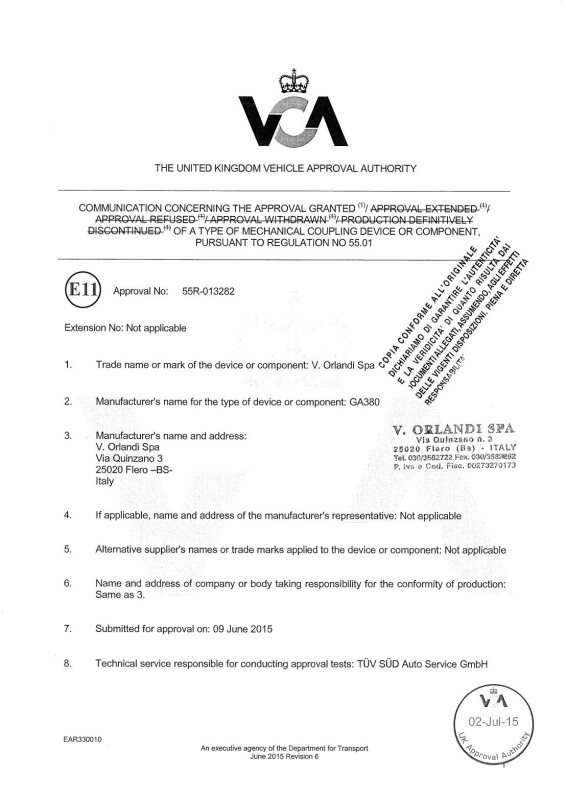

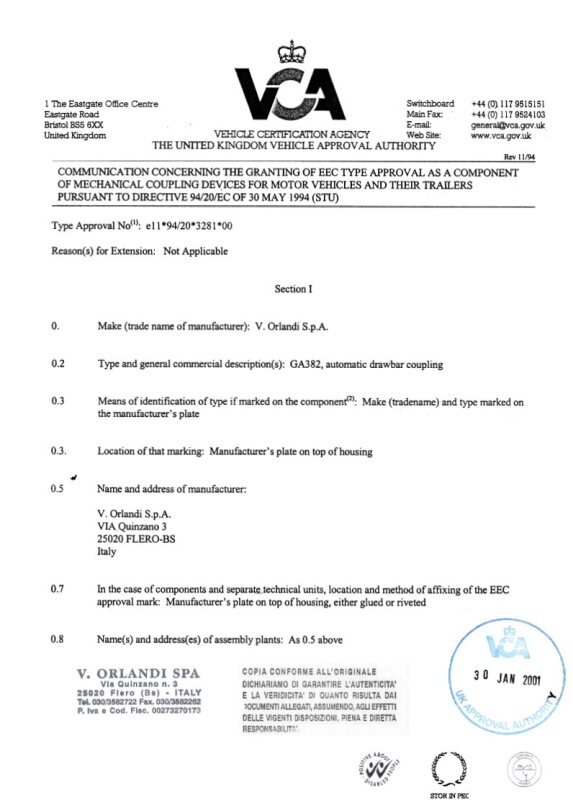

Literature
