V.ORLANDI E40

The V.ORLANDI E40 series is a 40 mm automatic drawbar coupling, which is designed for steering drawbar trailers and central axle trailers. This coupling series is homologated according to ECE R55 or 94/20/CE standard. It is easy to handle, can be maintained very fast and is cost efficient. All E40 couplings can be equipped with various sensors and remote options.

Technical data





Flange size 120x55 / 140x80 / 160x100 mm
D-Value 70 – 150 kN
DC-Value 70 – 100 kN
S-Load (Mass load) 700 – 1000 kg
V-Value 28 – 42 kN
Weight 33 - 38 kg

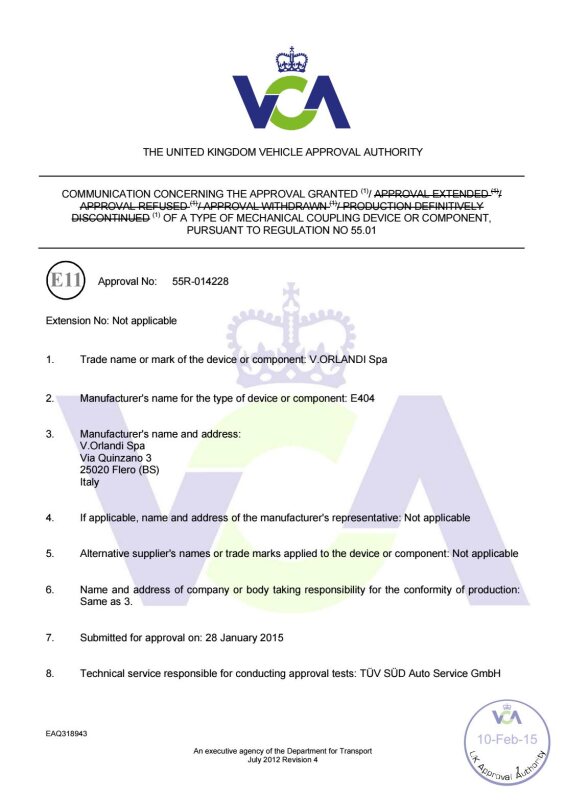

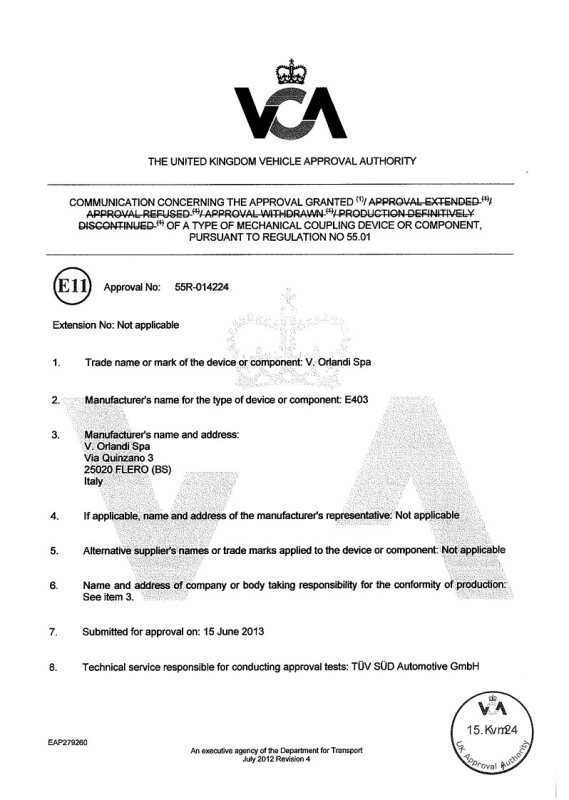

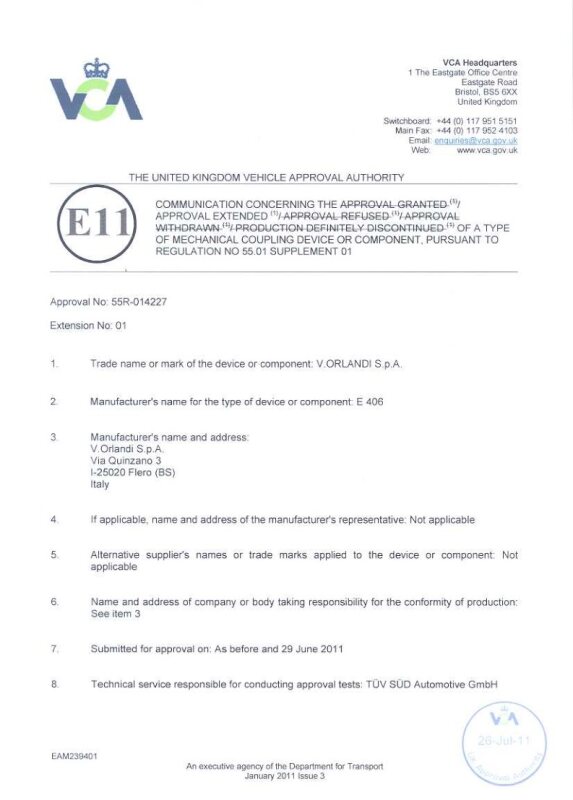

Homologation ECE R55 (class S) or 94/20/CE (class S)
Drawbar eye standard DIN 74054; ECE R55 (class S)



Product information

The V. ORLANDI E40 coupling series is composed by rigid couplings with a ±105° angle of rotation and ±20° vertical oscillation of the drawbar eye.

The main features consist of the following:

  • All couplings in that series have a manual opening and an automatic closing mechanism.
  • The pin can be opened at any angle between truck and trailer.
  • This series is homologated according to the ECE-R55 or 94/20/EC standard as “class S” and can be equipped with manual and pneumatic remote open system as well as several sensor indicators.
  • The opening lever can be mounted either upwards or downwards.
