HOLLAND FW0E70-T

The HOLLAND FW0E70-T 45t heavy-duty cast steel fifth wheel is a special air-operated version specifically designed for demanding harbor applications.

Technical data





Shutter: 3.5" / 2"
Imposed Load: 45,000 kg
D-Value: 240 / 165 kN
ECE Test no.: No approval according to ECE R555



Product information

The HOLLAND FW0E70-T fifth wheel was developed specifically for harsh port applications and is in continuous use around the world, 24 hours a day.

 The main features are:

  • Cast from high quality steel

Designed for high imposed loads and a long service life

Literature

Document Thumbnail

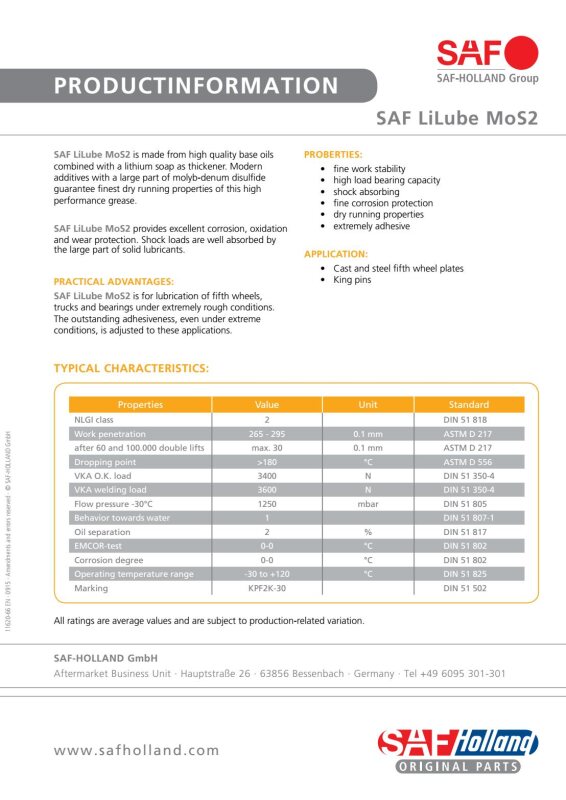

Product Information - Lubricants
PDF / 37.34 KB
Document Thumbnail

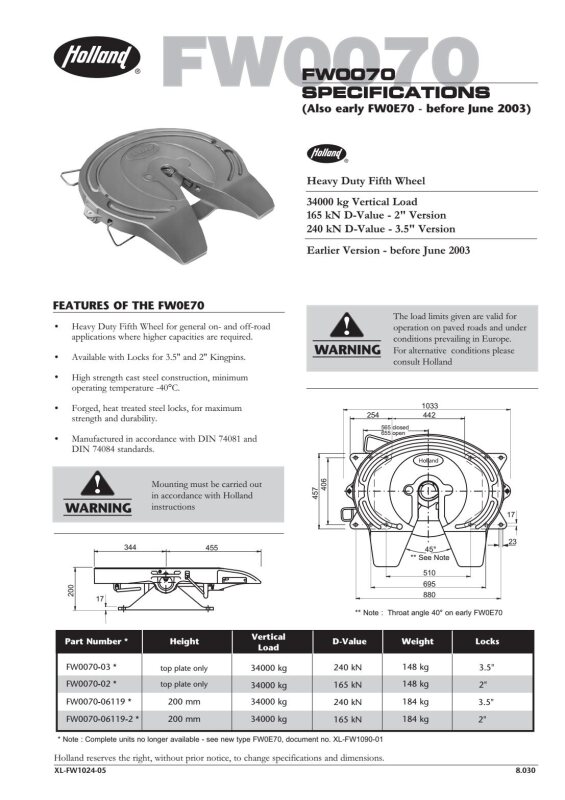

Parts list - Fifth Wheels
PDF / 283.12 KB
Document Thumbnail

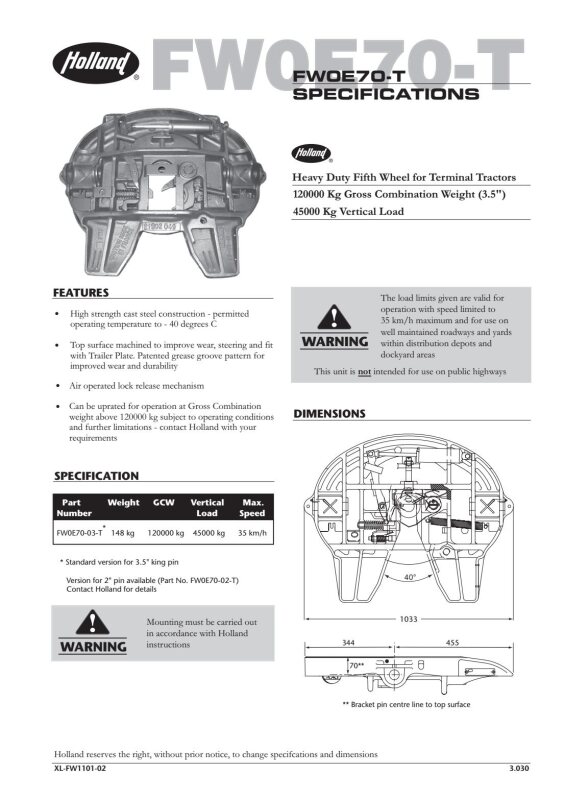

Parts list - Fifth Wheels
PDF / 311.19 KB
