V.ORLANDI E40

The V.ORLANDI E40 series is a 40 mm automatic drawbar coupling, which is designed for steering drawbar trailers and central axle trailers. This coupling series is homologated according to ECE R55 or 94/20/CE standard. It is easy to handle, can be maintained very fast and is cost efficient. All E40 couplings can be equipped with various sensors and remote options.

Product information

The V. ORLANDI E40 coupling series is composed by rigid couplings with a ±105° angle of rotation and ±20° vertical oscillation of the drawbar eye.

The main features consist of the following:

All couplings in that series have a manual opening and an automatic closing mechanism.
The pin can be opened at any angle between truck and trailer.
This series is homologated according to the ECE-R55 or 94/20/EC standard as “class S” and can be equipped with manual and pneumatic remote open system as well as several sensor indicators.
The opening lever can be mounted either upwards or downwards.

Technical data

Flange size	120x55 / 140x80 / 160x100 mm
D-Value	70 – 150 kN
DC-Value	70 – 100 kN
S-Load (Mass load)	700 – 1000 kg
V-Value	28 – 42 kN
Weight	33 - 38 kg

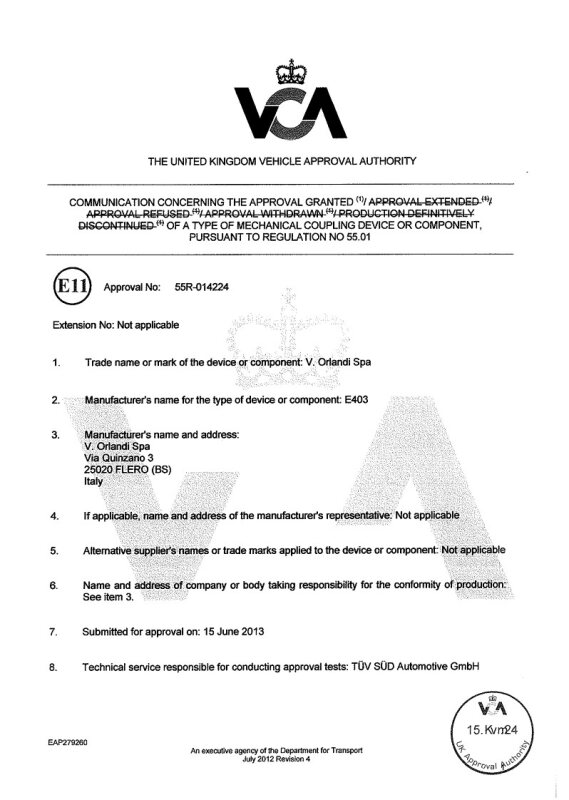

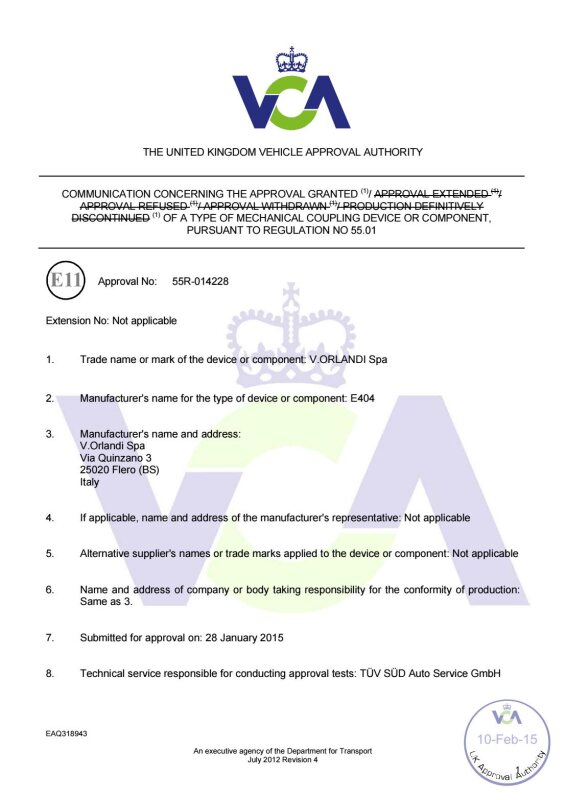

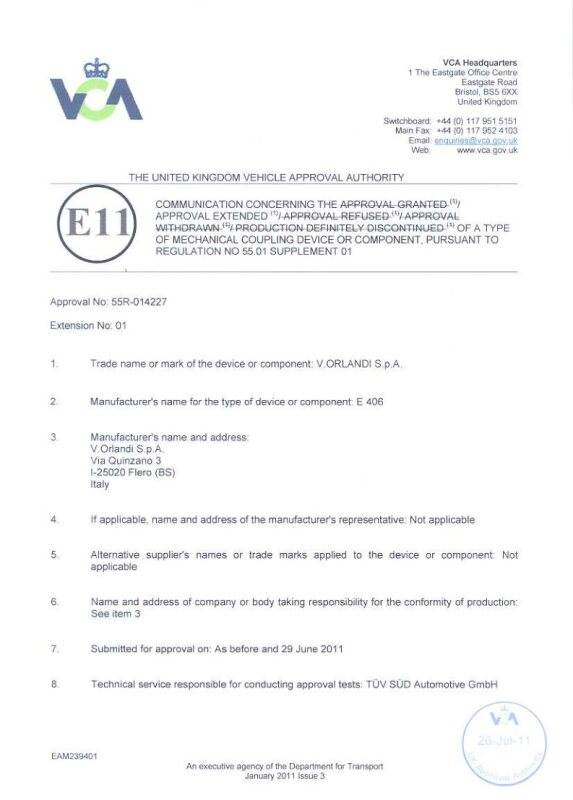

Homologation	ECE R55 (class S) or 94/20/CE (class S)
Drawbar eye standard	DIN 74054; ECE R55 (class S)

Technologies

Rigid Technology

Pin Release Technology

Sensor Technology

Plug & Play Technology
