HOLLAND Replaceable Series

The HOLLAND Replaceable Kingpins are easily installed and greatly reduce replacement costs. A weld-in housing solution for 2” and 3.5” bolt-in kingpins makes for easy replacement.

Product inquiry

Product information

The HOLLAND Replaceable Kingpins have four weld-in housing sizes to with four bolster plate thickness to accommodate both 2” and 3.5” kingpins. The HOLLAND Replaceable Kingpins are for SAE applications. These models, when properly installed, meet or exceed the performance requirements of the Truck and Trailer Manufacturers Association (TTMA) and the Society of Automotive Engineers (SAE).

The Replaceable Kingpins feature:

High impact resistance
Maximum wear resistance
Optimum strength and fatigue resistance
Ease of installation
High grade attachment bolts with safety wire
Housing accommodates both 2” and 3.5” Kingpins

Technical data

Material Kingpin:	AISI 8630H Alloy Steel
Material Housing:	AISI 4130H Alloy Steel
Hardness :	302-363 BHN
ADR D-Value rating:	200 kN (CRN 16673, 50 mm / CRN 16674, 90 mm)
Quality:	100% inspected for internal and external integrity

Literature

View all

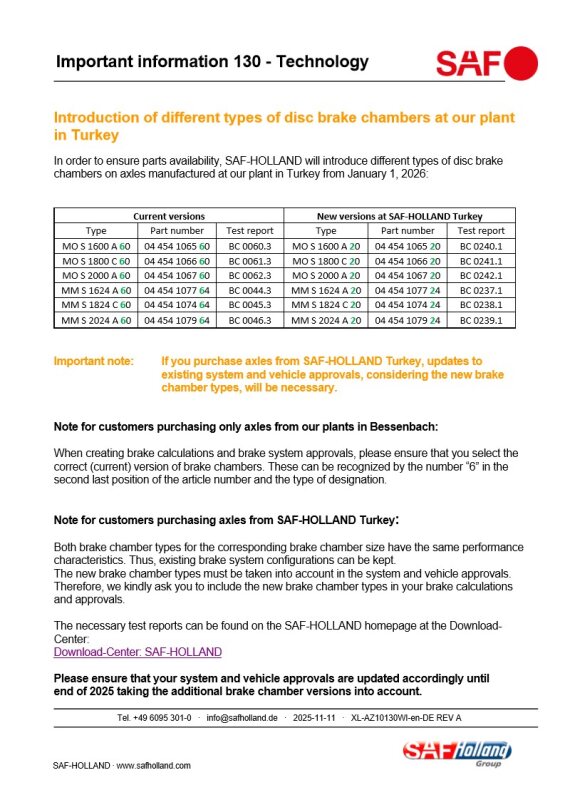

Important Information 130 REV B

pdf / 212.86 KB

Important information 130 - Technology

pdf / 211.55 KB

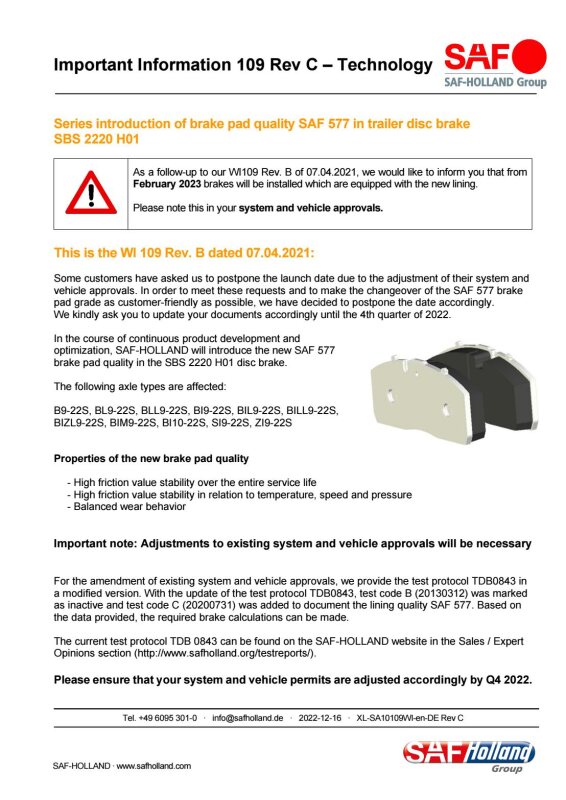

Important Information 109 Rev C – Technology

pdf / 171.35 KB

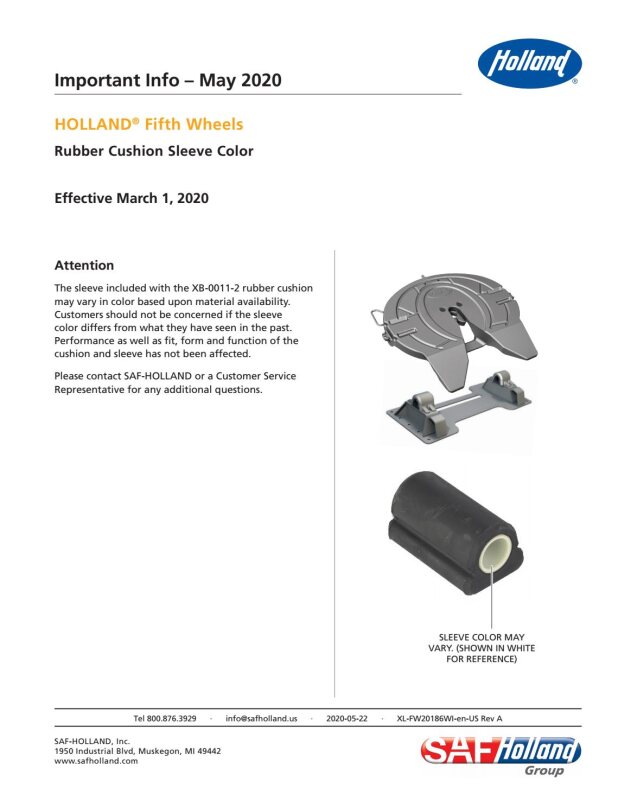

HOLLAND Fifth Wheels Rubber Cushion Sleeve Color

pdf / 733.15 KB

Important Info 69 - Service

pdf / 179.06 KB

Technical Bulletin

pdf / 994.16 KB

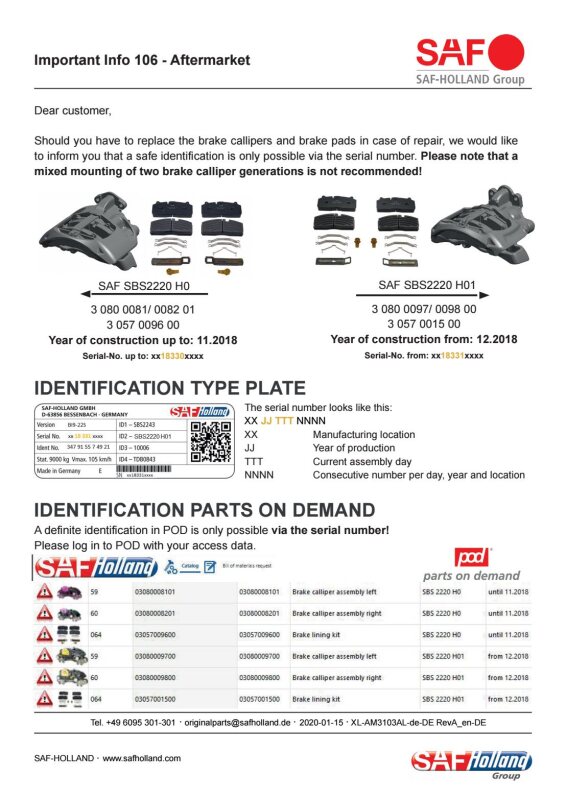

Important Info 106 - Aftermarket

pdf / 1.18 MB

Service Bulletin 50

pdf / 243.07 KB

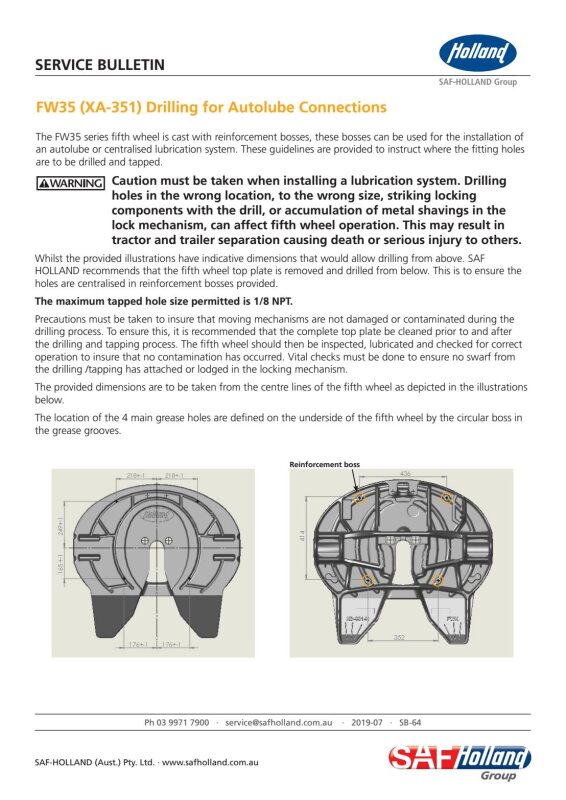

Service Bulletin 64

pdf / 221.54 KB

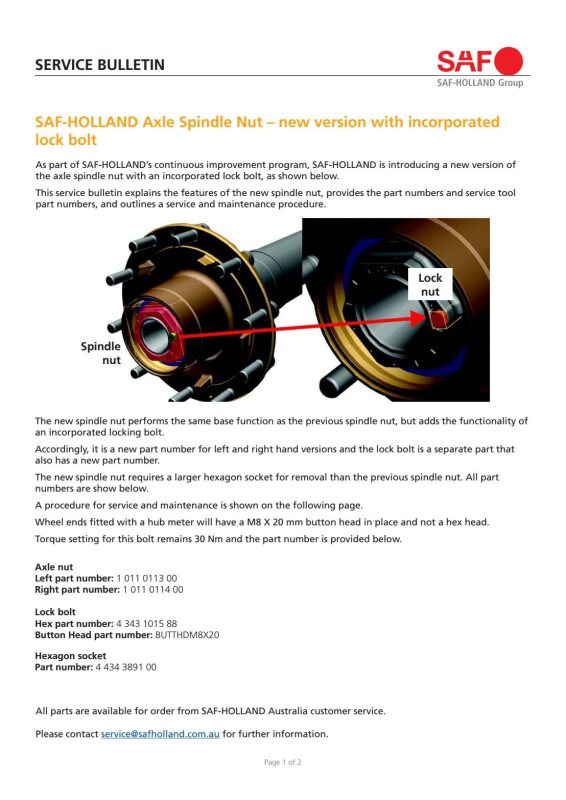

Service Bulletin 58 - SAF-HOLLAND Axle Spindle Nut

pdf / 309.85 KB

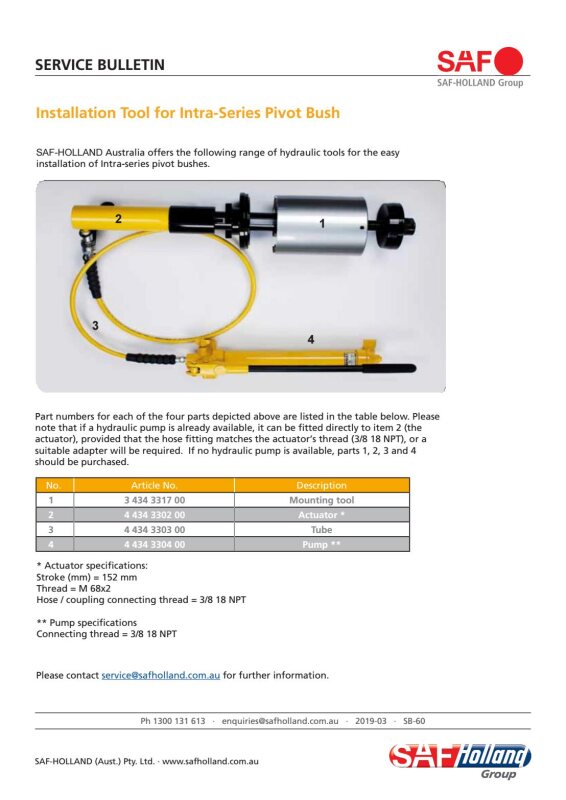

Service Bulletin 60

pdf / 239.62 KB

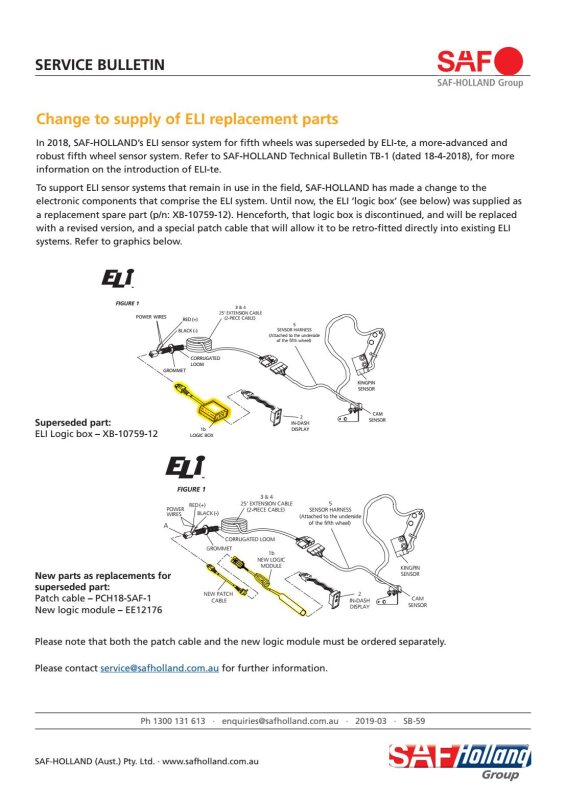

Service Bulletin 59

pdf / 340.18 KB

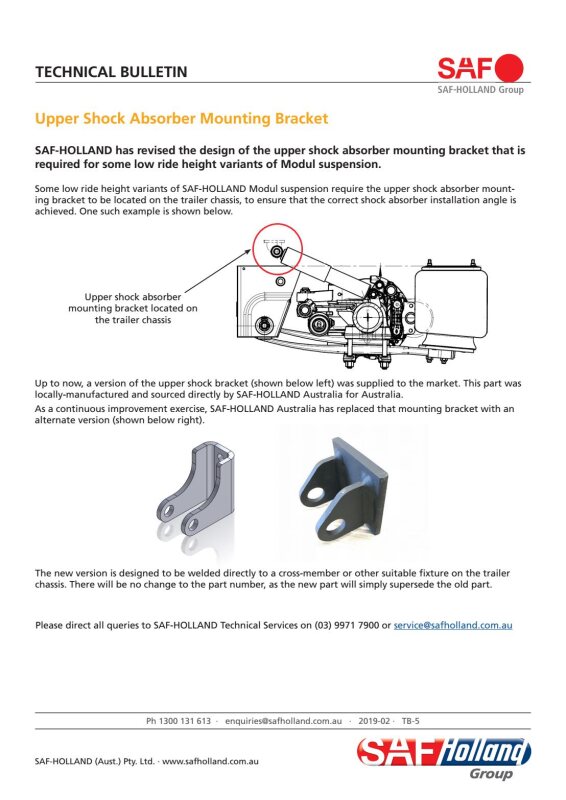

Technical Bulletin 5

pdf / 214.72 KB

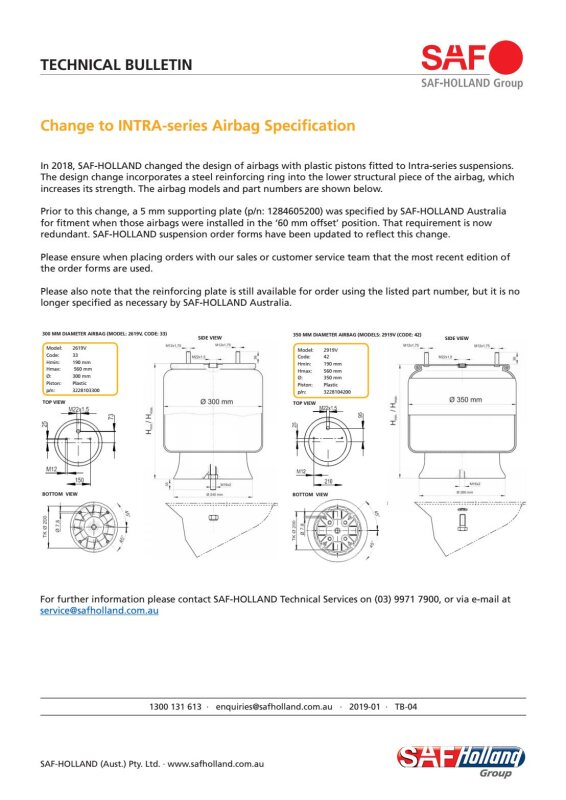

Technical Bulletin 4

pdf / 956.98 KB

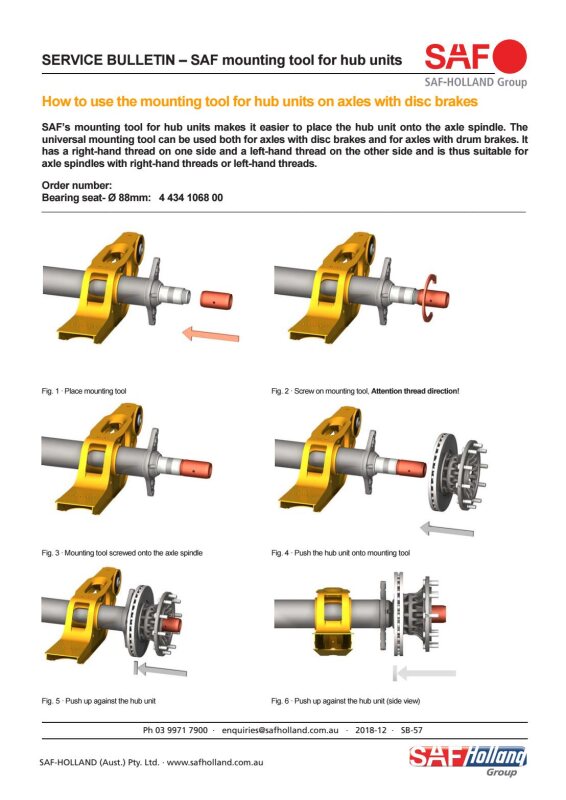

Service Bulletin 57 - SAF Mounting Tool For Hub Units

pdf / 245.39 KB

Service Bulletin 53 - Service Advice

pdf / 358.57 KB

Important Info 99 - Technology

pdf / 160.18 KB

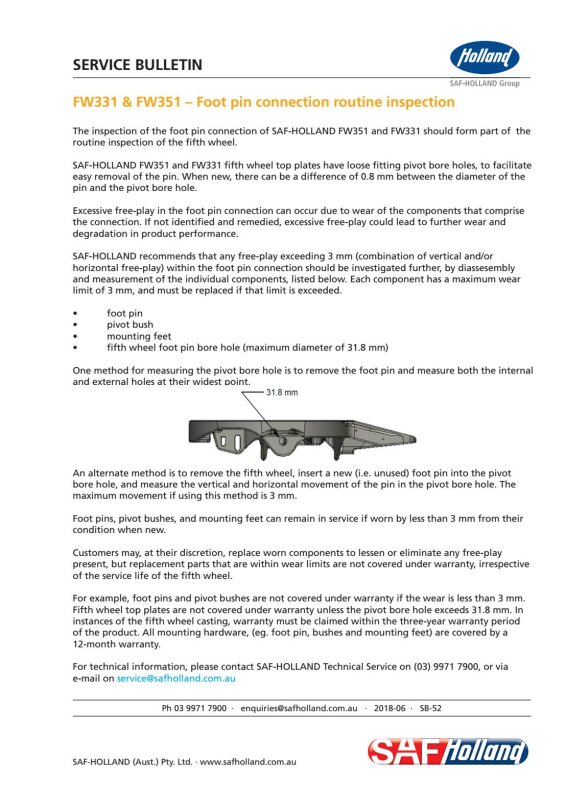

Service Bulletin 52 - FW331 & FW351

pdf / 765.73 KB

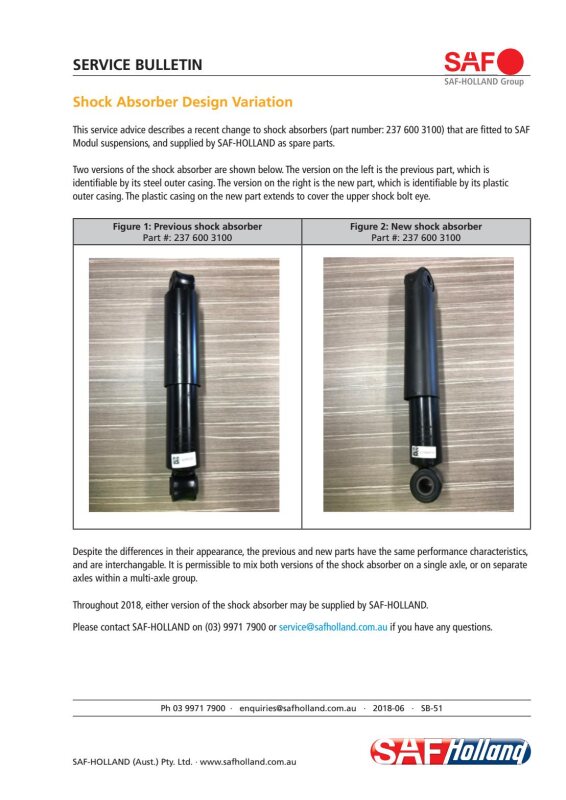

Service Bulletin 51

pdf / 815.35 KB

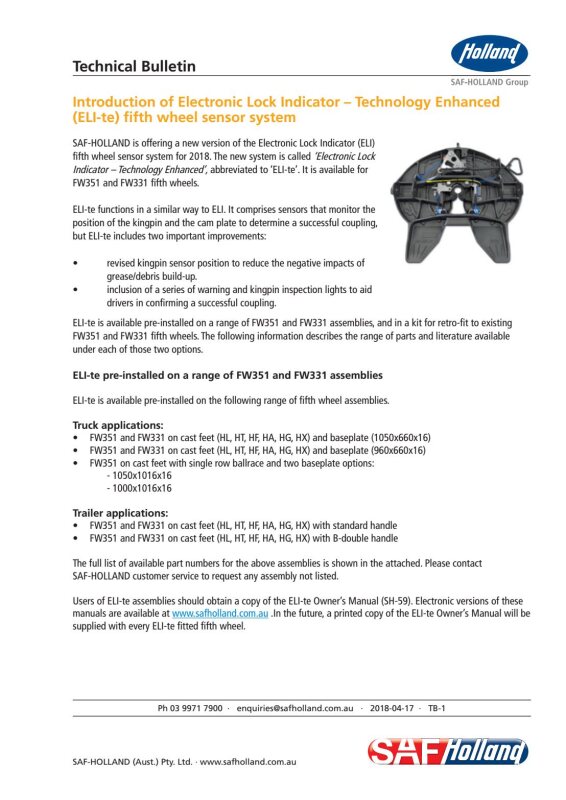

Technical Bulletin 1

pdf / 2.04 MB

Technical Bulletin 6

pdf / 1.23 MB

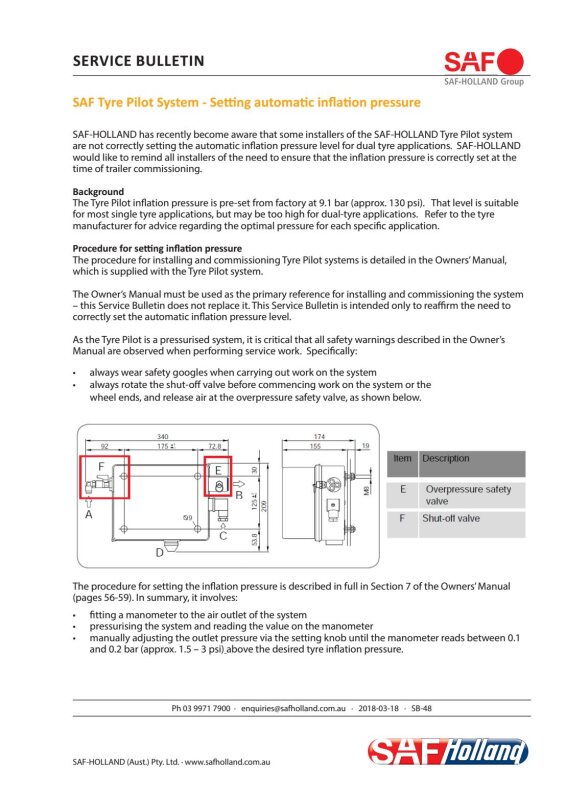

Service Bulletin 48 - SAF Tyre Pilot System

pdf / 1.48 MB

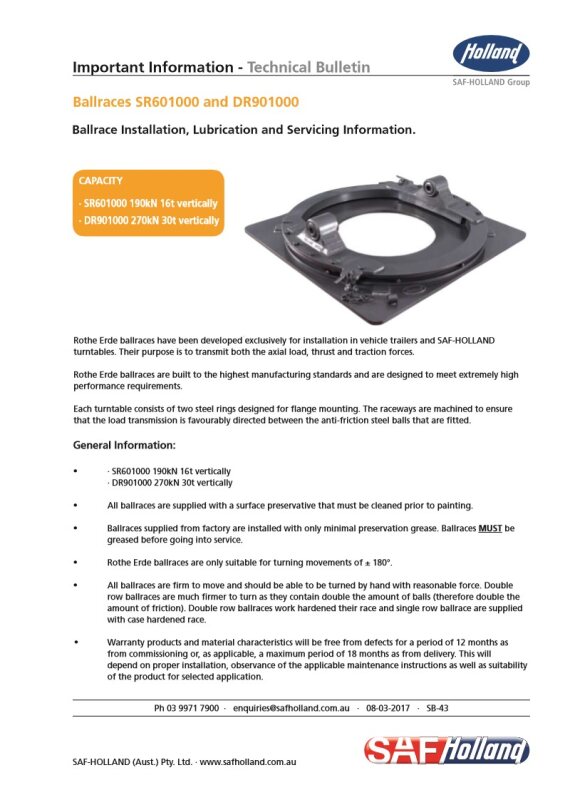

Service Bulletin 43

pdf / 1.29 MB

Important Info 94 – Sales

pdf / 208.20 KB

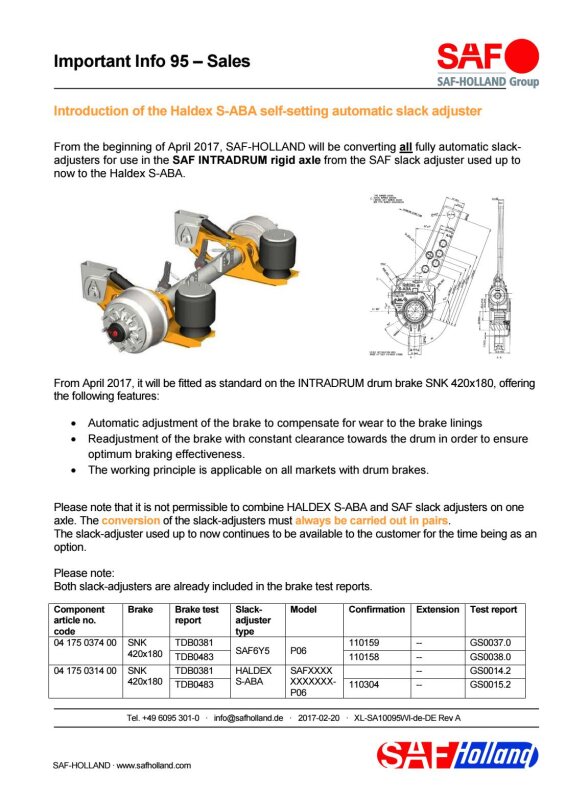

Important Info 95 – Sales

pdf / 136.79 KB

Important Info 93 - Technology

pdf / 92.67 KB

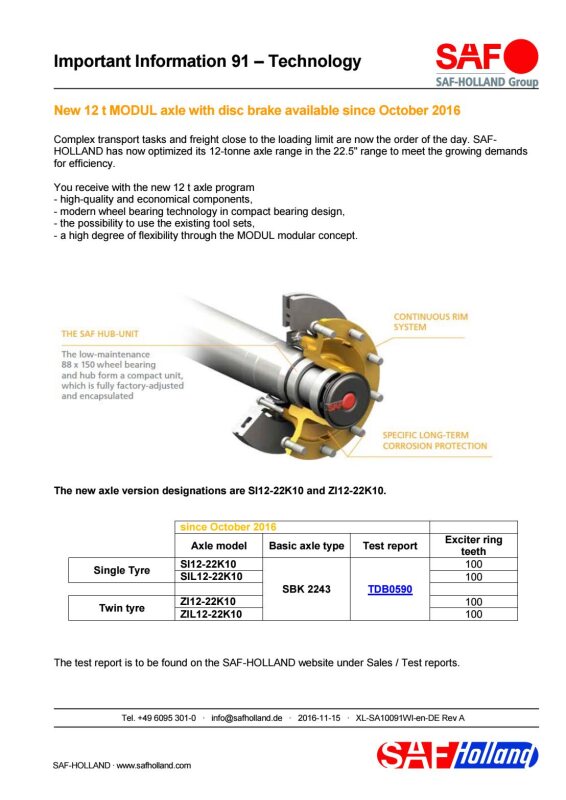

Important Info 91 – Technology

pdf / 146.85 KB

Important Info 90 – Technology

pdf / 109.59 KB

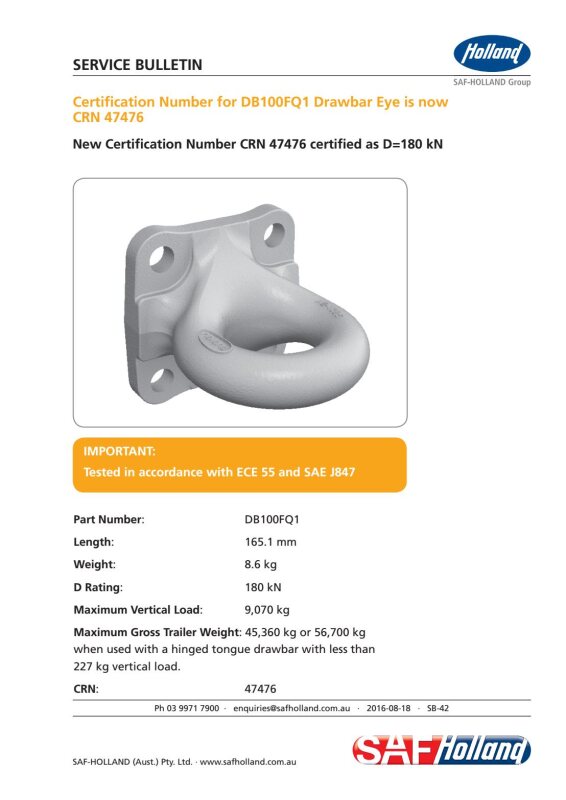

Service Bulletin 42

pdf / 733.84 KB

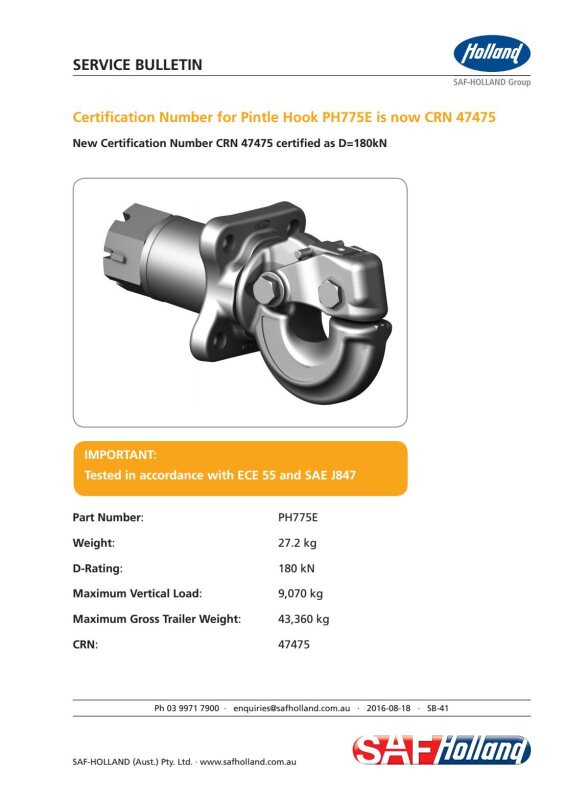

Service Bulletin 41

pdf / 812.97 KB

Important Info 89 – Technology

pdf / 145.35 KB

Important Info 86 – Technology

pdf / 109.87 KB

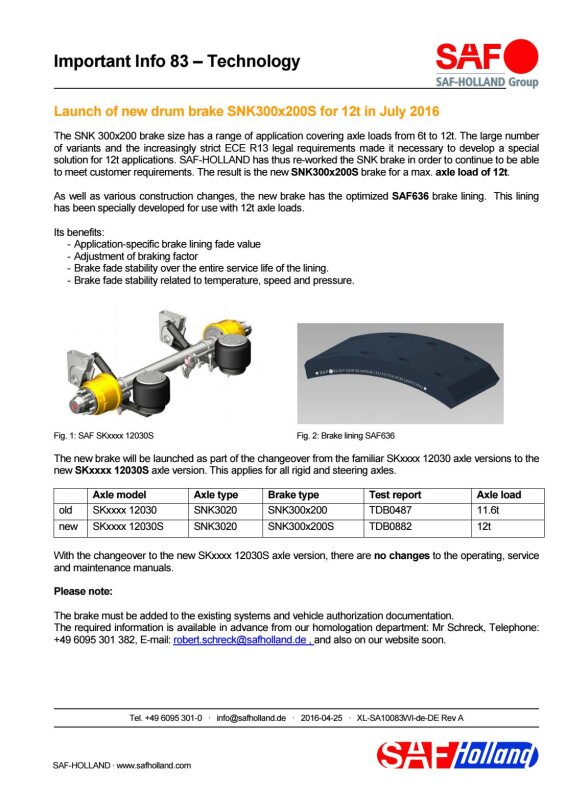

Important Info 83 - Technology

pdf / 52.32 KB

Important Info 83 – Technology

pdf / 85.13 KB

Important Info 80 – Technology

pdf / 66.35 KB

Important Info 79 – Aftermarket

pdf / 1.36 MB

Important Info 78 – Sales

pdf / 124.15 KB

Important Info 77 - Technology

pdf / 251.83 KB

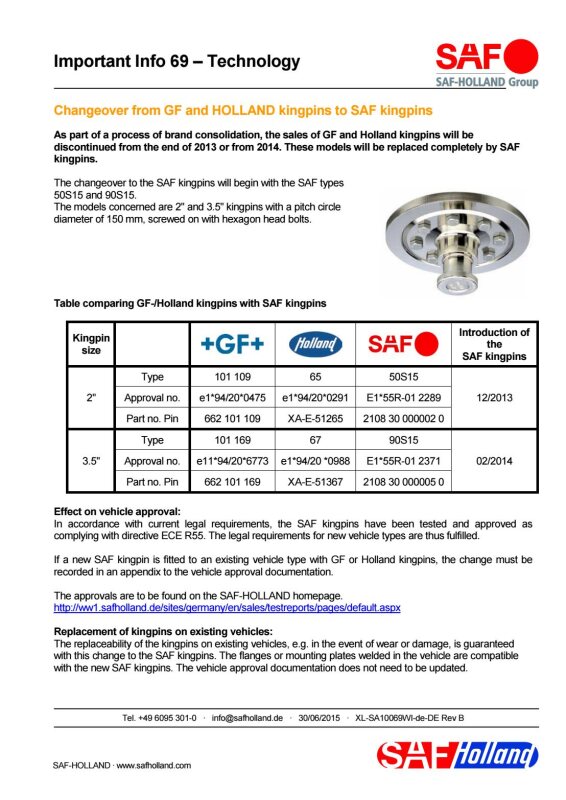

Important Info 69 – Technology

pdf / 91.03 KB

Important Info 76 – Technology

pdf / 112.27 KB

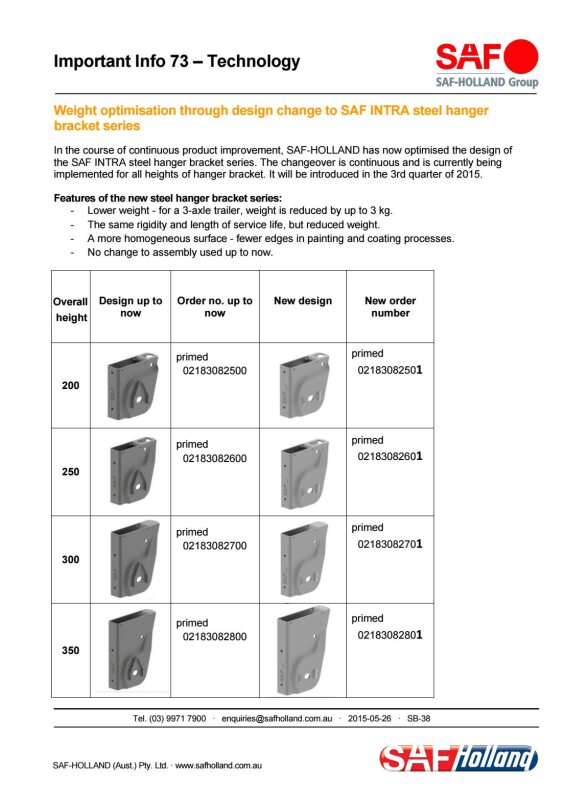

Important Info 73 – Technology

pdf / 455.29 KB

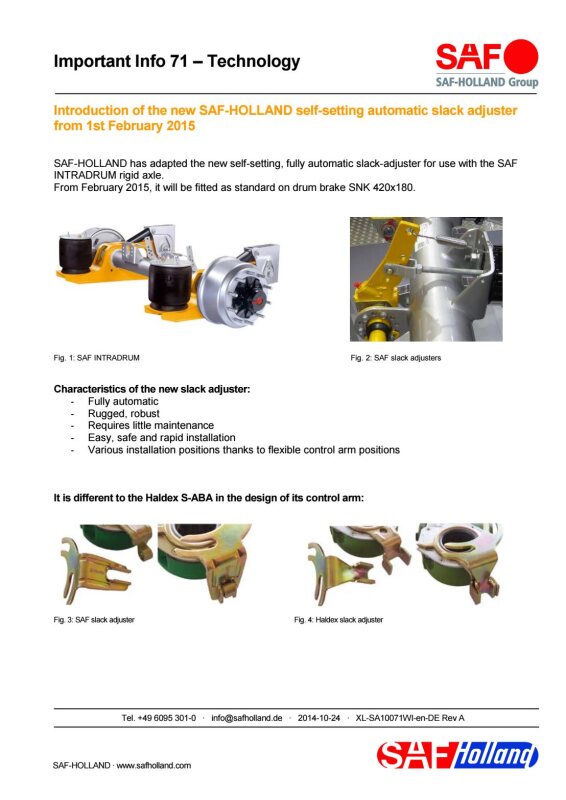

Important Info 71 – Technology

pdf / 203.55 KB

Important Info 70 – Technology

pdf / 69.17 KB

Important Info 68 RevC - Aftermarket

pdf / 216.19 KB

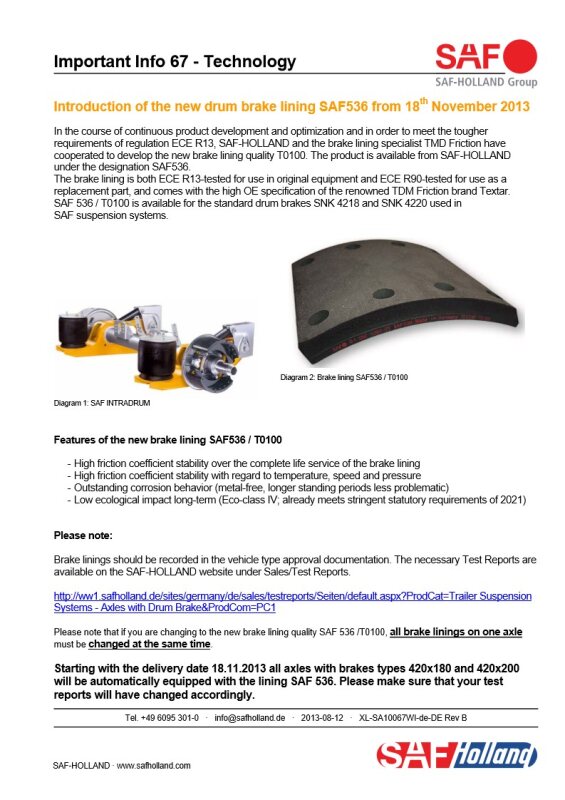

Important Info 67 RevB - Technology

pdf / 78.38 KB

Important Info 66 - Sales

pdf / 163.99 KB

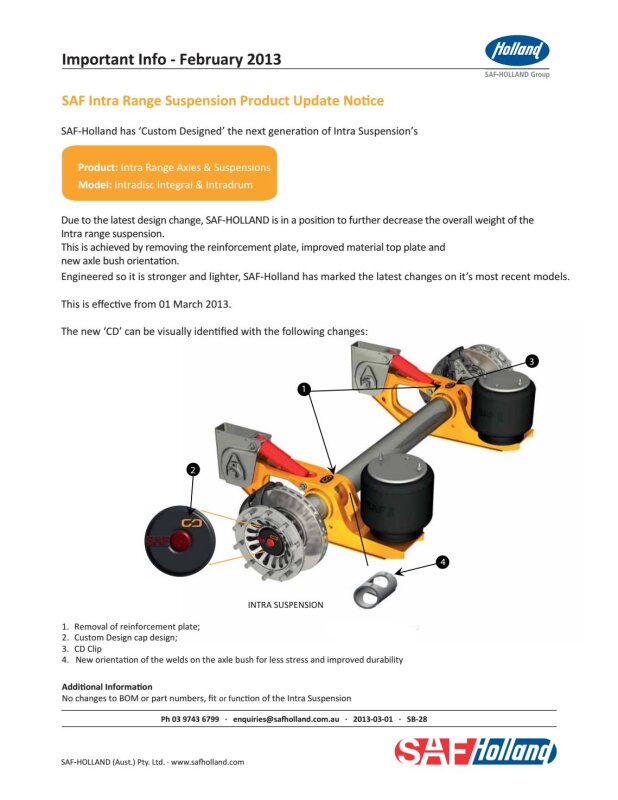

Service Bulletin 28
