V.ORLANDI DE70

The V.ORLANDI DE70 is a manual mixed Pin & Ball coupling, which is designed for steering drawbar trailers and central axle trailers up to 3.5 tons.

This coupling is homologated according to ECE R55 standard and is easy to handle, can be maintained very fast and is cost efficient.

Product inquiry

Product information

The V.ORLANDI DE70 is a manual mixed coupling with a 50mm ball hitch and a 29mm pin coupling, which is designed for small steering drawbar trailers and central axle trailers up to 3.5 tons.

The main features consist of the following:

It can be used with a wide range of drawbar eyes.
The DE70 is homologated according to ECE R55 standard as “class A50X” for the pin execution and “class S” for the ball execution.

Technical data

Flange size	90 mm
D-Value	23 kN
DC-Value	23 kN
S-Load (Mass load)	150 kg
V-Value	-
Weight	3.9 kg
Homologation	ECE R55 (class A50X / S)
Drawbar eye standard	DIN 74054; DIN 74053; VG 74059; CUNA 438-40 ECE R55 (class B50); ECE R55 (class S)

Literature

View all

Type-0 test to SBS2220 with 3/2-axle semitrailer

pdf / 4.16 MB

Type-0 test to SBS2224H0 with 3/2/1-axle semitrailer

pdf / 8.09 MB

Disc brake chamber double-diaphragm 18/24 / Scheibenbremszylinder Doppel-Membran 18/24

pdf / 1.45 MB

Disc brake chamber diaphragm 16 / Scheibenbremszylinder Membran 16

pdf / 1.33 MB

Disc brake chamber double-diaphragm 16/24 / Scheibenbremszylinder Doppel-Membran 16/24

pdf / 1.42 MB

Disc brake chamber diaphragm 20 / Scheibenbremszylinder Membran 20

pdf / 1.33 MB

Type-0 test to SBK2243K01 with 3/2/1-axle semitrailer

pdf / 3.62 MB

Disc brake SBK1937 - Test report TDB0606 / Scheibenbremse SBK1937 - Prüfprotokoll TDB0606

pdf / 1.70 MB

Fifth wheel coupling SK-S36.20H - Approval E11*55R02*1381-Extension 04

pdf / 174.47 KB

Type-0 test to SBS1920H0 with 3/2/1-axle semitrailer

pdf / 6.91 MB

Fifth wheel coupling SK-S36.20 - Approval E1*55R01*0218-Extension 08

pdf / 151.52 KB

Disc brake SBK2243K01 - Test report 36101814 / Scheibenbremse SBK2243K01 - Prüfprotokoll 36101814

pdf / 1.50 MB

Disc brake SBK2243K01 - Test report 36110303 / Scheibenbremse SBK2243K01 - Prüfprotokoll 36110303

pdf / 1.37 MB

TIRE PILOT I.Q. - Test report R141 070004-00-Corr.01

pdf / 2.64 MB

TIRE PILOT I.Q. - control box - type approval E8*10R06/02*14161*01

pdf / 252.49 KB

Disc brake SBS2220 - Test report TDB0843 / Scheibenbremse SBS2220 - Prüfprotokoll TDB0843

pdf / 3.04 MB

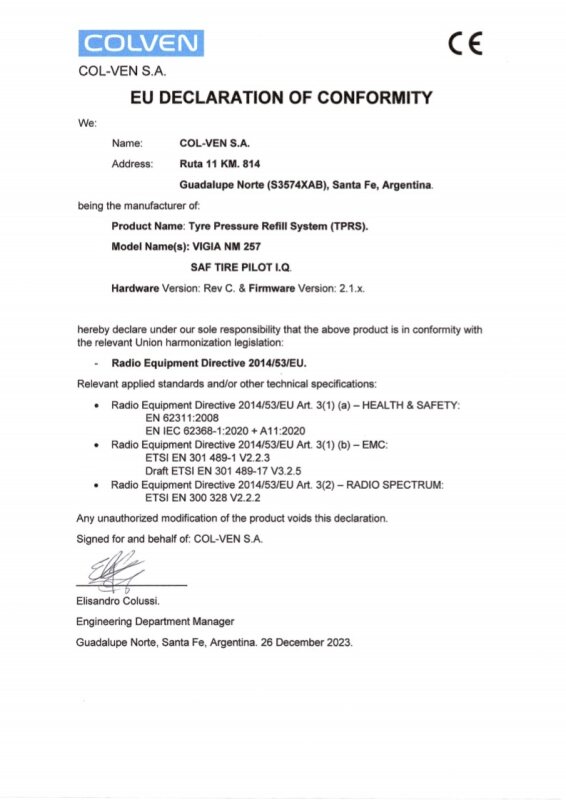

TIRE PILOT I.Q. - Kontrollbox - EU DECLARATION OF CONFORMITY EN
