NEWAY AD

The NEWAY AD Drive Axle Air-Ride Suspension is 100% off-highway approved for severe-duty drive axle truck and tractor vocational applications.

Product information

The NEWAY AD Air Ride Suspension is a non-torque reactive parallelogram design with standard torque and track rods. The AD is approved for 100% off-highway use and designed to take on the most rugged vocational vehicle applications.

The AD Air Ride Suspension features:

  • Black Armour Corrosion Protection

  • Integral transverse beam for predictable roll stiffness

  • Bar-pin or optional thru-bolt axle connections

  • Single, tandem and tridem configurations available

  • Superior traction and braking performance

Technical data





Capacity per Axle: up to 30,000 lbs. (13.6 t)
Ride Heights: 8.75 - 12”
Literature
View all
Document Thumbnail

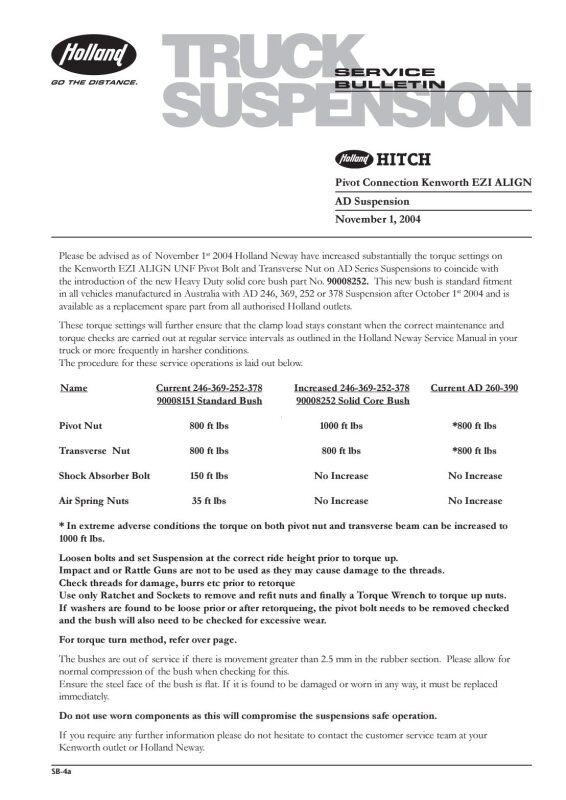

Service Bulletin 04
PDF / 155.52 KB
Document Thumbnail

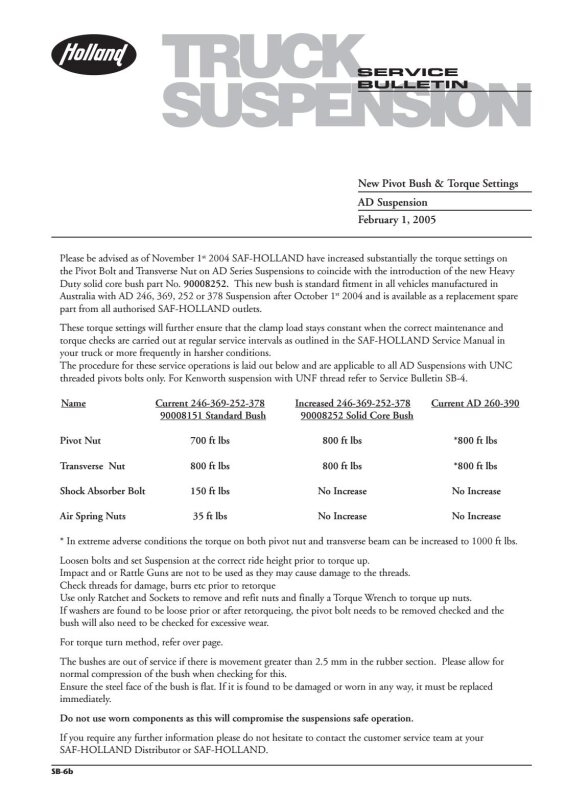

Service Bulletin 06
PDF / 154.33 KB
Document Thumbnail

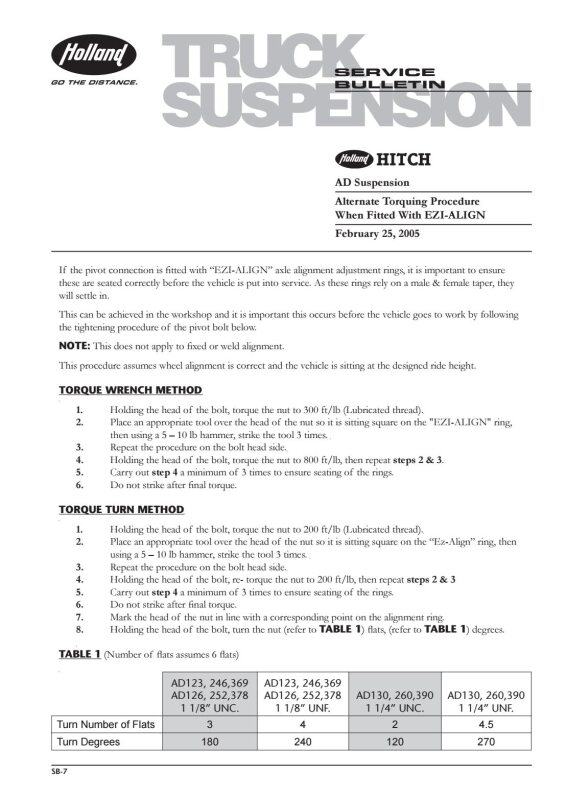

Service Bulletin 07
PDF / 184.79 KB
